Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Digital output type | Transistor |
| Digital output channels | 4 |
| Rated load voltage | 24 V DC; from power module |
| Rated output current | 0.5 A per channel |
| Signal "1" output current range | 7 mA to 600 mA |
| Short-circuit protection | Yes |
| Output delay | 100 μs maximum from "0" to "1"; 300 μs maximum from "1" to "0" with a resistive load |
| Diagnostics | Short-circuit diagnostics; red Group error SF LED; green status LED per channel |
| Potential separation | No between channels; yes between channels and backplane bus |
Applications
- Digital output control: Controls a digital input through its digital outputs.
- Redundant load control: Supports redundant control of a load with two outputs per module.
Key Features
- Digital outputs: 4 transistor digital outputs with 0.5 A rated output current per channel and a permissible range of 7 mA to 600 mA for signal "1".
- Load voltage: Rated load voltage L+ is 24 V DC from the power module.
- Output protection and diagnostics: Short-circuit protection and diagnostics are provided; the red Group error SF LED indicates a group error, and each channel has a green digital-output status LED.
- Output timing: Output delay is up to 100 μs from "0" to "1" and up to 300 μs from "1" to "0" with a resistive load.
- Electrical isolation: The digital outputs are not potential-separated between channels, but are potential-separated from the backplane bus; isolation is tested with 500 V DC.

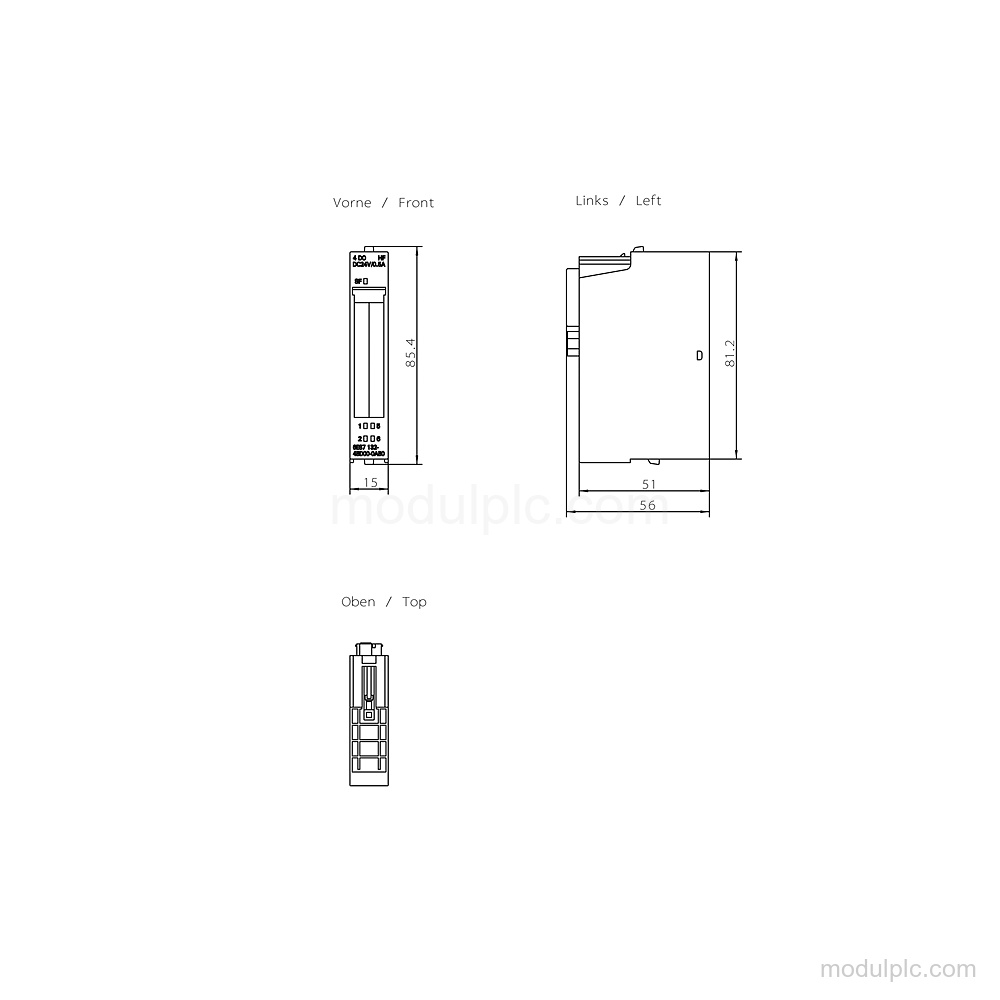

- Dimensions and weight: The module is 15 mm wide, 81 mm high, and 52 mm deep, with an approximate weight of 40 g.
Frequently Asked Questions
1. How many digital outputs does Siemens 6ES7132-4BD00-0AB0 have?
It has 4 transistor digital outputs.
2. What load voltage does 6ES7132-4BD00-0AB0 use?
Its rated load voltage L+ is 24 V DC from the power module.
3. What output current is supported?
The rated output current for signal "1" is 0.5 A per channel, with a permissible range of 7 mA to 600 mA.
4. What diagnostics are available?
It has short-circuit diagnostics, a red Group error SF LED, and a green digital-output status LED per channel.
5. What are the module dimensions and weight?
The module is 15 mm wide, 81 mm high, and 52 mm deep, with an approximate weight of 40 g.
