Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Digital output type | Source output (PNP, current-sourcing) |
| Digital output channels | 2 |
| Load voltage L+ | 24 V DC; From power module |
| Rated output current | 0.5 A |
| Output current permissible range | 7 mA to 600 mA for signal "1" |
| Short-circuit and wire-break diagnostics | Yes; channel by channel |
| Backplane bus isolation | Yes; digital outputs to backplane bus |
| Power loss | 0.4 W, typ. |
| Product lifecycle | Product cancellation |
Applications
- Digital output control: Controls digital inputs and connected loads through 2 source outputs.
- Diagnostic signal acquisition: Provides channel-by-channel wire-break and short-circuit diagnostics with status indication.
Key Features
- Digital outputs: 2 source outputs (PNP, current-sourcing) with 24 V DC load voltage from the power module and 0.5 A rated output current.
- Output protection and diagnostics: Short-circuit protection, channel-by-channel short-circuit and wire-break diagnostics, and readable diagnostic information.
- Status and substitute values: Substitute values are connectable as 0/1; LED indicators show group error SF in red and digital output status in green.
- Electrical isolation: Digital outputs are isolated from the backplane bus, but not between the channels; isolation is tested with 500 V DC.
- Output timing and switching: Output delay with resistive load is max. 100 μs from "0" to "1" and max. 400 μs from "1" to "0".
- Dimensions and lifecycle: Dimensions are 15 mm wide, 81 mm high, and 52 mm deep; product lifecycle: Product cancellation.
Frequently Asked Questions
1. What type of outputs does 6ES7132-4BB01-0AB0 have?
It has 2 source outputs (PNP, current-sourcing).
2. What load voltage and output current does the module support?
Load voltage L+ is 24 V DC from the power module, and the rated output current is 0.5 A.
3. Does 6ES7132-4BB01-0AB0 provide wire-break and short-circuit diagnostics?
Yes. Wire-break and short-circuit diagnostics are available channel by channel.

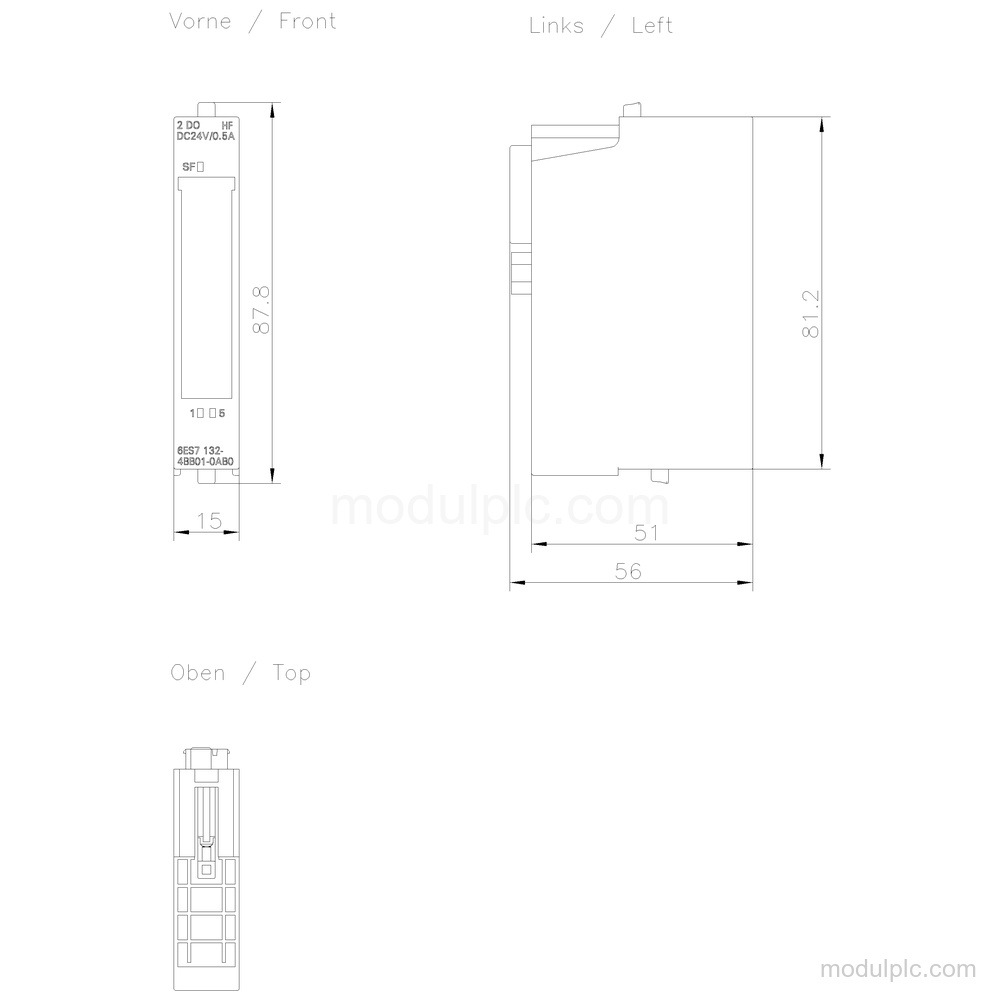

4. What are the module dimensions?
The module is 15 mm wide, 81 mm high, and 52 mm deep.
