Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | IPC847E |

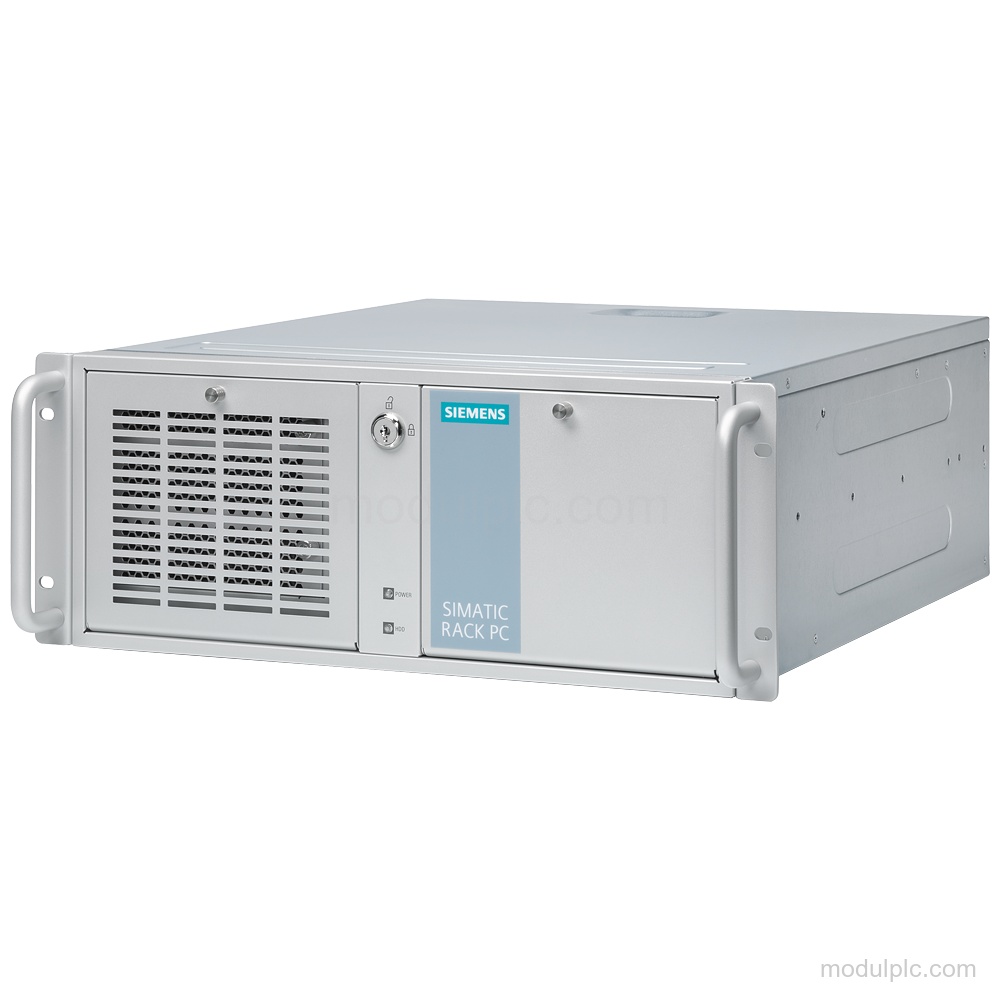

| Design | Rack PC, 19", 4U |
| Processor | Intel Core i5-8500 (6C/6T, 3.0 (4.1) GHz, 9 MB cache, TB, VT-d, AMT) |
| Main memory | 16 GB DDR4 SDRAM (2x 8 GB), Dual Channel |
| Storage | 1 TB 3.5" SATA HDD; 480 GB 2.5" SATA SSD |
| Ethernet interfaces | 3x Gigabit Ethernet, RJ45 |
| Video interfaces | 2x DisplayPort and 1x DVI-D onboard |
| Supply voltage | 100/240 V AC, 50 / 60 Hz |
Applications
- Temperature and fan monitoring: The IPC847E supports temperature and fan monitoring, with optional monitoring function via network.
Key Features
- Rack PC form factor: 19", 4U Rack PC for horizontal or vertical installation; prepared for telescopic rails, with a removable external 19" mounting bracket.
- Processor and memory: Intel Core i5-8500 with 6C/6T, 3.0 (4.1) GHz, 9 MB cache, TB, VT-d, and AMT; 16 GB DDR4 SDRAM as 2x 8 GB, Dual Channel.
- Storage configuration: 1 TB 3.5" SATA HDD and 480 GB 2.5" SATA SSD; the selected configuration is without an M.2 SSD.
- Interfaces: 3x Gigabit Ethernet with RJ45, 2x DisplayPort, 1x DVI-D, 1x COM1, audio, 4x USB 3.1, 2x rear USB 3.1 Type C, 2x front USB 3.0, and 1x internal USB 3.1.
- Monitoring and protection: Temperature and fan monitoring, Watchdog, card retainer, and front IP41 protection; rear protection is IP20.
- Power supply: 100/240 V AC industrial power supply unit with 50 / 60 Hz line frequency.
Frequently Asked Questions
1. What is the form factor of the 6AG4114-3DP02-0CX3?
It has a 19", 4U Rack PC design and supports horizontal or vertical installation. It is prepared for telescopic rails, and the 19" mounting bracket can be removed externally.
2. Which interfaces are included in this configuration?
It has 3x Gigabit Ethernet with RJ45, 2x DisplayPort, 1x DVI-D, 1x COM1, audio, 4x USB 3.1, 2x rear USB 3.1 Type C, 2x front USB 3.0, and 1x internal USB 3.1.
3. Which components are not included?
It is without HW extension, without expansions, and without an M.2 SSD in the selected configuration.
