Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | IPC347G |

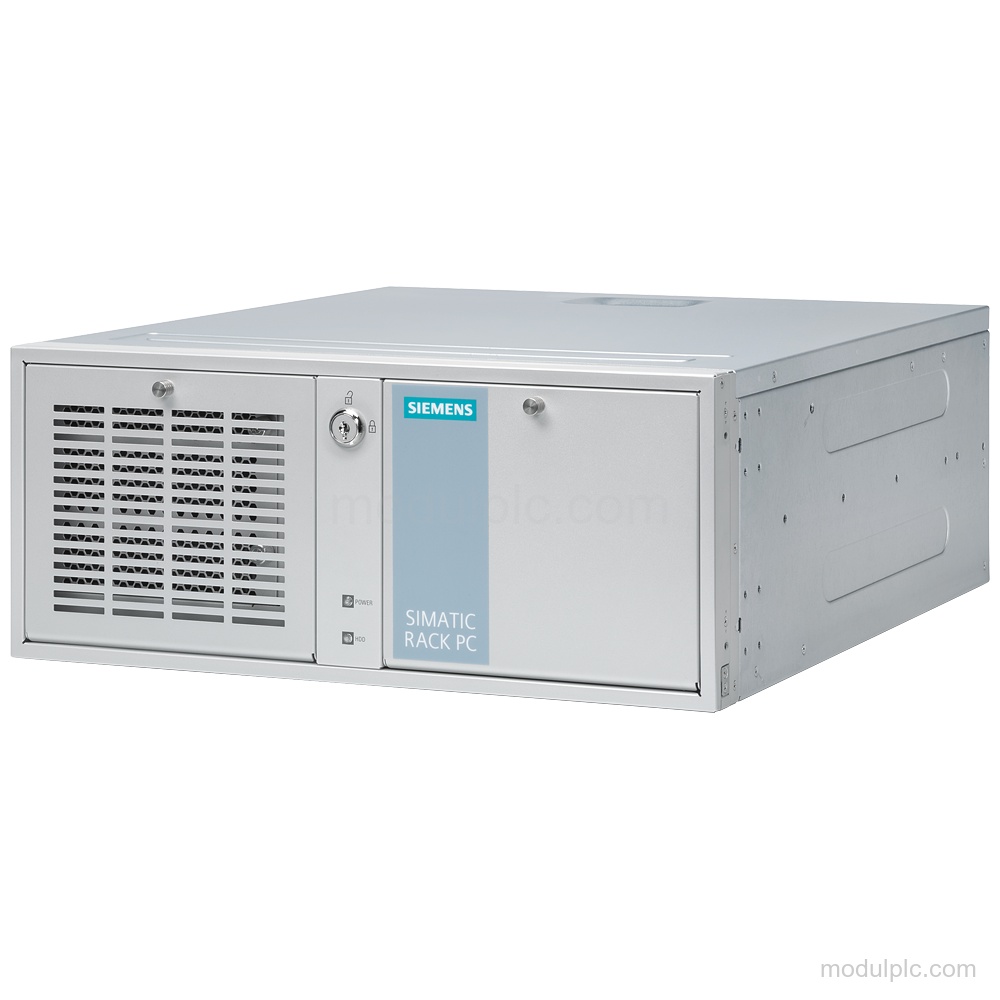

| Design | Rack PC, 19", 4U |
| Mounting | For horizontal and vertical mounting |
| Supply voltage | 100 – 240 V AC |
| Processor | Intel Pentium G4400 |
| Main memory | 4 GB (pre-installed), support up to 32 GB |
| Hard disk | 1 TB HDD |
| Industrial Ethernet interfaces | 2 |
| Serial interfaces | 2x COM ports (RS 232, RS 422, RS 485) and 2x COM pin header |
| Protection | IP20 |
Key Features
- Rack PC form factor: SIMATIC IPC347G Rack PC with 19-inch, 4U design for horizontal and vertical mounting.
- Processor and storage: Intel Pentium G4400 processor, Intel H110 chipset, 4 GB pre-installed DDR4 memory and 1 TB internal HDD.
- Ethernet interfaces: 2 industrial Ethernet interfaces and 2 PROFINET interfaces, supporting 100 Mbps and 1000 Mbps.
- Serial and video interfaces: 2x COM ports for RS 232, RS 422 and RS 485, plus 2x COM pin header, 1x DisplayPort and 1x VGA.
- USB and front-panel status: 2x USB on the front, 4x USB on the rear side and 2x internal USB; LED status display for POWER and HDD.
- Power and operating system: 100 – 240 V AC supply, Windows 10 IoT Enterprise 2019 LTSC, 64 bit, MUI, without line cable.
Frequently Asked Questions
1. What is the design of Siemens 6AG4012-2AA10-0AX0?
It is a SIMATIC IPC347G Rack PC with a 19-inch, 4U design for horizontal and vertical mounting.
2. Which interfaces does this Rack PC have?
It has 2 industrial Ethernet interfaces, 2 PROFINET interfaces, 2x COM ports for RS 232, RS 422 and RS 485, 1x DisplayPort, 1x VGA, and USB interfaces.
3. What are the supply and operating system details?
Supply is 100 – 240 V AC. The pre-installed operating system is Windows 10 IoT Enterprise 2019 LTSC, 64 bit, MUI. It is without line cable.
