Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Screen diagonal | 24 in |
| Image resolution | 1920 x 1080 |
| Touch screen | Projective-capacitive multi-touch |
| Detachable distance | 100 m; HDBaseT protocol |
| Video interface | DisplayPort V1.2 |
| USB interfaces | 2; USB 2.0 Type A |
| Supply voltage | 24 V DC; permissible range 19.2 V to 28.8 V |

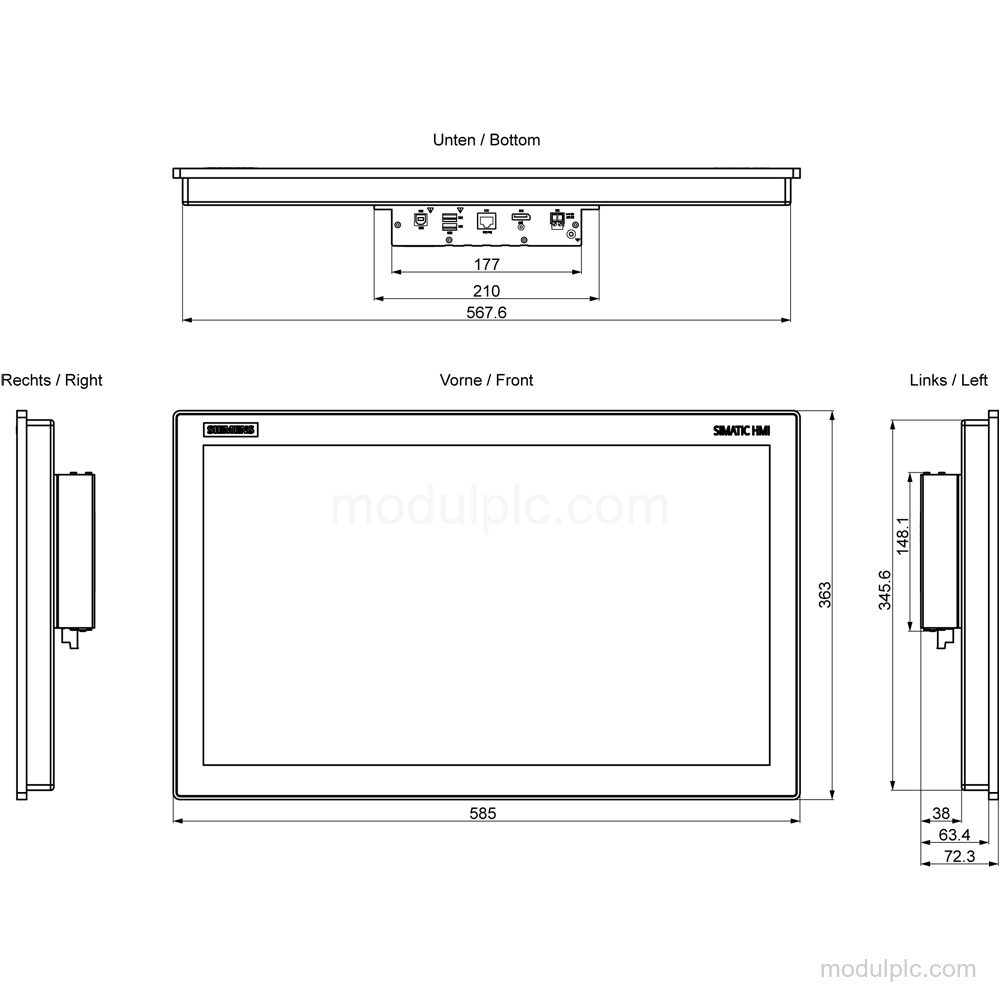

| Mounting | Built-in unit; VESA 100 x 100 integrated |
Key Features

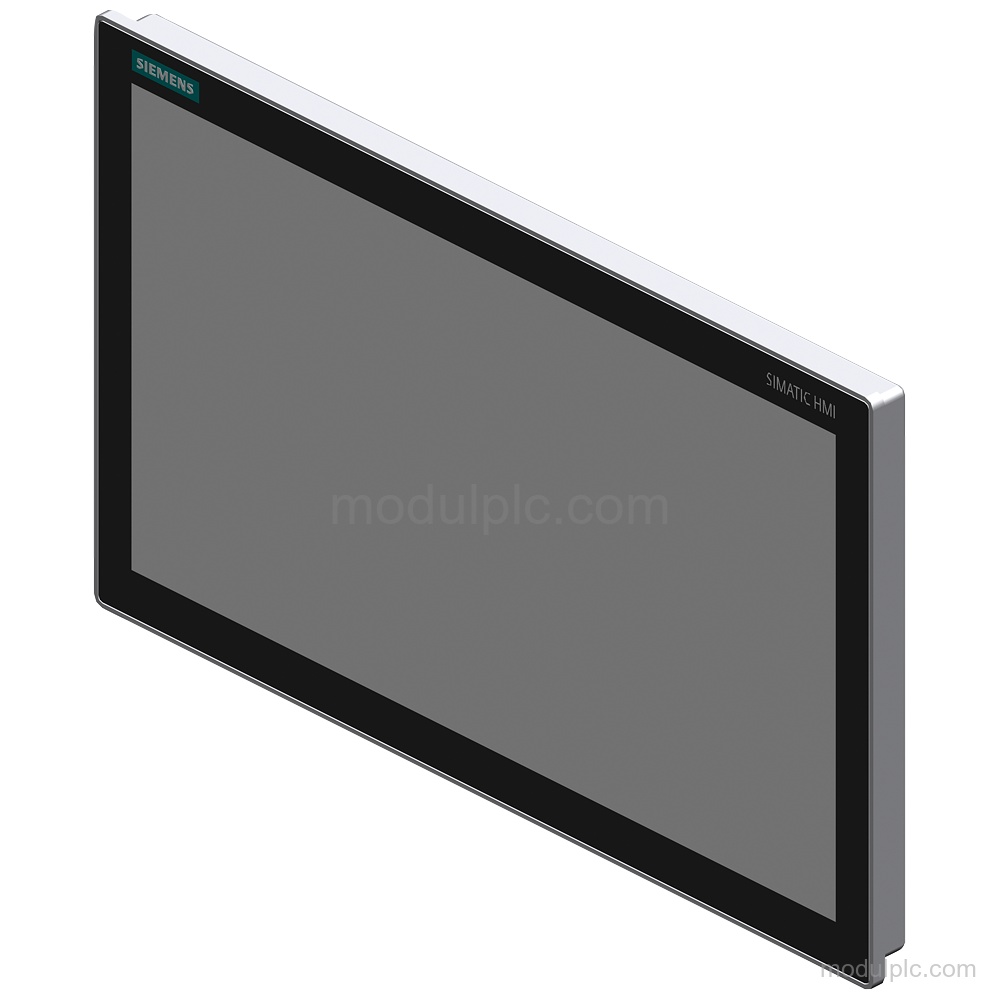

- Display and resolution: TFT widescreen display with LED backlighting, 24-inch diagonal, and 1920 x 1080 image resolution.
- Multi-touch operation: Projective-capacitive multi-touch screen with integrated mouse cursor control.

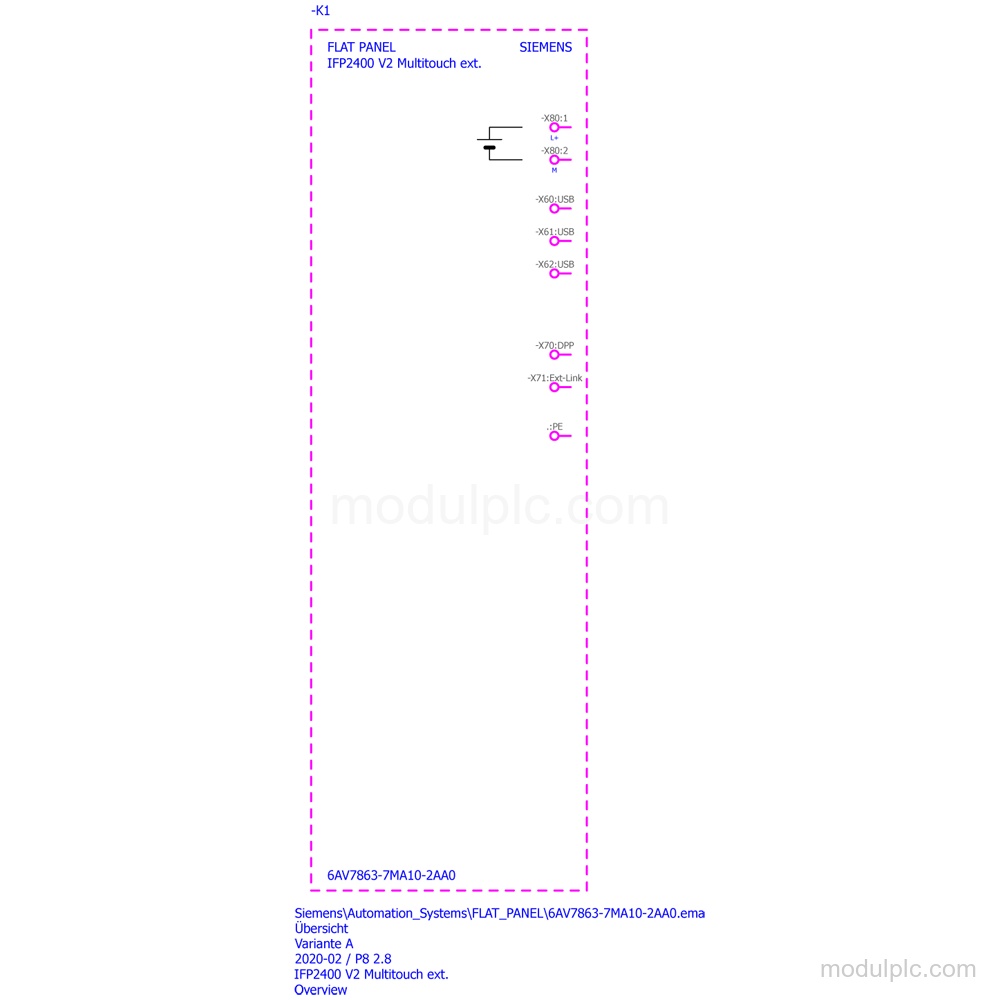

- Video and USB interfaces: DisplayPort V1.2 and 2 USB 2.0 Type A interfaces on the rear.
- Supply voltage: 24 V DC rated supply with a permissible range from 19.2 V to 28.8 V.
- Mounting: Built-in unit for front mounting, with integrated VESA 100 x 100 mounting; portrait and landscape mounting are possible.
- Front protection: IP65 protection and Enclosure Type 4, Type 4x, and Type 12 at the front; the rear has IP20 protection.
Frequently Asked Questions
1. What display resolution does the 6AV7863-7MA10-2AA0 have?
It has an image resolution of 1920 x 1080.
2. What touch technology does the display use?
It has a projective-capacitive multi-touch screen.
3. Which interfaces are included?
It has DisplayPort V1.2 and 2 USB 2.0 Type A interfaces on the rear.
4. What supply does the display require?
The rated supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V.
5. What mounting options are available?
It is a built-in unit for front mounting, with integrated VESA 100 x 100 mounting. Portrait and landscape mounting are possible.
