Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Display type | TFT widescreen display, LED backlighting |
| Screen size | 18.5 in; 19"; 47 cm |
| Image resolution | 1 920 x 1 080 pixels |
| Touch operation | Projective-capacitive multi-touch screen |
| Supply | 24 V DC; PELV / SELV floating |
| Supply range | 19.2 V to 28.8 V |
| Interfaces | DisplayPort V1.2; 2 USB 2.0 type A |
| Remote placement | Up to 100 m; HDBaseT protocol |

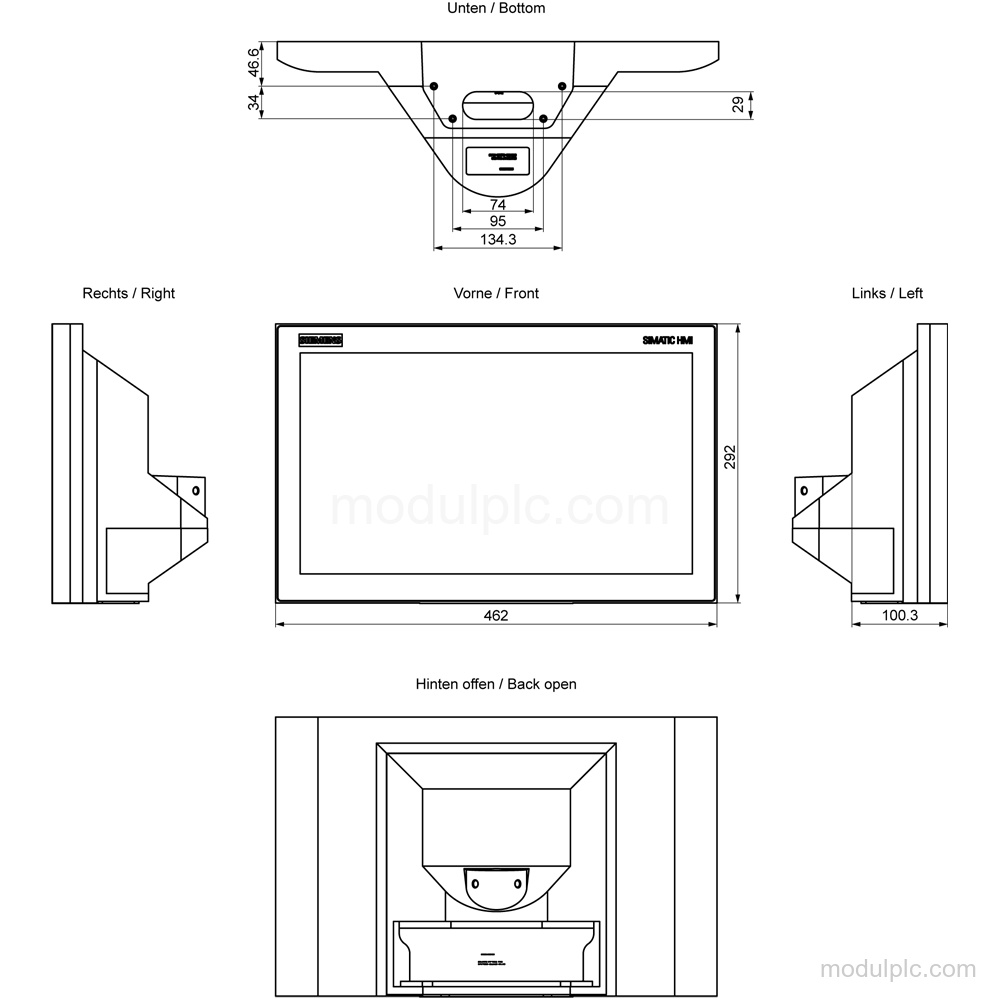

| Mounting | Support arm; VESA 100 x 100 integrated |
| Protection | IP65 at the front and rear |
Applications
- Operator control: The multi-touch screen, monitor keyboard, and integrated mouse cursor control support operator control.
Key Features

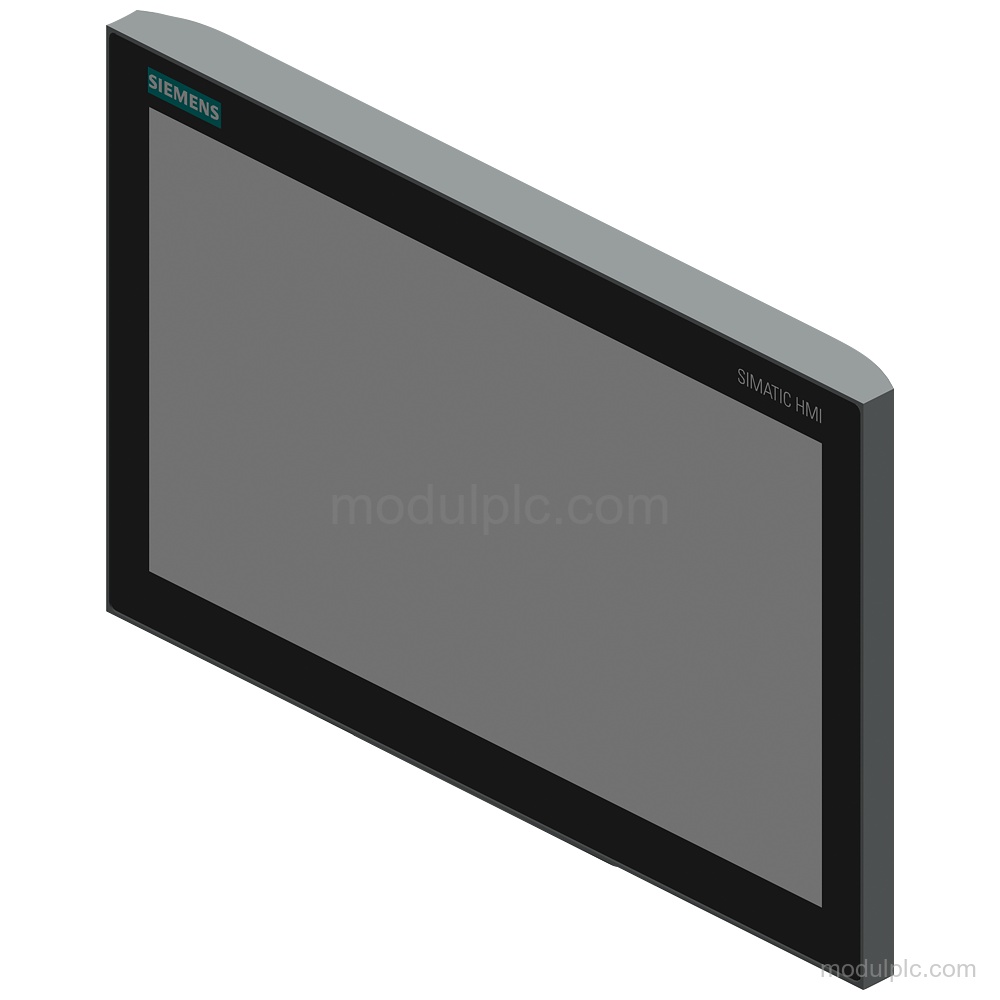

- 19" multi-touch display: TFT widescreen display with LED backlighting, projective-capacitive multi-touch, 16 777 216 colors, and 178° x 178° viewing angle.
- Full HD resolution: Image resolution is 1 920 x 1 080 pixels, with 0.213 mm horizontal and vertical pixel size.
- PRO variant support-arm mounting: The display has support arm mounting and integrated VESA 100 x 100 mounting. Front mounting is not included.
- 24 V DC supply: Rated supply is 24 V DC, PELV / SELV floating, with a permissible range of 19.2 V to 28.8 V.

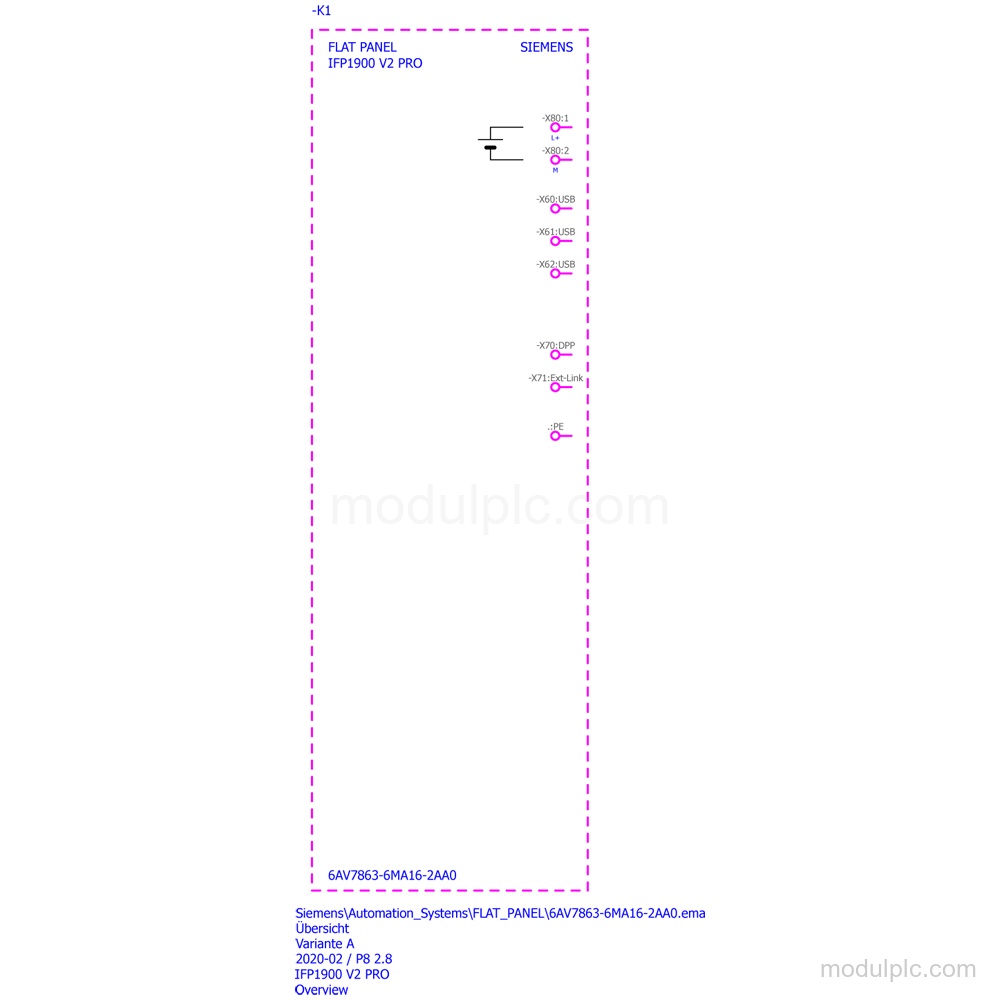

- DisplayPort and USB interfaces: The unit has DisplayPort V1.2 and 2 USB 2.0 type A interfaces on the rear; USB provides the keyboard/mouse connection and touch interface.
- HDBaseT remote placement: The display can be detached from the computer unit and placed up to 100 m away using the HDBaseT protocol.
Frequently Asked Questions
1. What display resolution does the 6AV7863-6MA16-2AA0 have?
It has an image resolution of 1 920 x 1 080 pixels.
2. What supply does this display require?
It requires 24 V DC, PELV / SELV floating, with a permissible range of 19.2 V to 28.8 V.
3. Which interfaces are provided?
It has DisplayPort V1.2 and 2 USB 2.0 type A interfaces on the rear. USB is used for the keyboard/mouse connection and touch interface.
4. How is the display mounted?
It has support arm mounting and integrated VESA 100 x 100 mounting. Front mounting is not included.
