Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | IFP1900 V2 PRO |
| Display | 19" TFT widescreen, LED backlighting, multi-touch |
| Image resolution | 1 920 x 1 080 pixels |

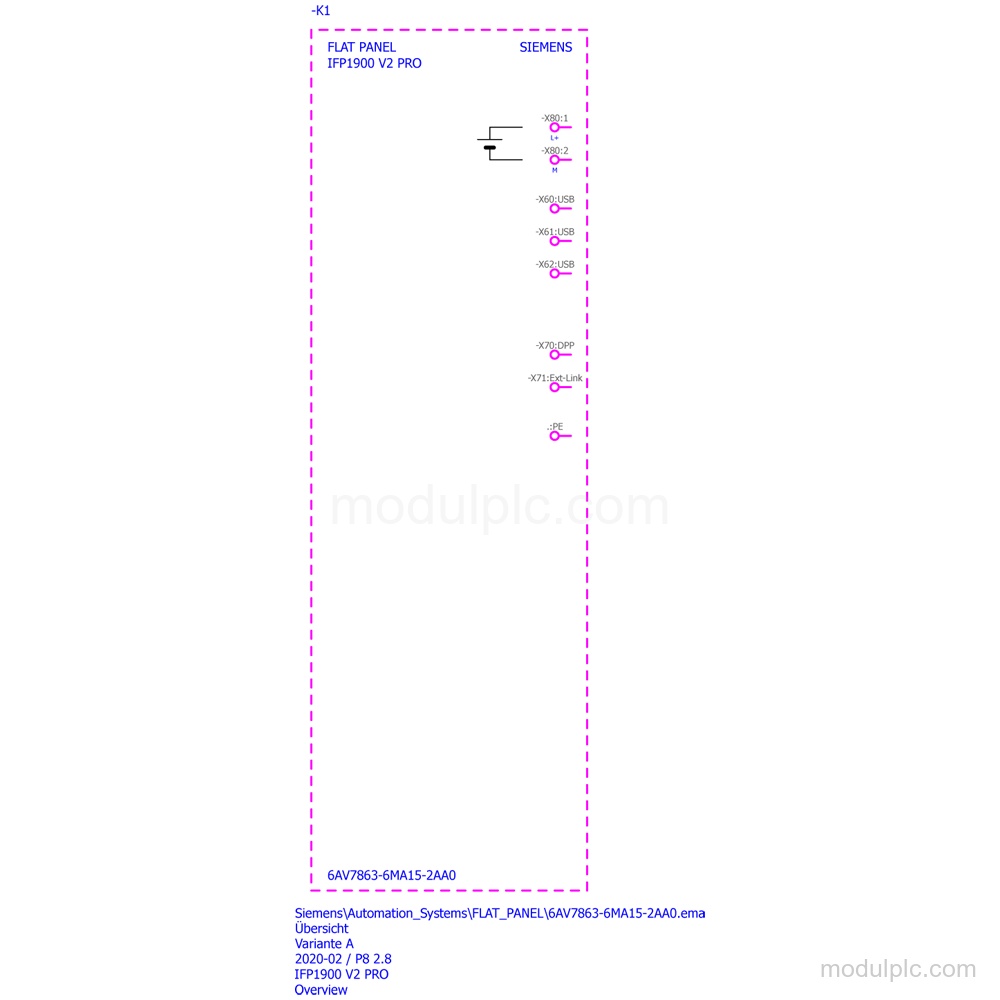

| Interfaces | DisplayPort V1.2; 2 USB 2.0 Type A |
| Rated supply | 24 V DC; PELV / SELV floating |
| Permissible supply range | 19.2 V to 28.8 V |

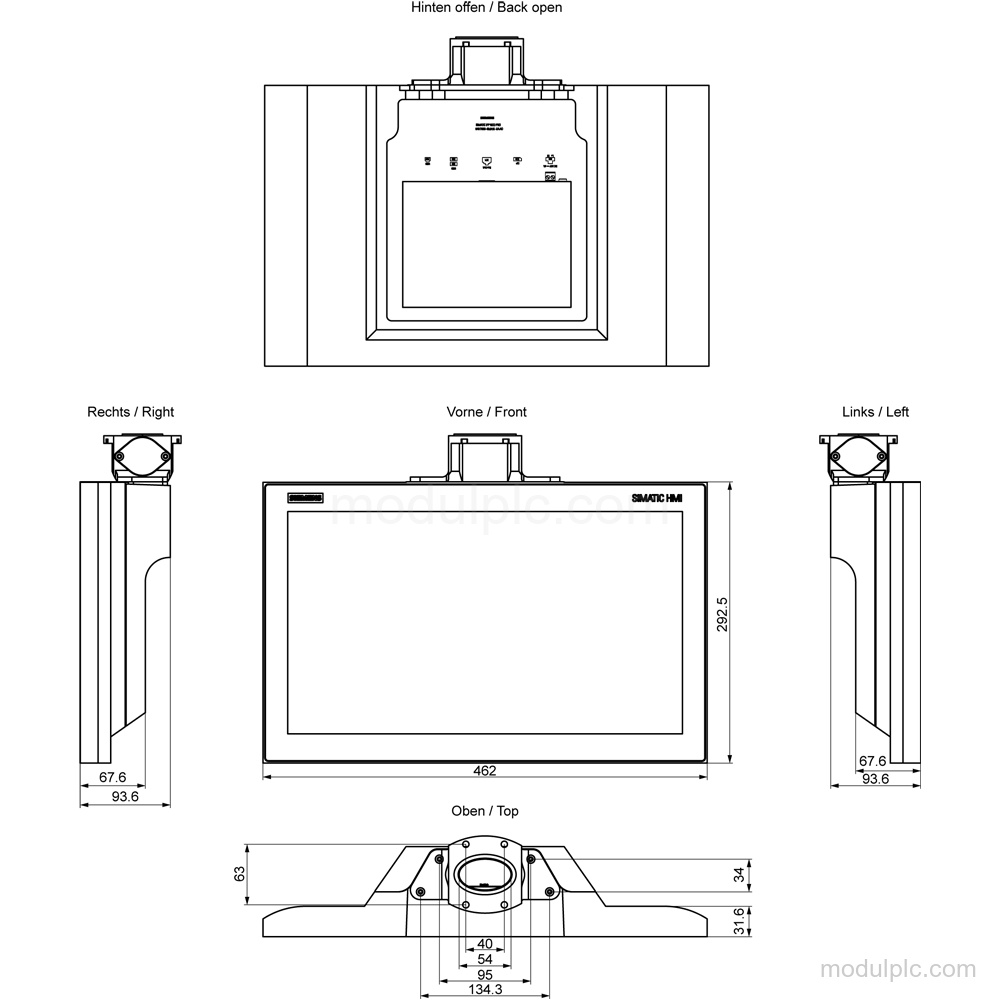

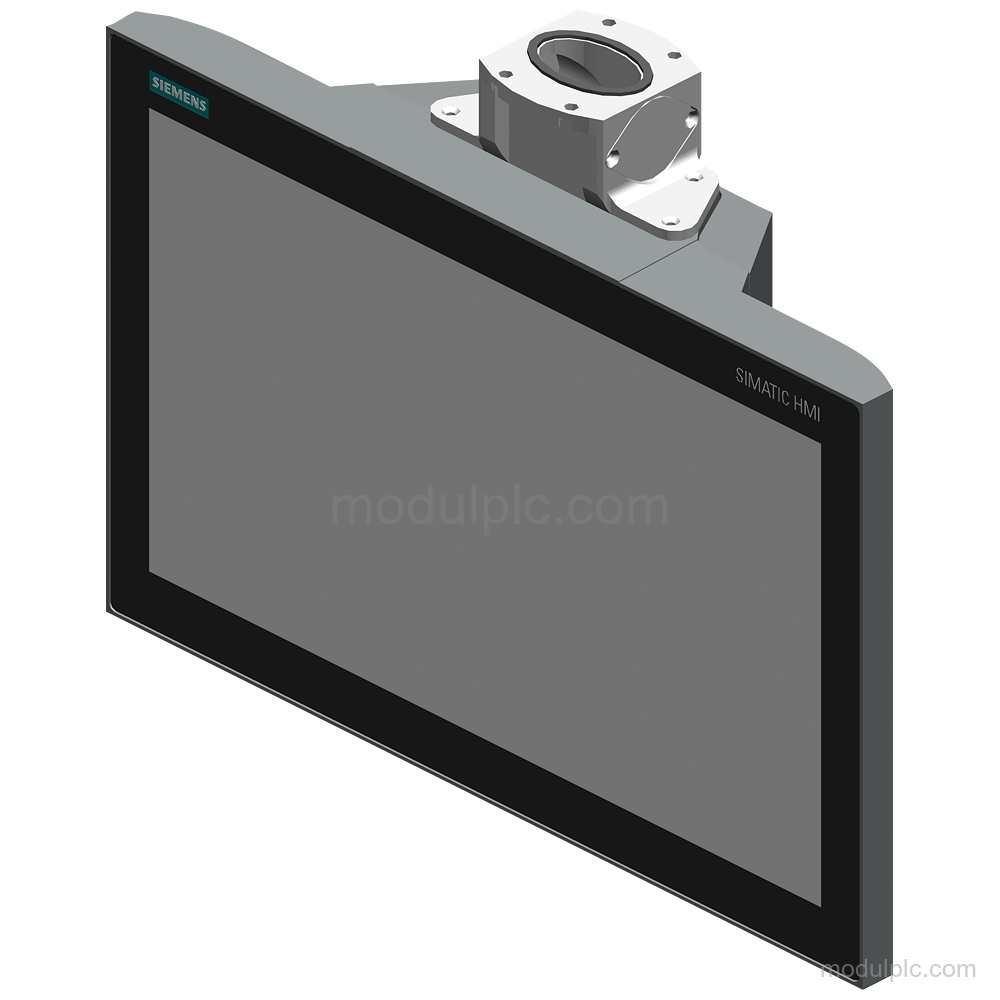

| Mounting | Support arm; VESA 100 x 100 integrated |
| Protection | IP65 at the front and rear |
Applications
- Visual display: Displays images through the TFT widescreen display with 1 920 x 1 080 pixel resolution.
- Multi-touch operation: Provides multi-touch operation through the projective-capacitive touch screen.
- Keyboard and mouse connection: Provides USB connection for a keyboard and mouse, with external mouse cursor control via USB.
Key Features
- 19" multi-touch display: TFT widescreen display with LED backlighting, projective-capacitive multi-touch, 16 777 216 colors, and 178° x 178° viewing angle.
- Image resolution: Image resolution: 1 920 x 1 080 pixels; luminance: 350 cd/m2; contrast: 1 000:1.
- Interfaces: DisplayPort V1.2 and 2 USB 2.0 Type A interfaces are provided; USB interfaces are on the rear.
- Supply voltage: Rated supply: 24 V DC; permissible range: 19.2 V to 28.8 V; current consumption: 1.2 A rated and 1.5 A maximum.
- Mounting: Support arm mounting is provided. VESA 100 x 100 is integrated; front mounting and stand mounting are not provided.
- Protection: IP65 protection is provided at the front and rear; Enclosure Type 4 and Enclosure Type 4x are provided at the front.
Frequently Asked Questions
1. What display resolution does the Siemens 6AV7863-6MA15-2AA0 have?
It has an image resolution of 1 920 x 1 080 pixels.
2. What interfaces are available on the IFP1900 V2 PRO?
It has DisplayPort V1.2 and 2 USB 2.0 Type A interfaces on the rear.
3. What supply does this display require?
The rated supply is 24 V DC, PELV / SELV floating, with a permissible range of 19.2 V to 28.8 V.
4. How is the display mounted?
It has support arm mounting and integrated VESA 100 x 100 mounting. It is without front mounting and stand mounting.
