Product Overview
Technical Summary
| Parameter | Value |
|---|---|

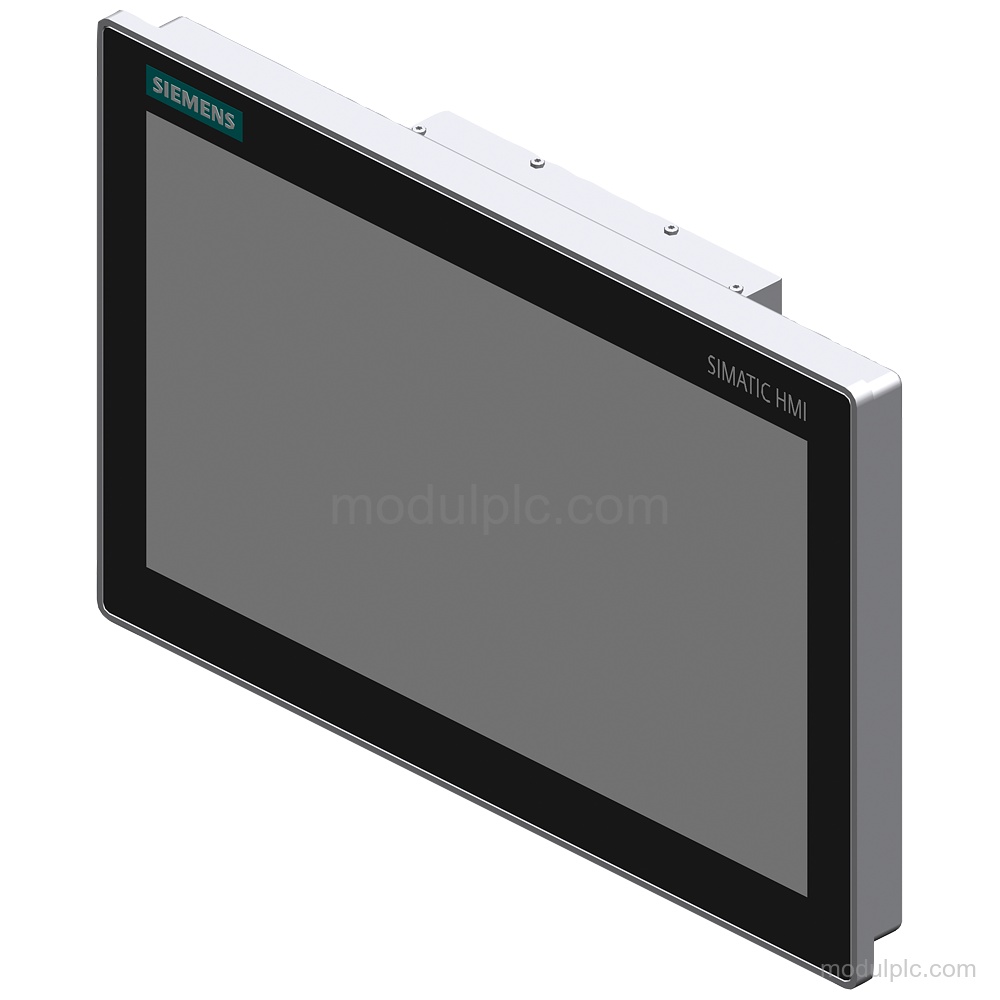

| Display type | TFT widescreen display with LED backlighting |
| Screen diagonal | 15.6 in; 15" |
| Multi-touch screen | Projective-capacitive |
| Image resolution | 1 920 x 1 080 pixels |
| Video interface | DisplayPort V1.2 |
| Remote placement | Up to 100 m; HDBaseT protocol |
| Rated supply | 24 V DC; PELV / SELV floating |
| Supply range | 19.2 V to 28.8 V |
| USB interfaces | 2 USB 2.0 type A; rear |
| Mounting | Built-in unit; VESA 100 x 100 integrated |
| Front protection | IP65 |
| Rear protection | IP20 |
Key Features
- Multi-touch display: Projective-capacitive multi-touch screen with a 15.6 in diagonal and 16 777 216 colors; 24 bit.
- Image resolution: Resolution: 1 920 x 1 080 pixels; viewing angle: 178° x 178°.
- Video connection: DisplayPort V1.2 is available; the unit can be detached from the computer unit up to 100 m using the HDBaseT protocol.
- Supply and power: Rated supply: 24 V DC; permissible range: 19.2 V to 28.8 V. Current consumption is 1 A rated and 1.3 A maximum.
- USB interfaces: 2 USB 2.0 type A interfaces are onboard at the rear; USB provides the keyboard/mouse connection and touch interface.

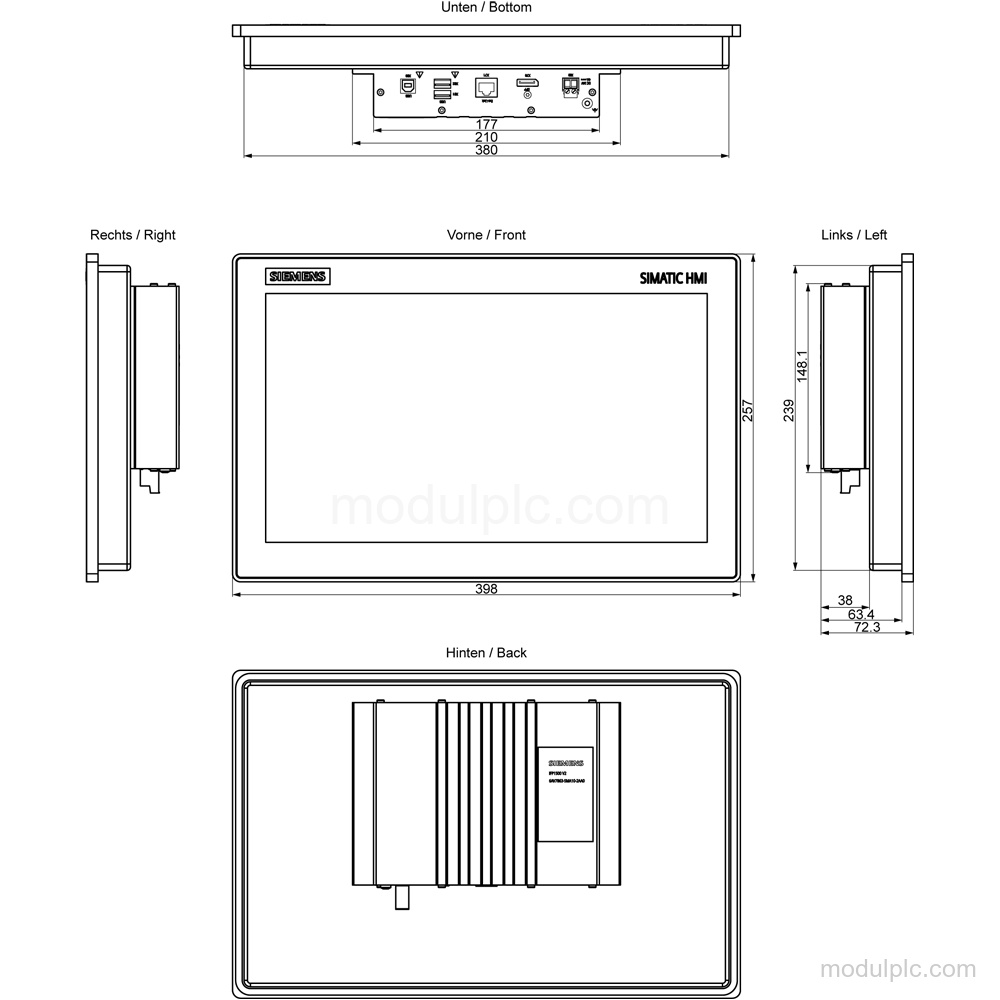

- Mounting and protection: Built-in unit with front mounting, integrated VESA 100 x 100 mounting, and portrait or landscape mounting. Protection is IP65 at the front and IP20 at the rear.
Frequently Asked Questions
1. What display does the 6AV7863-5MA10-2AA0 have?
It has a 15.6 in TFT widescreen multi-touch display with 1 920 x 1 080 pixel resolution, LED backlighting and a 178° x 178° viewing angle.
2. What supply voltage does this display require?
The rated supply is 24 V DC, PELV / SELV floating, with a permissible range from 19.2 V to 28.8 V.
3. Which video interface is included?
The display has DisplayPort V1.2. It can be placed up to 100 m from the computer unit using the HDBaseT protocol.
4. How is the unit mounted?
It is a built-in unit with front mounting and integrated VESA 100 x 100 mounting. Portrait and landscape mounting are possible.
