Product Overview
Technical Summary
| Parameter | Value |
|---|---|

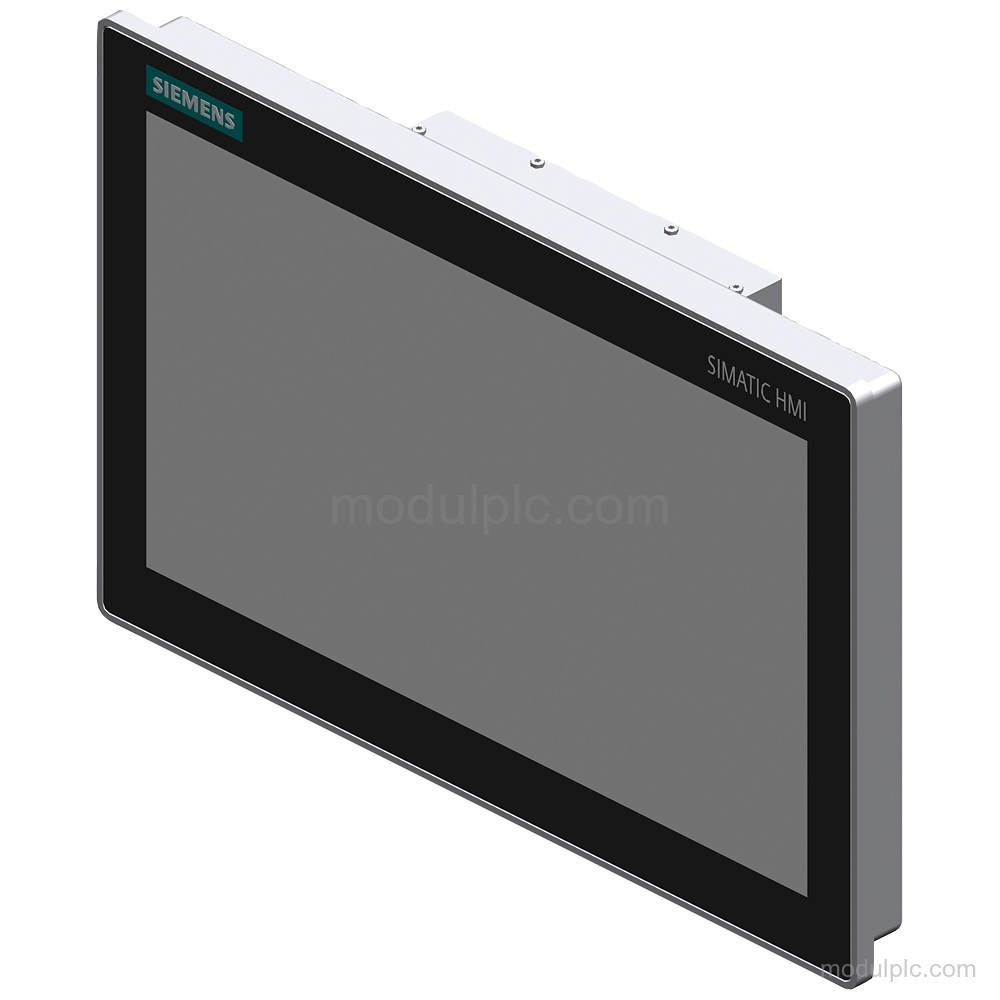

| Display type | TFT widescreen display with LED backlighting |
| Screen diagonal | 15.6 in; 15" |
| Image resolution | 1 920 x 1 080 |
| Touch operation | Projective-capacitive multi-touch screen |
| Supply voltage | 24 V DC; permissible range 19.2 V to 28.8 V |
| Video interfaces | DisplayPort V1.2 and DVI-D |
| USB interfaces | 2 USB 2.0 type A; on the rear |
| Mounting | Built-in unit; VESA 100 x 100 integrated |
| Protection | IP65 at the front; IP20 at the rear |
Key Features
- TFT widescreen display: 15.6 in; 15" screen diagonal with LED backlighting, 400 cd/m2 luminance, and 700:1 contrast.
- Multi-touch resolution: Projective-capacitive multi-touch screen with 1920 x 1080 image resolution and 16 777 216 colors.
- 24 V DC supply: Rated supply: 24 V DC; permissible range: 19.2 V to 28.8 V. Current consumption is 1 A rated and 1.3 A maximum.

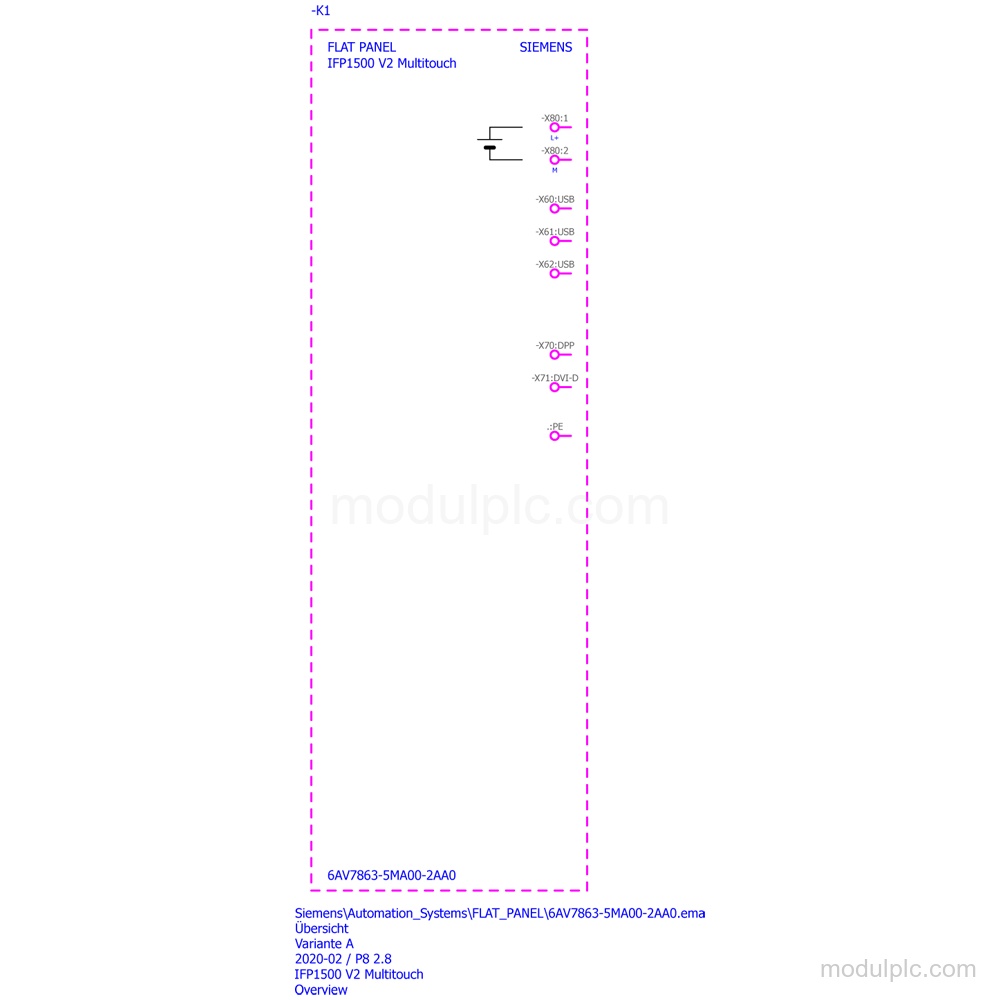

- Video and USB interfaces: DisplayPort V1.2 and DVI-D video interfaces, plus 2 USB 2.0 type A interfaces on the rear.

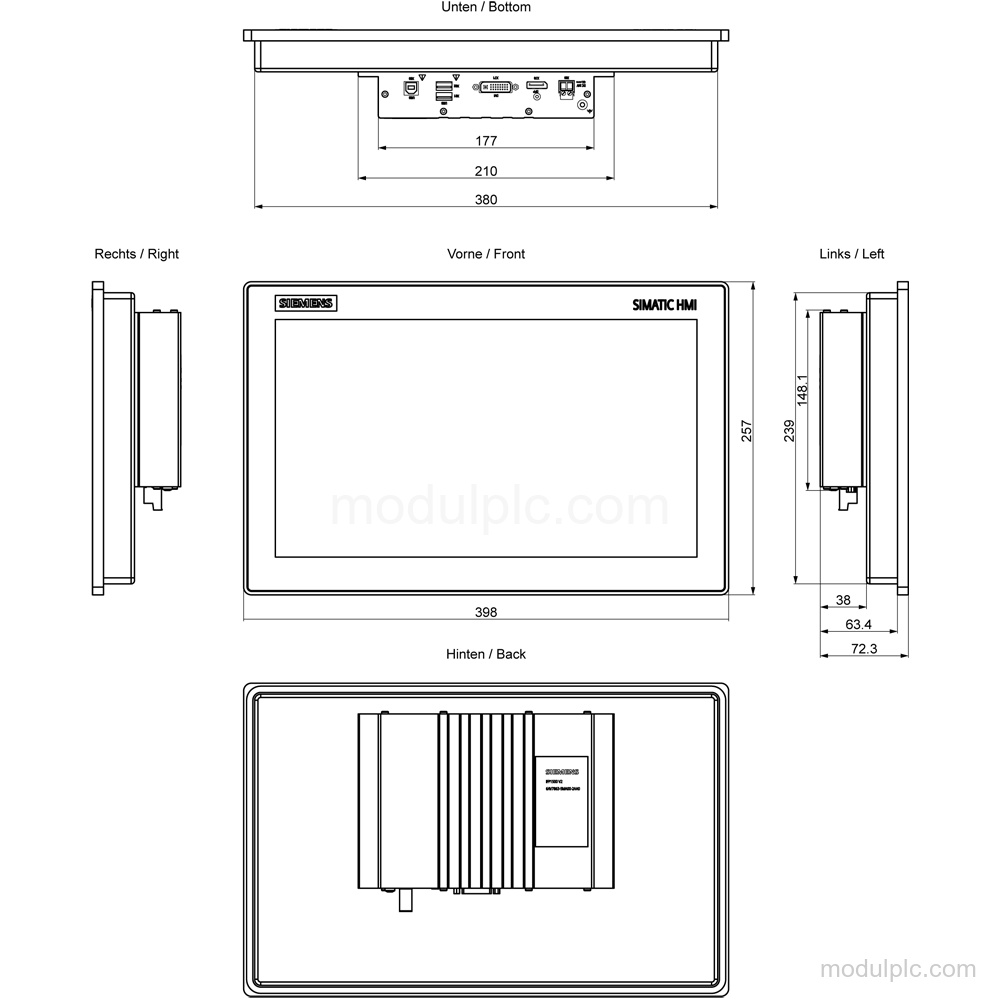

- Built-in mounting: Built-in unit with front mounting, integrated VESA 100 x 100 mounting, and portrait or landscape mounting.
- Front protection: Protection rating is IP65 at the front and IP20 at the rear. The front has NEMA Enclosure Type 4, 4x, and 12.
Frequently Asked Questions
1. What display and touch technology does Siemens 6AV7863-5MA00-2AA0 use?
It has a TFT widescreen display with LED backlighting and a projective-capacitive multi-touch screen.
2. What resolution does the SIMATIC IFP1500 V2 provide?
Image resolution is 1 920 x 1 080, with 16 777 216 colors.
3. What supply voltage and current does this display require?
Supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V. Current consumption is 1 A rated and 1.3 A maximum.
4. Which video and USB interfaces are available?
It has DisplayPort V1.2, DVI-D, and 2 USB 2.0 type A interfaces on the rear.
5. How is the display mounted and protected?
It is a built-in unit with front mounting and integrated VESA 100 x 100 mounting. Protection is IP65 at the front and IP20 at the rear.
