Product Overview
Technical Summary
| Parameter | Value |
|---|---|

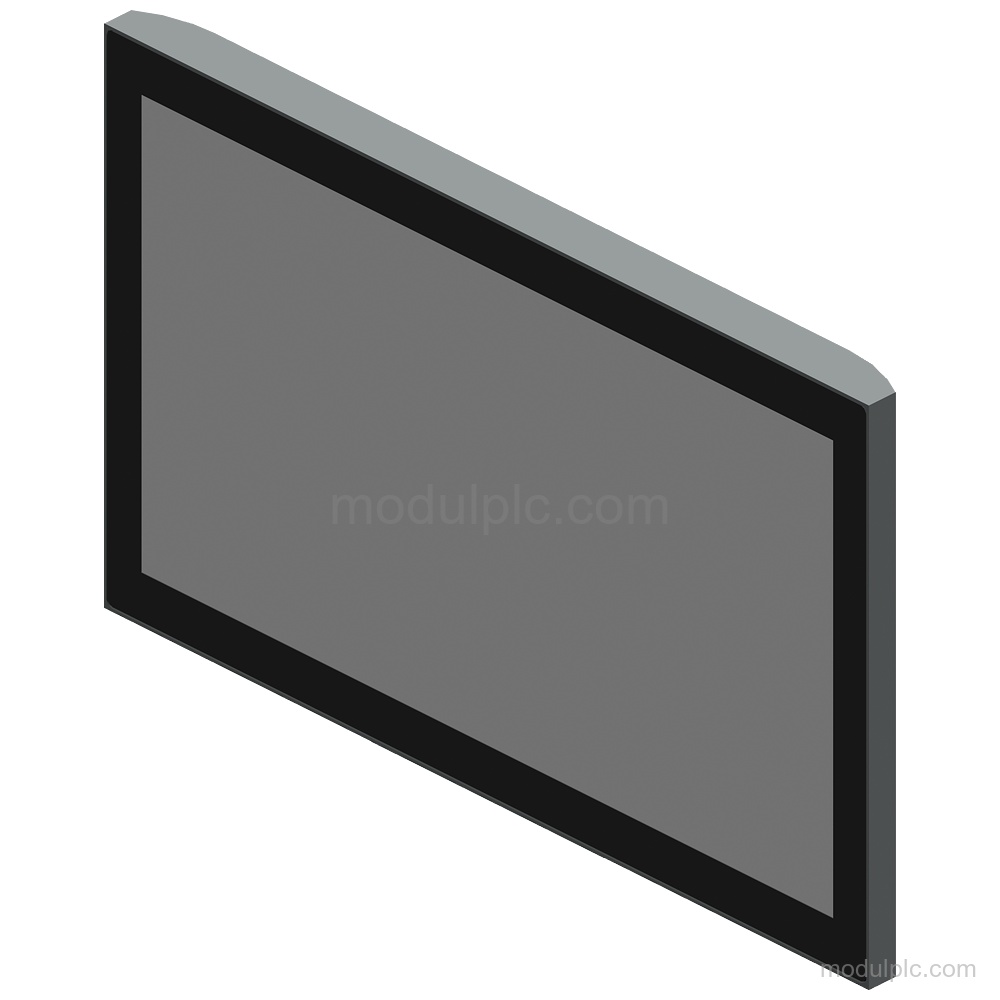

| Product type | IFP2200 V2 PRO |
| Display | TFT widescreen display, LED backlighting; 21.5 in; 22" |
| Resolution | 1 920 x 1 080 pixels |
| Touch operation | Projective-capacitive multi-touch screen |
| Video interface | DisplayPort V1.2 |
| USB interfaces | 2; USB 2.0 Type A |
| Detachable distance | 100 m; HDBaseT protocol |
| Rated supply | 24 V DC; PELV / SELV floating |
| Permissible supply range | 19.2 V to 28.8 V |

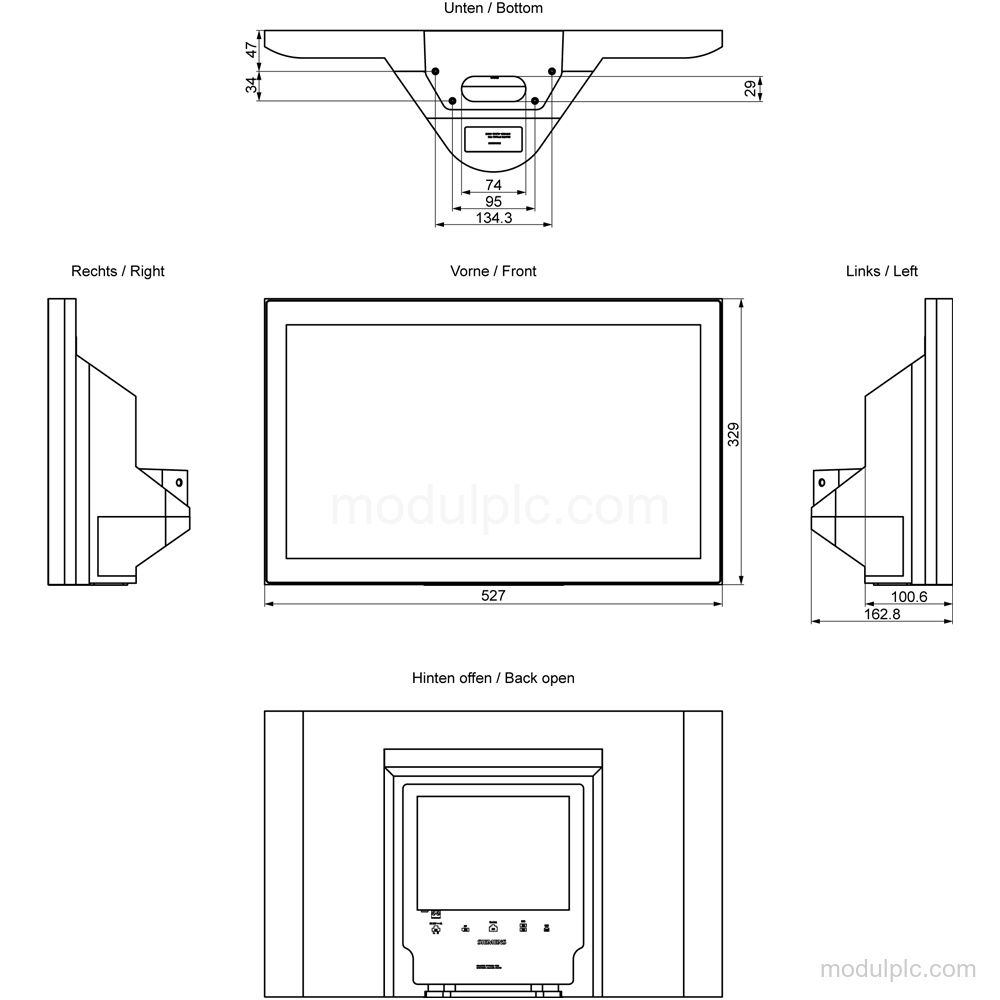

| Mounting | Support arm mounting; VESA mounting with VESA adapter set |
| Protection | IP65 at the front and rear |
Applications
- Operator control: The multi-touch screen, monitor keyboard, and integrated mouse cursor control support operator control.
Key Features
- Multi-touch display: TFT widescreen display with LED backlighting, projective-capacitive multi-touch, 21.5 in; 22" screen diagonal, and 1920 x 1080 pixel resolution.
- Operator control: The display has a multi-touch screen, monitor keyboard, and integrated mouse cursor control, also externally via USB.
- Interfaces and distance: DisplayPort V1.2 and 2 USB 2.0 Type A interfaces are provided; the display can be detached from the computer unit up to 100 m using the HDBaseT protocol.
- Supply: Rated supply: 24 V DC, PELV / SELV floating; permissible range: 19.2 V to 28.8 V. Current consumption is 1 A rated and 1.3 A maximum.
- Mounting and protection: Support arm mounting and VESA mounting with VESA adapter set are supported. IP65 protection applies at the front and rear; front Enclosure Type 4 and Type 4x are supported.
Frequently Asked Questions
1. What is the display resolution of 6AV7863-4MA16-2NA0?
The image resolution is 1 920 x 1 080 pixels.
2. Which interfaces does this display have?

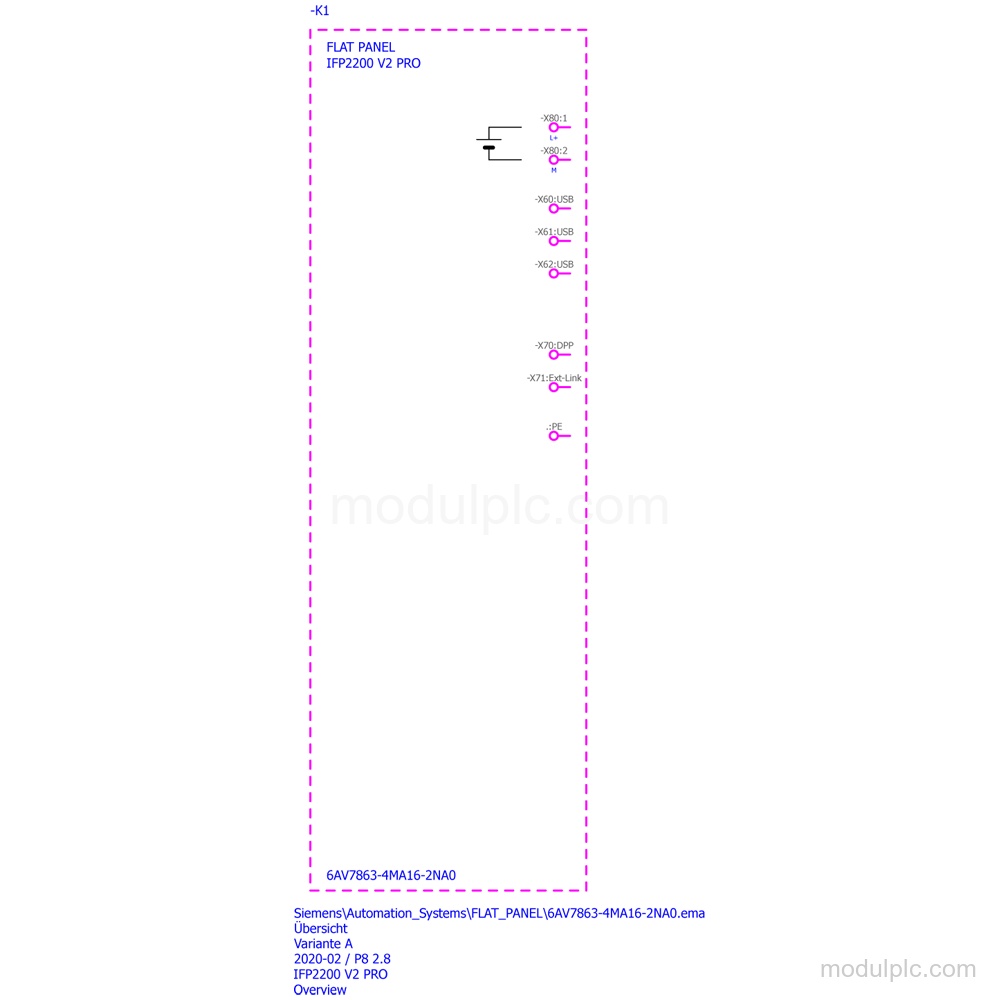

It has DisplayPort V1.2 and 2 USB 2.0 Type A interfaces. USB is also used for the touch interface and keyboard/mouse connection.
3. What supply and mounting details should be verified?
The rated supply is 24 V DC, PELV / SELV floating, with a permissible range of 19.2 V to 28.8 V. It supports support arm mounting and VESA mounting with VESA adapter set.
