Product Overview
Technical Summary
| Parameter | Value |
|---|---|

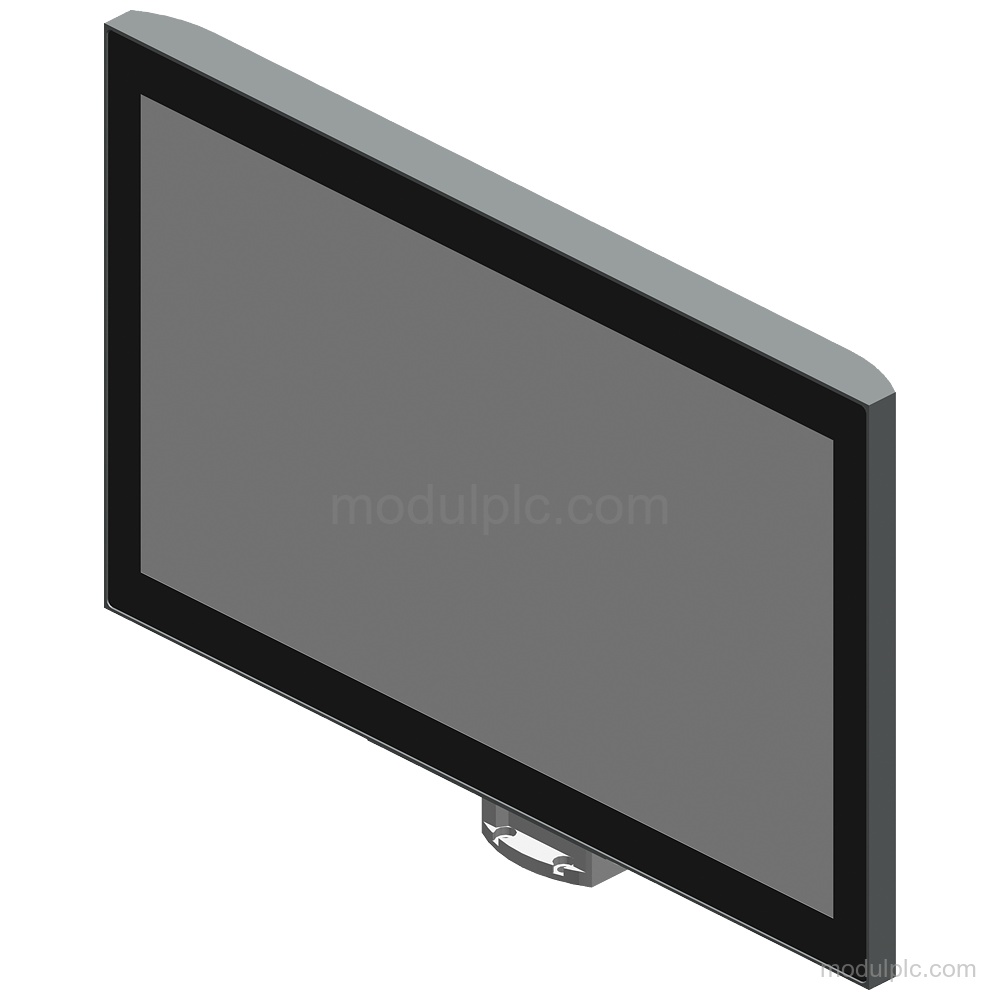

| Display type | TFT widescreen display, LED backlighting |
| Screen diagonal | 21.5 in; 22" |
| Image resolution | 1 920 x 1 080 |
| Touch screen | Projective-capacitive multi-touch screen |
| Video interface | DisplayPort V1.2 |
| USB interfaces | 2; USB 2.0 Type A |
| Rated supply | 24 V; PELV / SELV floating |
| Supply range | 19.2 V to 28.8 V |
| Mounting | Pedestal mounting; stand mounting; VESA mounting with VESA adapter set |
| Protection | IP65 front and rear |
| Remote placement | 100 m; HDBaseT protocol |
Applications
- Touch display operation: The multi-touch screen provides touch operation and integrated mouse cursor control for the display.
- Keyboard and mouse connection: The USB interface provides a connection for a keyboard and mouse.
Key Features
- 22-inch widescreen display: TFT widescreen display with LED backlighting, 21.5 in; 22" screen diagonal, 1920 x 1080 image resolution and 16 777 216 colors; 24 bit.
- Multi-touch operation: Projective-capacitive multi-touch screen with monitor keyboard and integrated mouse cursor control; external control is also available via USB.

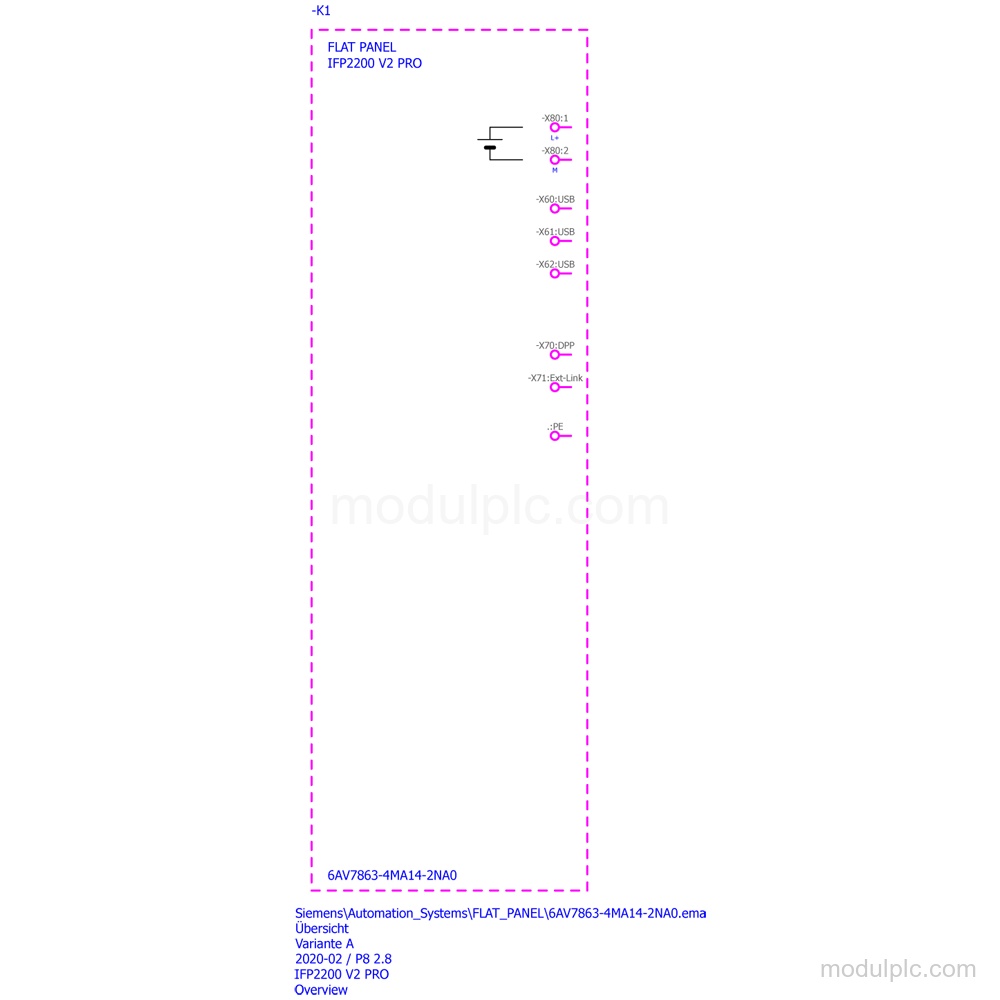

- Display and USB interfaces: DisplayPort V1.2, 2 USB 2.0 Type A interfaces on the rear and USB connection for keyboard/mouse.
- 24 V DC supply: Rated supply: 24 V; permissible range: 19.2 V to 28.8 V. Current consumption: 1 A rated, 1.3 A maximum.

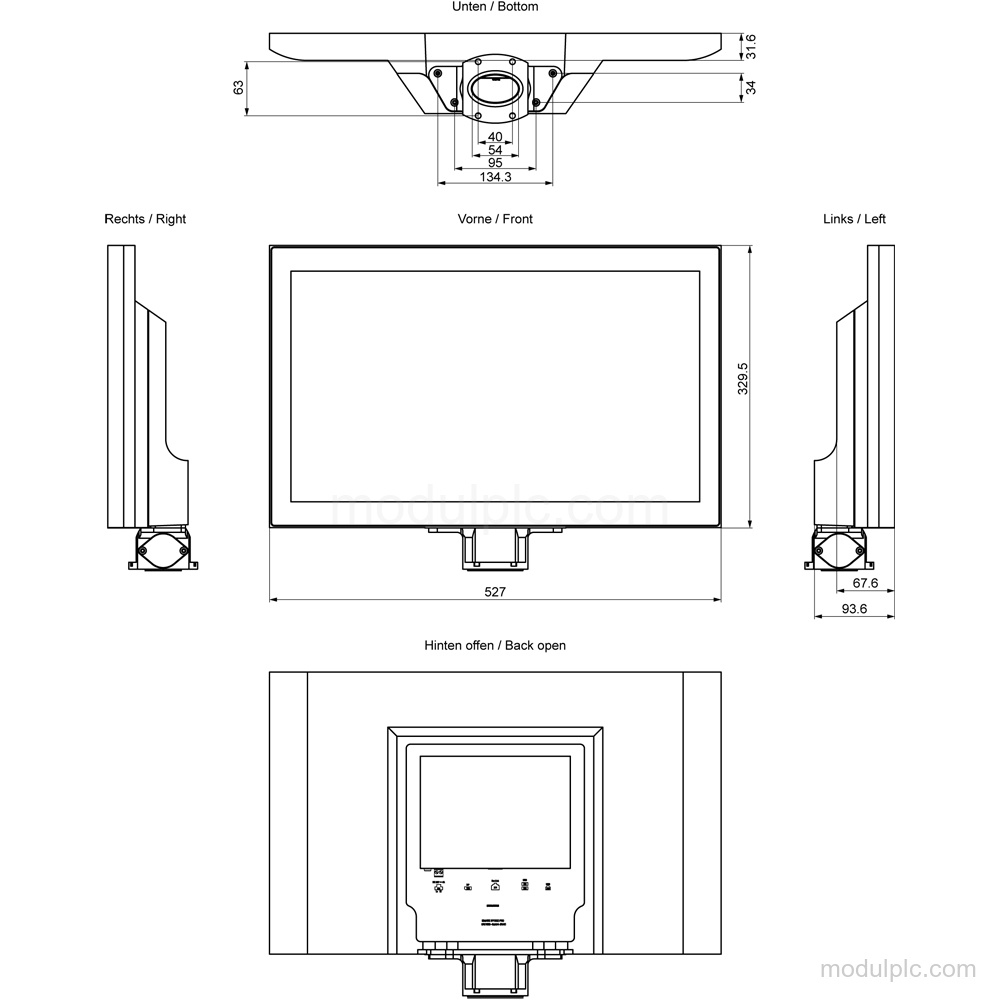

- Mounting and protection: Pedestal mounting and stand mounting are supported; VESA mounting is supported with a VESA adapter set. Front and rear protection: IP65.
- Remote display placement: The display can be detached from the computer unit and placed up to 100 m away using the HDBaseT protocol.
Frequently Asked Questions
1. What display resolution does the 6AV7863-4MA14-2NA0 have?
It has a 1 920 x 1 080 image resolution and a 21.5 in; 22" screen diagonal.
2. Does this model support multi-touch operation?
Yes. It has a projective-capacitive multi-touch screen and a monitor keyboard.
3. Which interfaces are available?
It has DisplayPort V1.2, 2 USB 2.0 Type A interfaces on the rear, and USB for keyboard/mouse connection.
4. What supply does the display require?
The rated supply is 24 V DC; the permissible range is 19.2 V to 28.8 V.
5. Which mounting options are supported?
Pedestal mounting and stand mounting are supported. VESA mounting is supported with a VESA adapter set; front mounting and support arm mounting are not supported.
