Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Display type | TFT widescreen display, LED backlighting |
| Screen diagonal | 21.5 in; 22" |
| Image resolution | 1 920 x 1 080 pixels |
| Touch screen | Projective-capacitive multi-touch |
| Supply | 24 V DC; 19.2 V to 28.8 V |
| Video interface | DisplayPort V1.2 |
| USB interfaces | 2; USB 2.0 type A |
| Mounting | Pedestal mounting; VESA mounting with VESA adapter set |
| Protection | IP65 at the front and rear |
Key Features

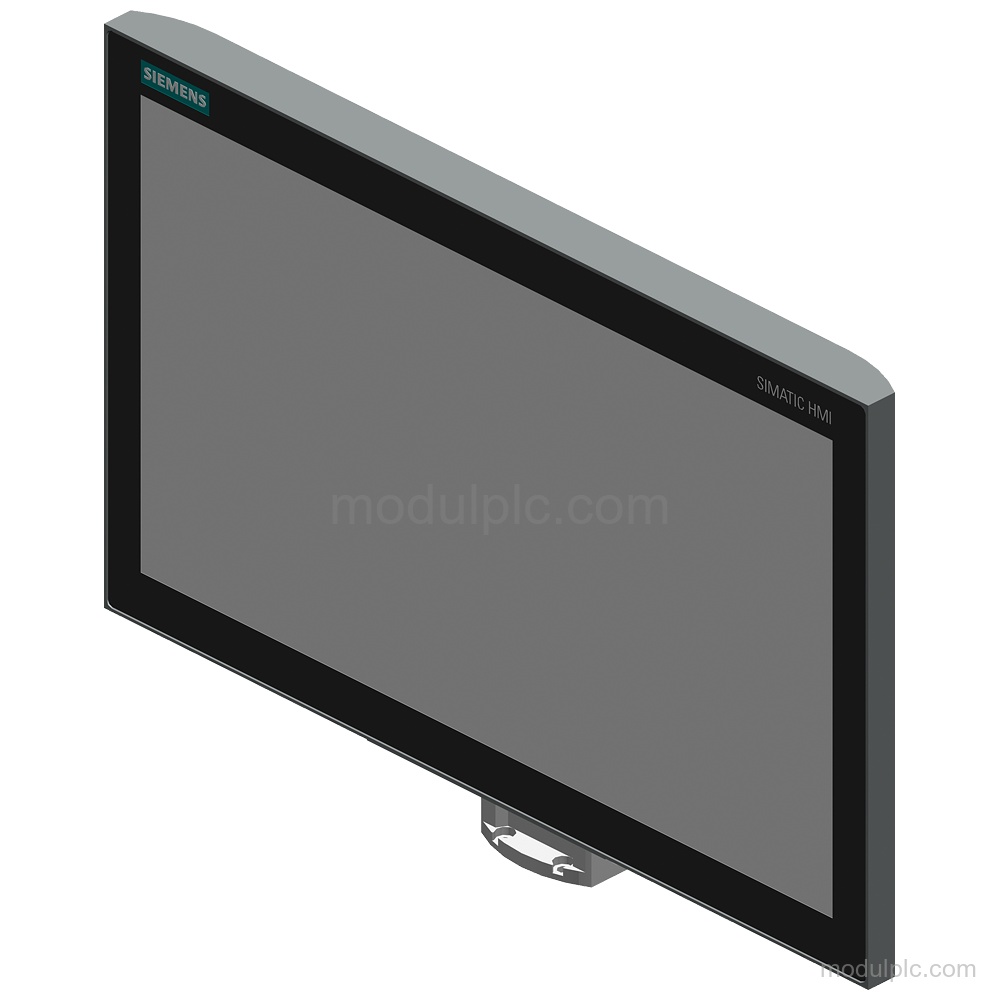

- 22" multi-touch display: TFT widescreen display with LED backlighting, 21.5 in; 22" screen diagonal, and projective-capacitive multi-touch.
- Full HD resolution: Image resolution: 1 920 x 1 080 pixels, with 16 777 216 colors and a 178° x 178° viewing angle.

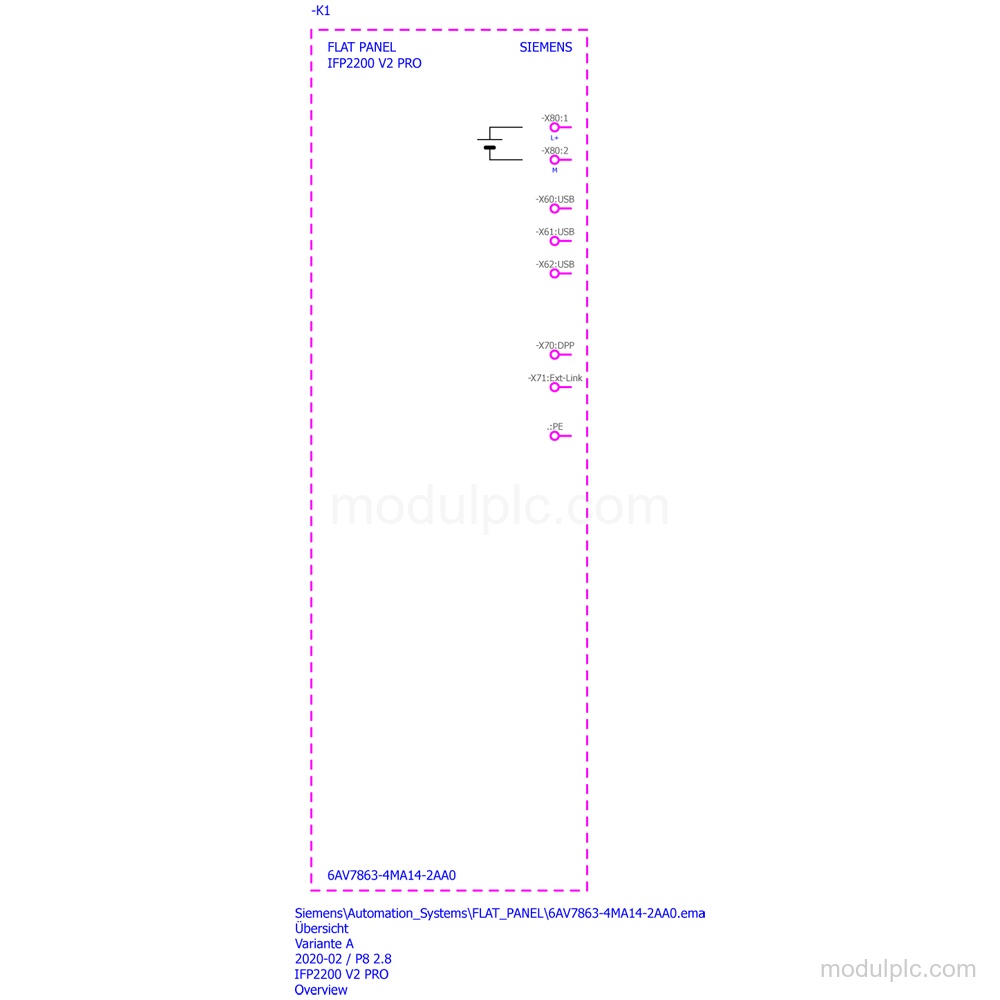

- DisplayPort and USB interfaces: DisplayPort V1.2 and 2 USB 2.0 type A interfaces are provided; USB is on the rear side.
- 24 V DC supply: Rated supply: 24 V DC; permissible range: 19.2 V to 28.8 V. Current consumption is 1 A rated and 1.3 A maximum.

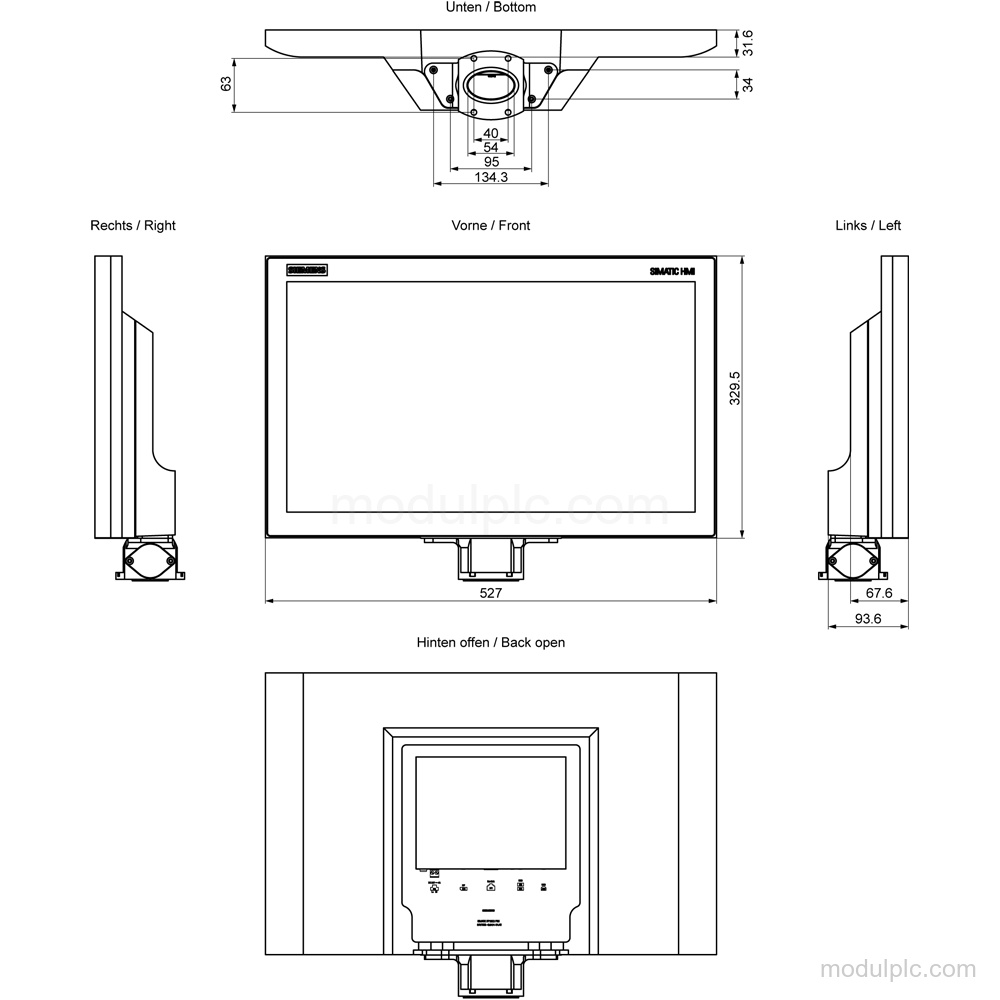

- Pedestal and VESA mounting: The display has a PRO variant stand and pedestal mounting. Stand mounting and VESA mounting with a VESA adapter set are supported.
- Front and rear IP65 protection: Protection degree is IP65 at the front and rear. The front also has Enclosure Type 4 and Enclosure Type 4x.
Frequently Asked Questions
1. What display and touch specifications does 6AV7863-4MA14-2AA0 have?
It has a TFT widescreen display with a 21.5 in; 22" diagonal, 1 920 x 1 080 pixel resolution, and projective-capacitive multi-touch.
2. What supply voltage does the display require?
The rated supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V.
3. Which interfaces are available?
The display has DisplayPort V1.2 and 2 USB 2.0 type A interfaces. The USB interfaces are on the rear side.
4. Which mounting options are supported?
It supports pedestal mounting, stand mounting, and VESA mounting with a VESA adapter set. Front mounting and support arm mounting are not supported.
