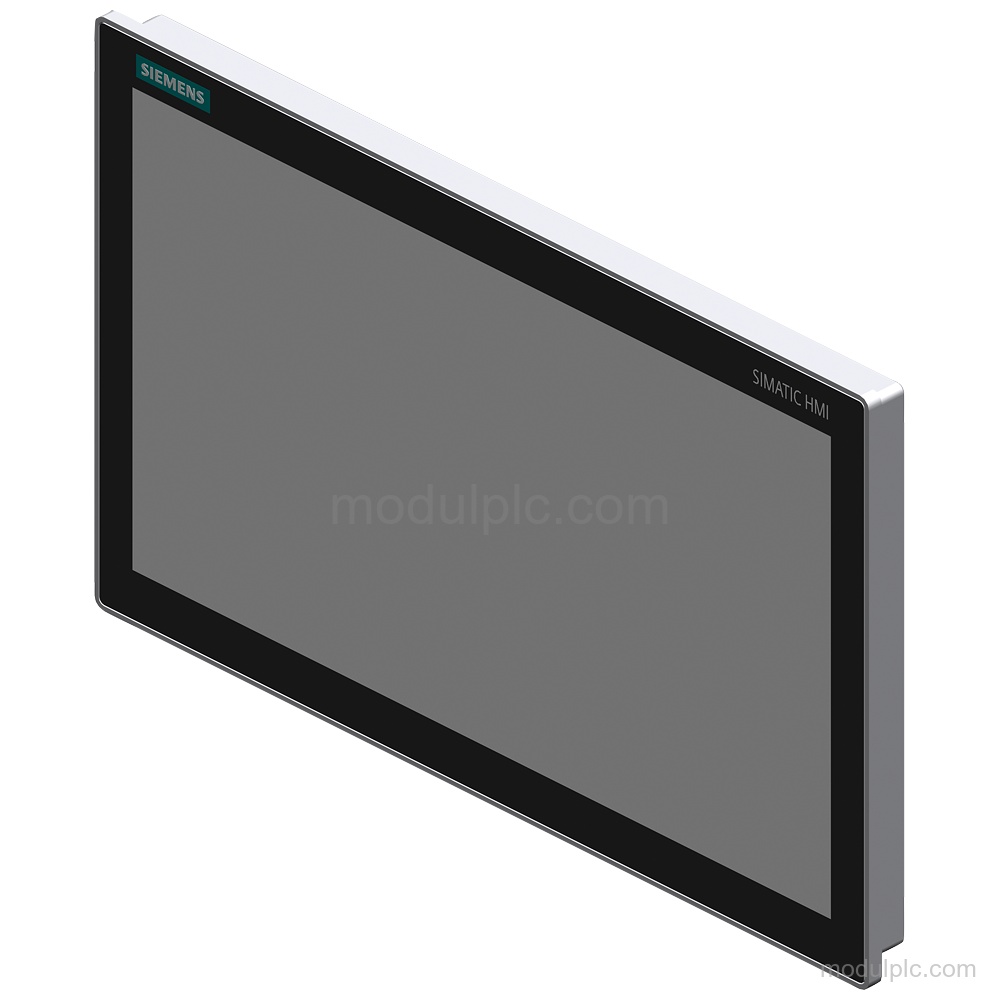

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | IFP2200 V2 |
| Display size | 22" |
| Image resolution | 1 920 x 1 080 |
| Touch technology | Projective-capacitive multi-touch screen |
| Supply | 24 V DC |
| Supply range | 19.2 V to 28.8 V |

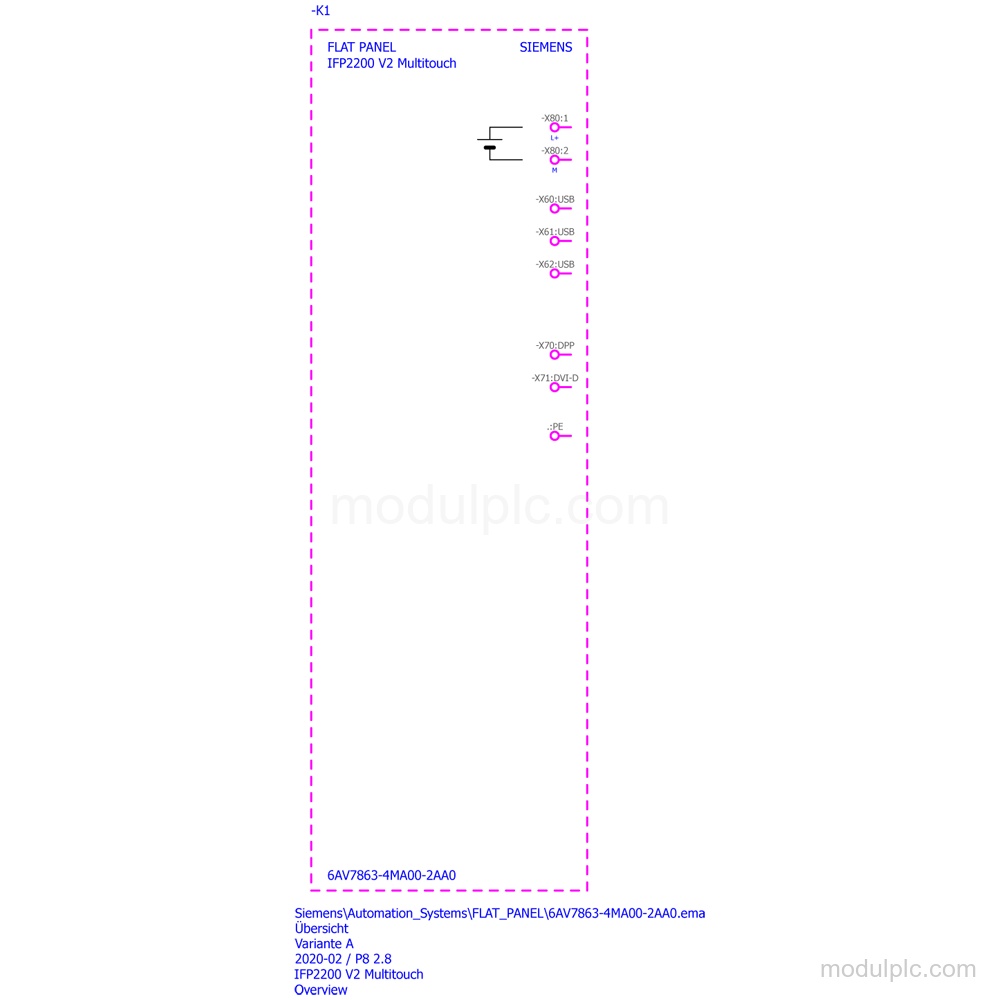

| Video interfaces | DVI-D; DisplayPort V1.2 |
| Mounting | Built-in unit; VESA 100 x 100 integrated |
Applications
- Visual display: Displays images through the 22" TFT widescreen display at 1 920 x 1 080 resolution.
- Touch operation: Provides multi-touch screen operation through the projective-capacitive touch screen.
Key Features
- Display and resolution: TFT widescreen display with LED backlighting, 22" diagonal and 1 920 x 1 080 image resolution.
- Multi-touch operation: Projective-capacitive multi-touch screen with integrated mouse cursor control.
- Video interfaces: DVI-D and DisplayPort V1.2 interfaces are provided.
- Supply voltage: DC supply with a rated value of 24 V and a permissible range from 19.2 V to 28.8 V.

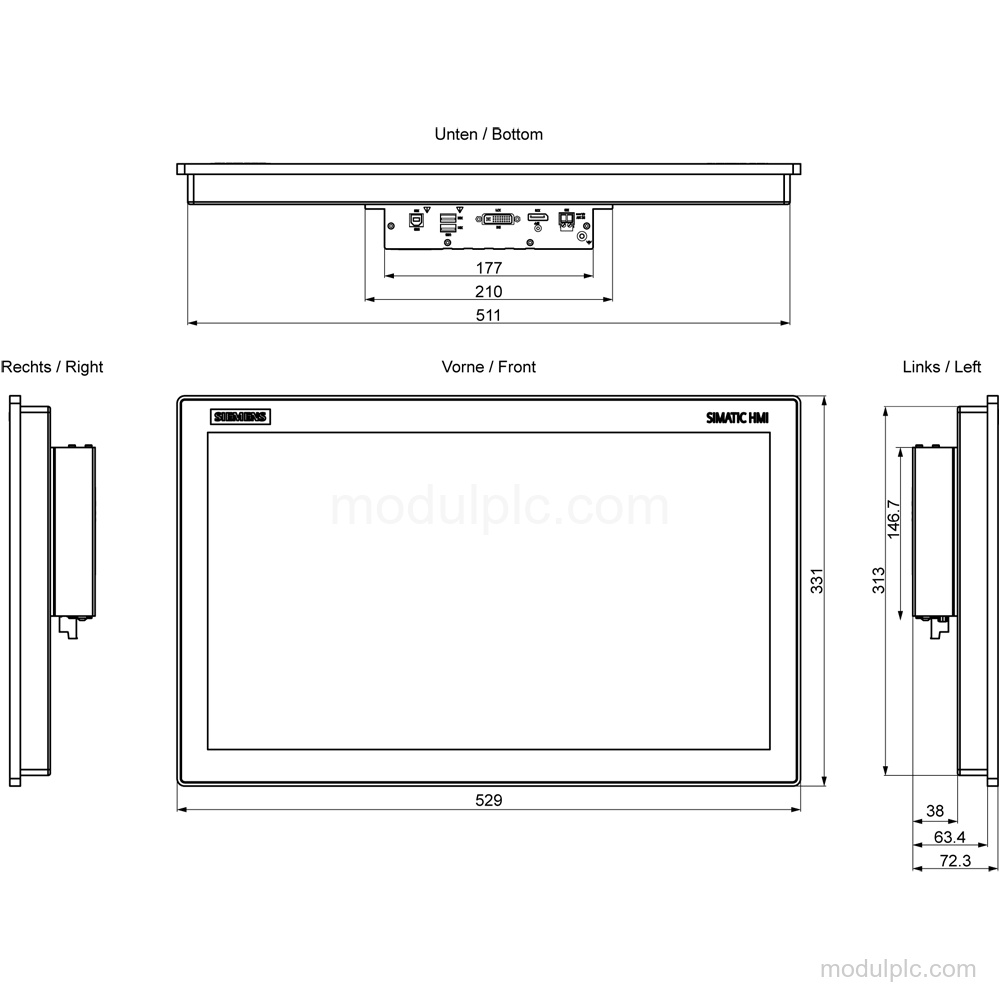

- Mounting: Built-in unit for front mounting, with integrated VESA 100 x 100 mounting; portrait and landscape mounting are possible.
- Front protection: The front has IP65 protection and Enclosure Type 4, Enclosure Type 4x and Enclosure Type 12 ratings.
Frequently Asked Questions
1. What is the display resolution of 6AV7863-4MA00-2AA0?
The image resolution is 1 920 x 1 080.
2. Which video interfaces does the SIMATIC IFP2200 V2 provide?
It provides DVI-D and DisplayPort V1.2 interfaces.
3. What supply voltage does this display require?
The rated DC supply is 24 V, with a permissible range from 19.2 V to 28.8 V.
