Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | IFP1200 V2 |
| Display type | TFT widescreen display, LED backlighting |
| Touch operation | Projective-capacitive multi-touch screen |
| Image resolution | 1 280 x 800 |

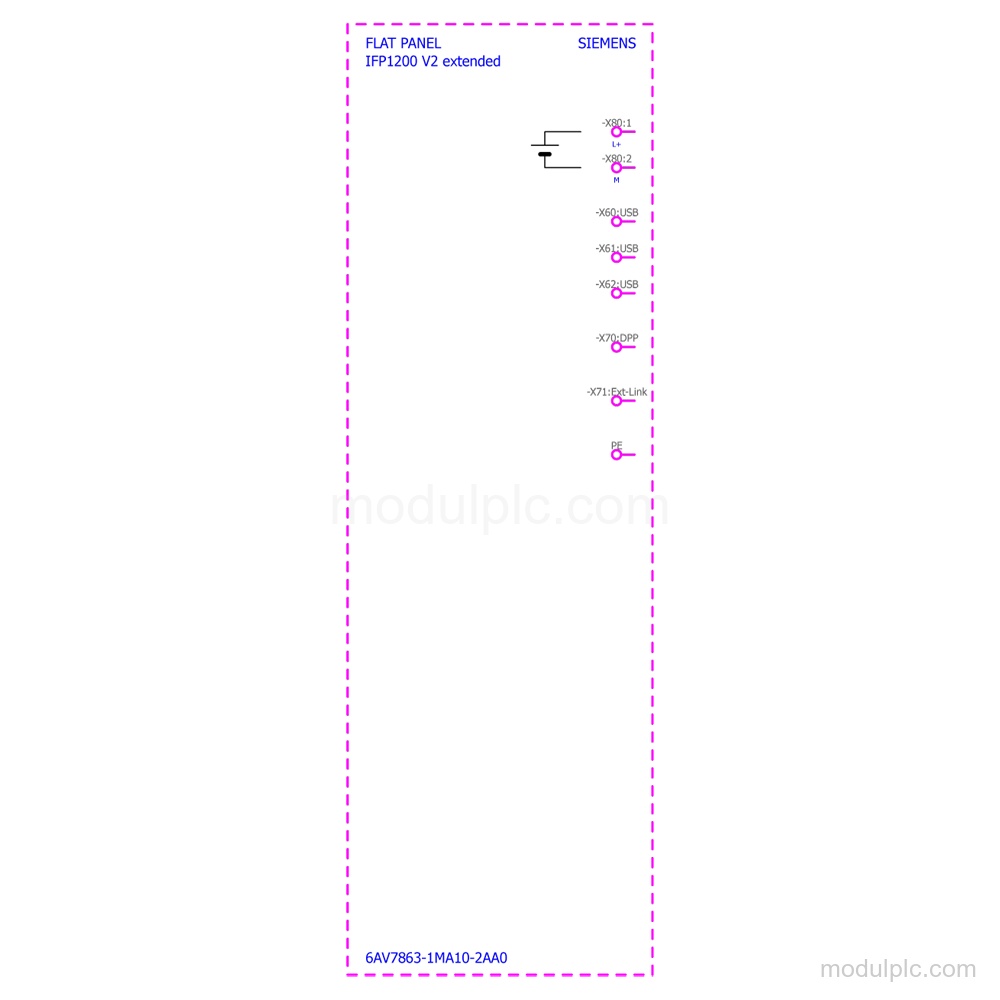

| Interfaces | DisplayPort V1.2; 2 USB 2.0 type A |
| Supply | 24 V DC; permissible range 19.2 V to 28.8 V |
| Installation | Built-in unit; front mounting; portrait and landscape possible |
| Protection | IP65 at the front; IP20 at the rear |
Key Features

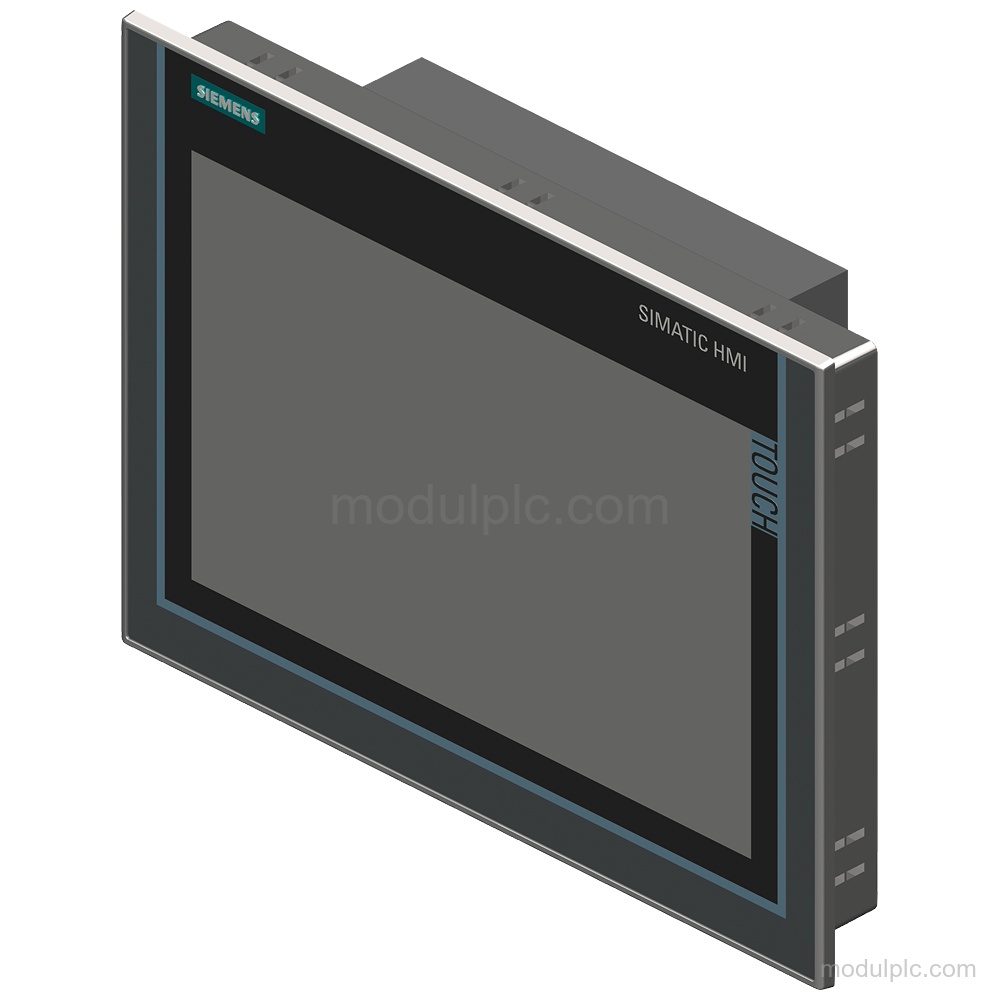

- 12-inch multi-touch display: TFT widescreen display with LED backlighting, 12.1 in screen diagonal, and projective-capacitive multi-touch operation.
- Image resolution and viewing angle: Image resolution: 1 280 x 800; viewing angle: 176° x 176°.
- Display and USB interfaces: DisplayPort V1.2 and 2 USB 2.0 type A interfaces; USB interfaces are on the rear side.
- 24 V DC supply: Rated supply: 24 V DC, PELV / SELV floating; permissible range: 19.2 V to 28.8 V.

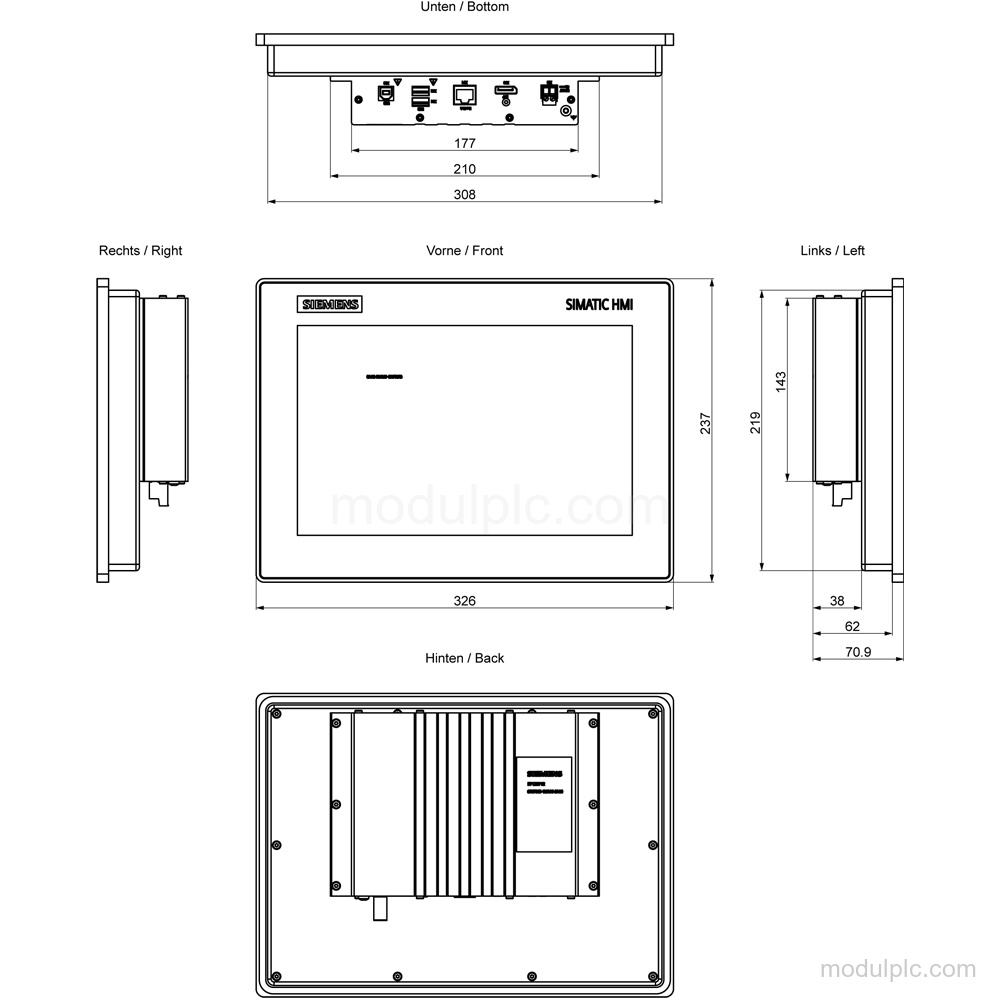

- Built-in installation: Built-in unit with front mounting; portrait and landscape mounting are possible.
- Front and rear protection: Protection rating: IP65 at the front and IP20 at the rear; the front has Enclosure Type 4, Type 4x, and Type 12.
Frequently Asked Questions
1. What display resolution does 6AV7863-1MA10-2AA0 have?
It has an image resolution of 1 280 x 800.
2. What interfaces are provided?
It has DisplayPort V1.2 and 2 USB 2.0 type A interfaces on the rear side.
3. What supply does the display require?
The rated supply is 24 V DC, PELV / SELV floating, with a permissible range of 19.2 V to 28.8 V.
4. How is the display installed?
It is a built-in unit with front mounting. Portrait and landscape mounting are possible.
