Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | IFP2200 Basic |

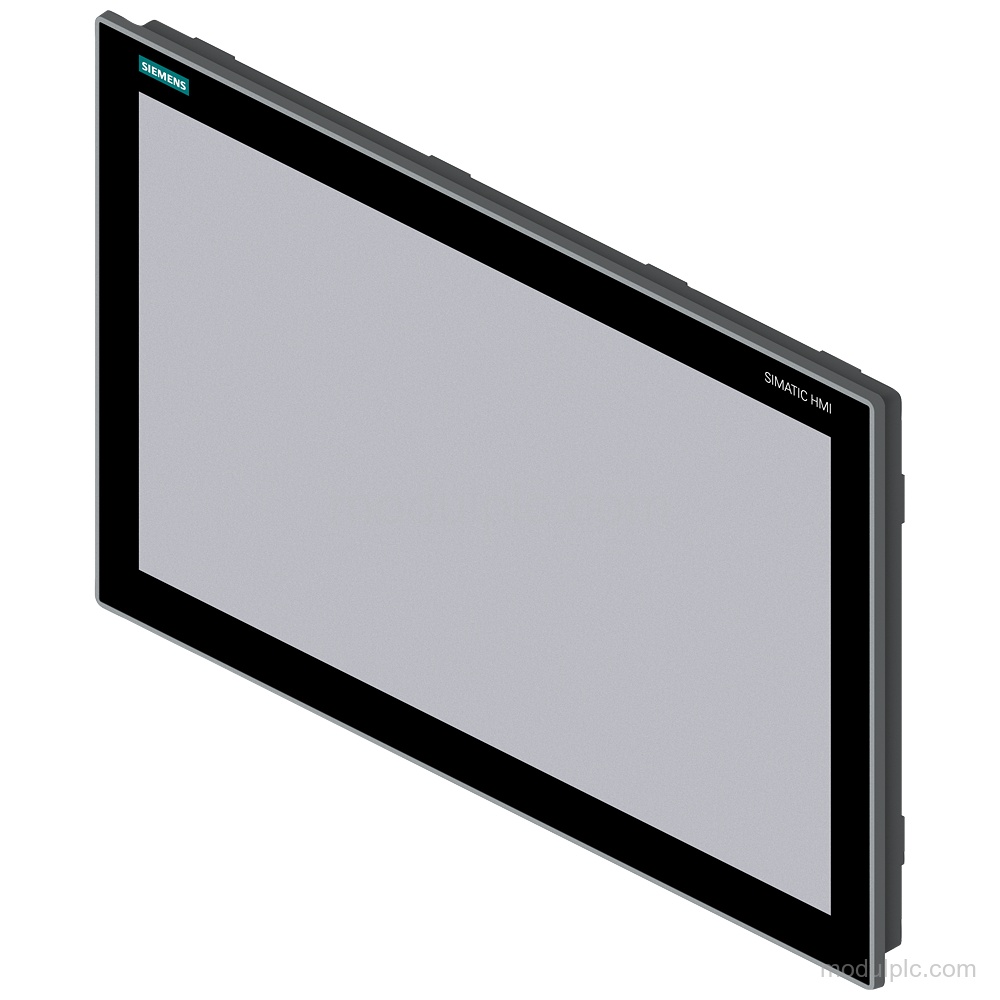

| Display type | TFT widescreen display, LED backlighting |
| Touch operation | Single-touch screen, Analog-resistive |
| Screen diagonal | 21.5 in; 22" |
| Image resolution | 1 920 x 1 080 pixels |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage | 20.4 V to 28.8 V DC |
| Video interfaces | DisplayPort; VGA |
| USB interfaces | 2; USB 2.0 (downstream) |
| Mounting | Built-in unit; VESA 100 x 100 integrated |
| Front degree of protection | IP65 |
Key Features
- 22" touch display: TFT widescreen display with LED backlighting, 21.5 in; 22" screen diagonal, and analog-resistive single-touch operation.
- Image resolution: Image resolution: 1 920 x 1 080 pixels, with 16 000 000 colors.
- 24 V DC supply: Rated supply voltage: 24 V DC; permissible range: 20.4 V to 28.8 V DC.
- Video and USB interfaces: DisplayPort and VGA interface; 2 USB 2.0 downstream interfaces and USB Type A touch interface.
- Mounting options: Built-in unit with front mounting, integrated VESA 100 x 100 mounting, and portrait or landscape installation.
- Front protection: Degree of protection at the front: IP65.
Frequently Asked Questions
1. What display and touch functions does the 6AV7862-2BF00-0AA0 have?
It has a TFT widescreen LED display with 1 920 x 1 080 resolution, 16 000 000 colors, and an analog-resistive single-touch screen.
2. What supply voltage does this flat panel use?
The rated supply is 24 V DC, with a permissible range of 20.4 V to 28.8 V DC.

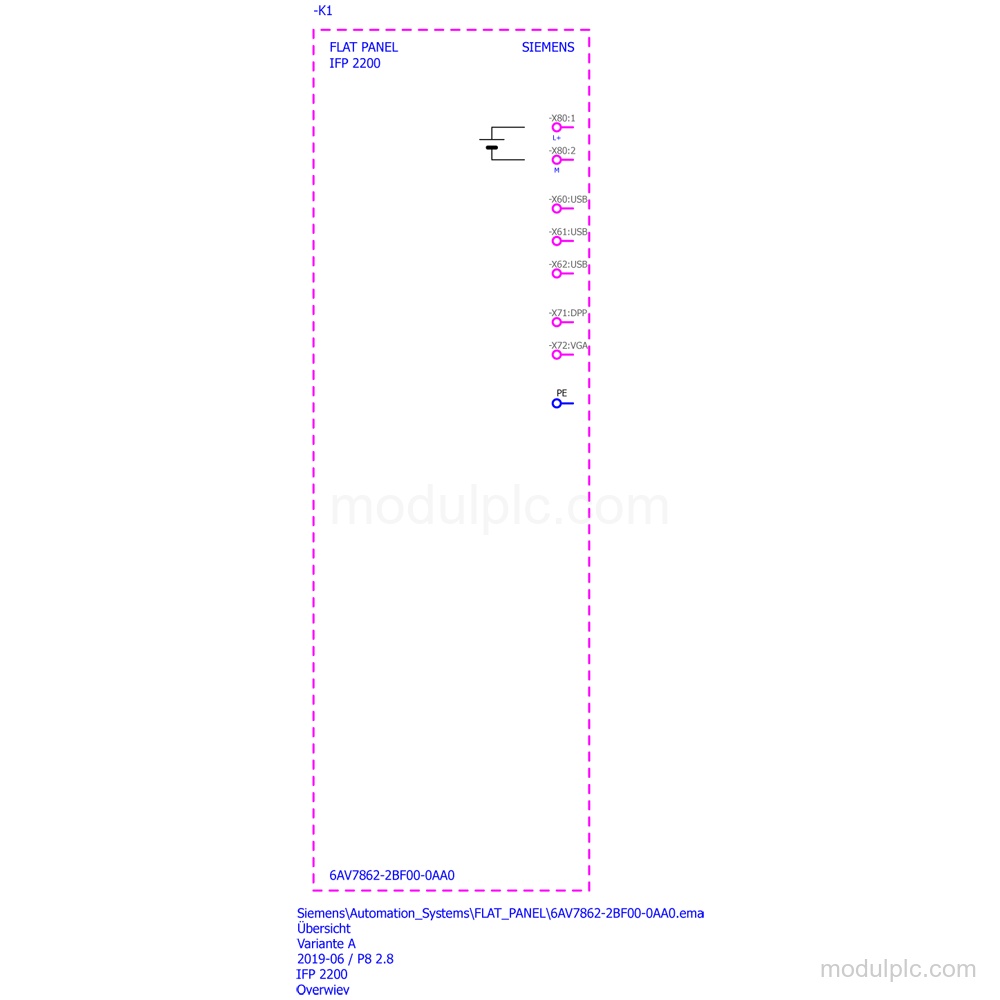

3. Which interfaces are provided?
It has DisplayPort and VGA interfaces, plus 2 USB 2.0 downstream interfaces and a USB Type A touch interface.

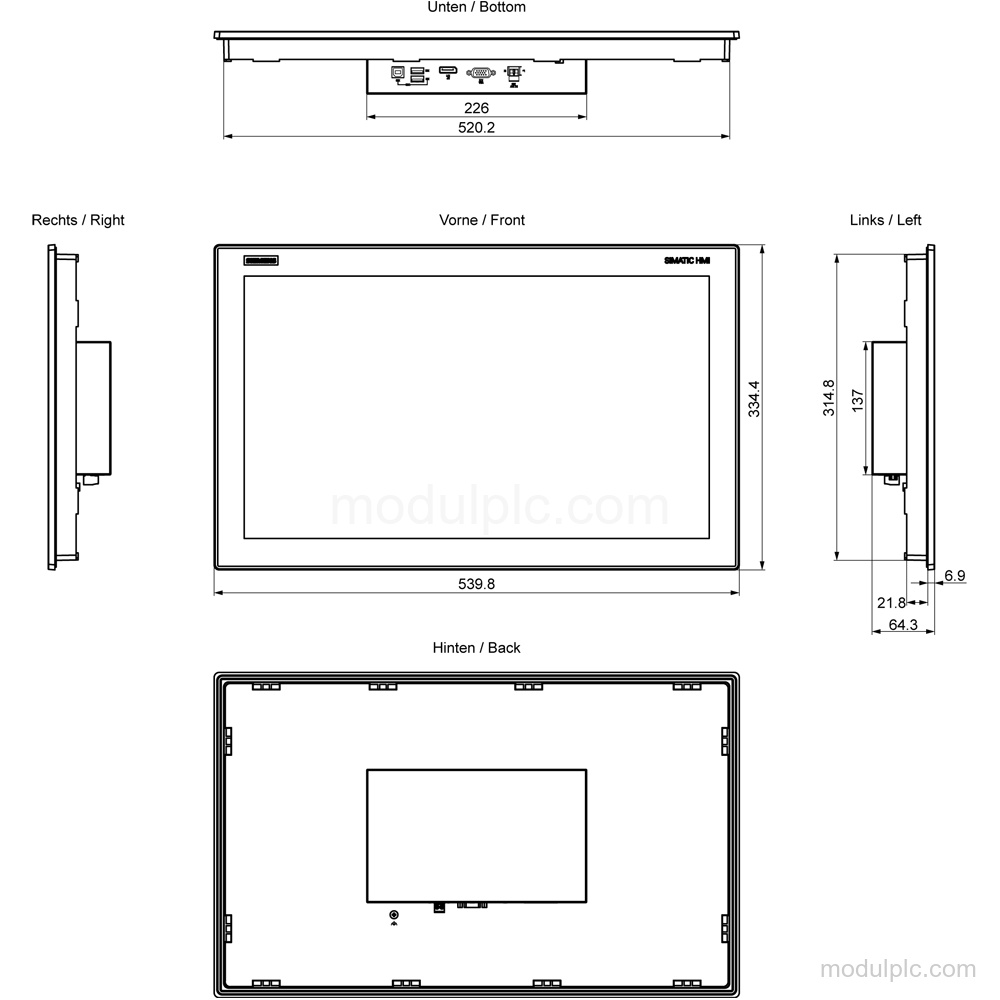

4. How can the 6AV7862-2BF00-0AA0 be mounted?
It is a built-in unit with front mounting and integrated VESA 100 x 100 mounting. Portrait and landscape installation are possible.
