Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | IFP1900 Basic |
| Display type | TFT widescreen display, LED backlighting |
| Touch operation | Single-touch screen, Analog-resistive |
| Screen diagonal | 18.5 in; 19" |
| Image resolution | 1 366 x 768 pixels |
| Video interfaces | DisplayPort; VGA |
| USB interfaces | 2; USB 2.0 (downstream) |
| Supply voltage | 24 V DC |
| Power loss | 19 W typ.; 60 W max. |
| Mounting | Built-in unit; VESA 100 x 100 integrated |
| Protection at front | IP65 |
Key Features
- 19" widescreen touch display: TFT widescreen display with LED backlighting, 18.5 in; 19" screen diagonal, and analog-resistive single-touch operation.
- 1366 x 768 image resolution: Image resolution: 1 366 x 768 pixels.
- DisplayPort and VGA interfaces: Video interfaces include DisplayPort and VGA.
- USB interfaces: 2 USB 2.0 downstream interfaces are provided; 2 USB interfaces are onboard at the rear, and the touch interface uses USB Type A.
- 24 V DC supply: Rated supply voltage: 24 V DC; permissible range: 20.4 V to 28.8 V.

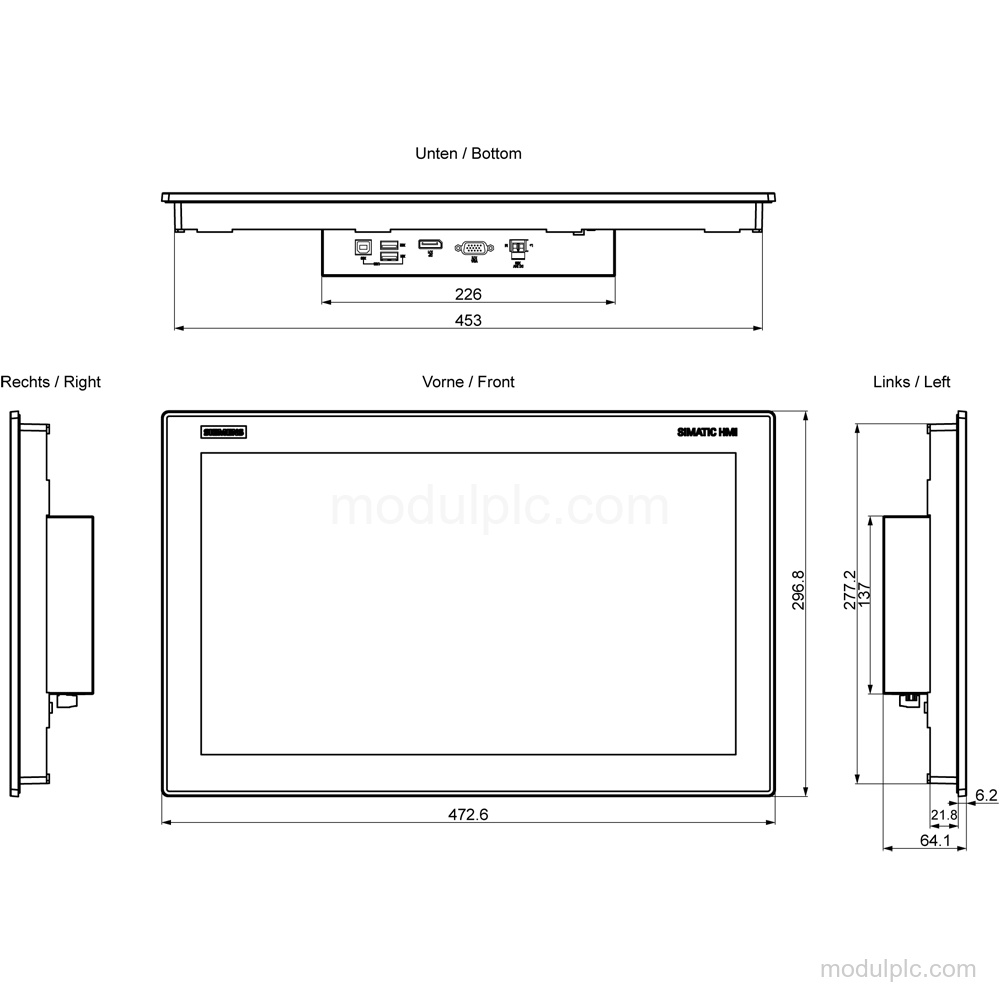

- Built-in and VESA mounting: Built-in unit with front mounting and integrated VESA 100 x 100 mounting; portrait and landscape mounting are possible.
Frequently Asked Questions
1. What display and touch type does the 6AV7862-2BE00-0AA0 have?
It has an 18.5 in; 19" TFT widescreen display with LED backlighting and an analog-resistive single-touch screen.
2. What resolution and video interfaces are available?
The image resolution is 1 366 x 768 pixels, with DisplayPort and VGA video interfaces.
3. What supply voltage does this panel require?
The rated supply is 24 V DC, with a permissible range from 20.4 V to 28.8 V.
4. How can the panel be mounted?
It is a built-in unit with front mounting and integrated VESA 100 x 100 mounting. Portrait and landscape mounting are possible.
