Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type designation | IOT2000 |
| Digital inputs | 10 |
| Input type | Sink/source |
| Signal "0" input voltage | < 5 V DC |
| Signal "1" input voltage | > 12 V DC |
| Signal "0" input current, max. | 0.9 mA |
| Signal "1" input current, typ. | 2.1 mA |
| Supply voltage | 24 V DC |
| Mounting | On Arduino interface |

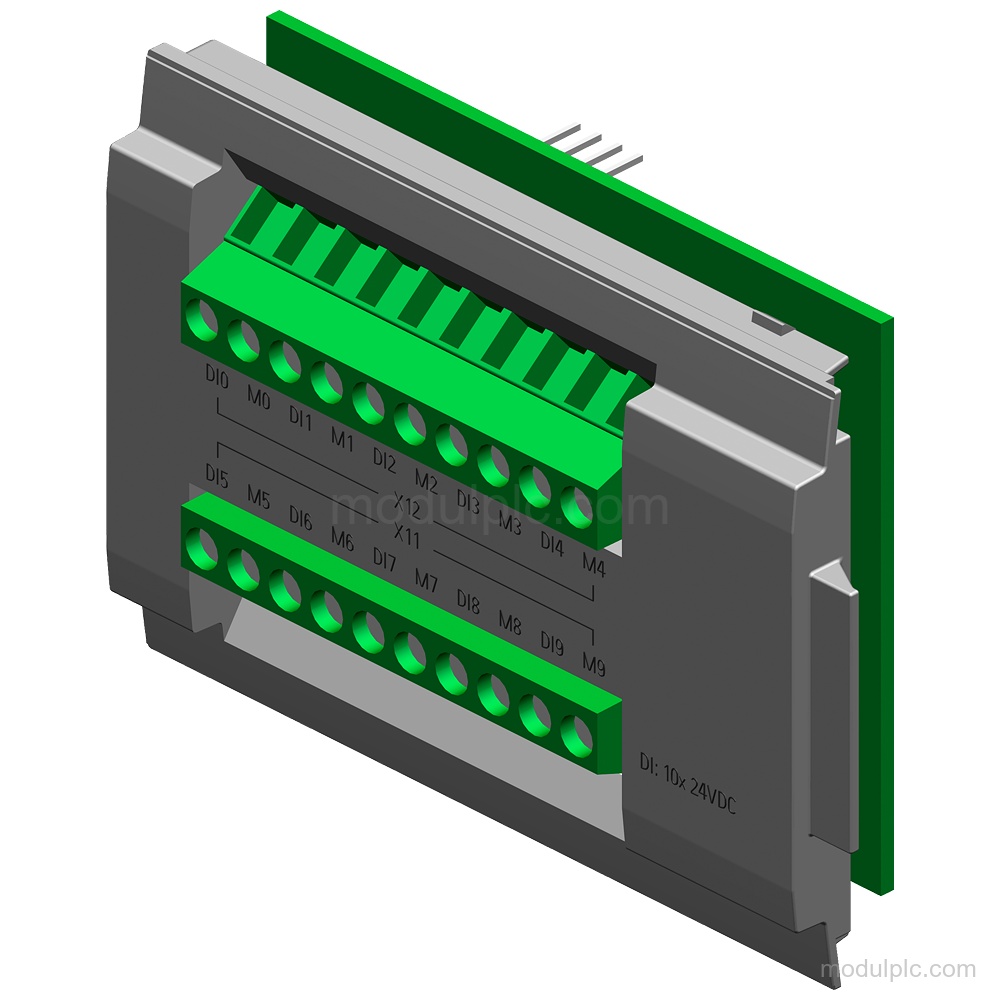

| Design | Plug-in card |
| Digital outputs | Without |
Applications
- Digital signal acquisition: The module acquires digital input signals through its 10 sink/source inputs.
Key Features

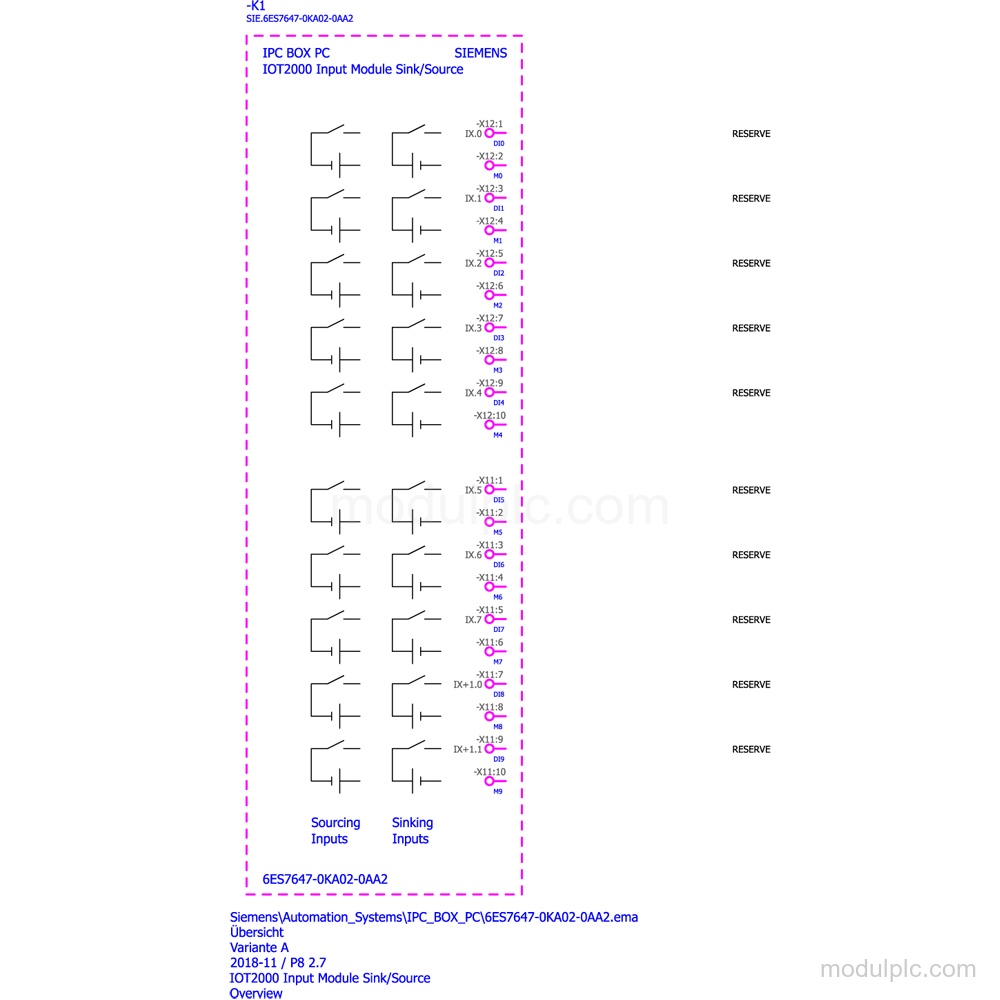

- 10 digital inputs: The sink/source input module provides 10 digital inputs.
- Digital input thresholds: Signal "0": < 5 V DC; signal "1": > 12 V DC.
- Input current: Signal "0" maximum permissible quiescent current: 0.9 mA; signal "1" typical input current: 2.1 mA.
- 24 V DC supply: Type of supply voltage: 24 V DC.
- Arduino interface mounting: The plug-in card is mounted on an Arduino interface.
- No digital outputs: Digital output type: without.
Frequently Asked Questions
1. How many digital inputs does Siemens 6ES7647-0KA02-0AA2 have?
It has 10 digital inputs.
2. What input voltage thresholds does this module use?
Signal "0" is < 5 V DC, and signal "1" is > 12 V DC.
3. What supply voltage does the module require?
The supply voltage is 24 V DC.
4. How is Siemens 6ES7647-0KA02-0AA2 mounted?
It is a plug-in card mounted on an Arduino interface.
5. Does this configuration include digital outputs?
It is without digital outputs.
