Product Overview
Technical Summary
| Parameter | Value |
|---|---|

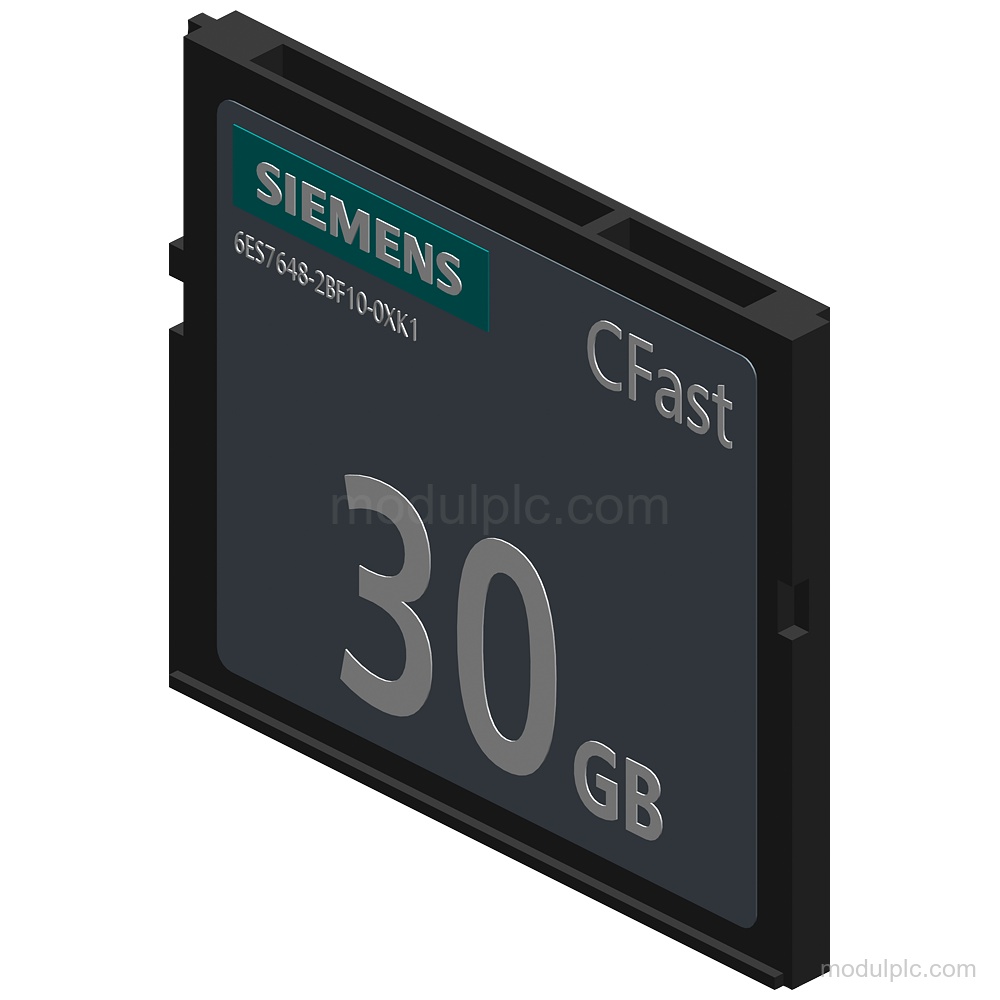

| Product type | CFast memory card |
| Memory size | 30 Gbyte; 1 year (data retention) |
| Memory type | CFast Type I |
| Memory design | Multi-level cell (MLC) |
| Write speed | up to 45 MBps (UDMA6) |
| Read speed | up to 200 MBps (UDMA6) |
| Rated DC supply | 3.3 V; ±5 % |
| Typical active power input | 1.3 W; Inactive 0.4 W |
| Write cycles MLC flash | 8.8; Terabytes, industrial quality |
Key Features
- CFast memory card: Product type designation: CFast memory card for IPCs and Open Controller devices with a corresponding slot.
- 30 GB storage: Memory size: 30 Gbyte; data retention: 1 year.
- CFast Type I, MLC: Memory type: CFast Type I. Design: Multi-level cell (MLC).
- Read and write speeds: Write speed: up to 45 MBps (UDMA6); read speed: up to 200 MBps (UDMA6).
- DC supply: Rated value: 3.3 V DC; ±5 %.
- Active power input: Typical active power input: 1.3 W; inactive: 0.4 W.
Frequently Asked Questions
1. What is the product type of Siemens 6ES7648-2BF10-0XK1?
It is a CFast memory card.
2. How much storage does the 6ES7648-2BF10-0XK1 provide?
It provides 30 Gbyte of memory with 1 year of data retention.
3. What supply does this CFast memory card use?
It uses 3.3 V DC with a rated tolerance of ±5 %.
4. What are the read and write speeds?
Write speed is up to 45 MBps (UDMA6), and read speed is up to 200 MBps (UDMA6).
