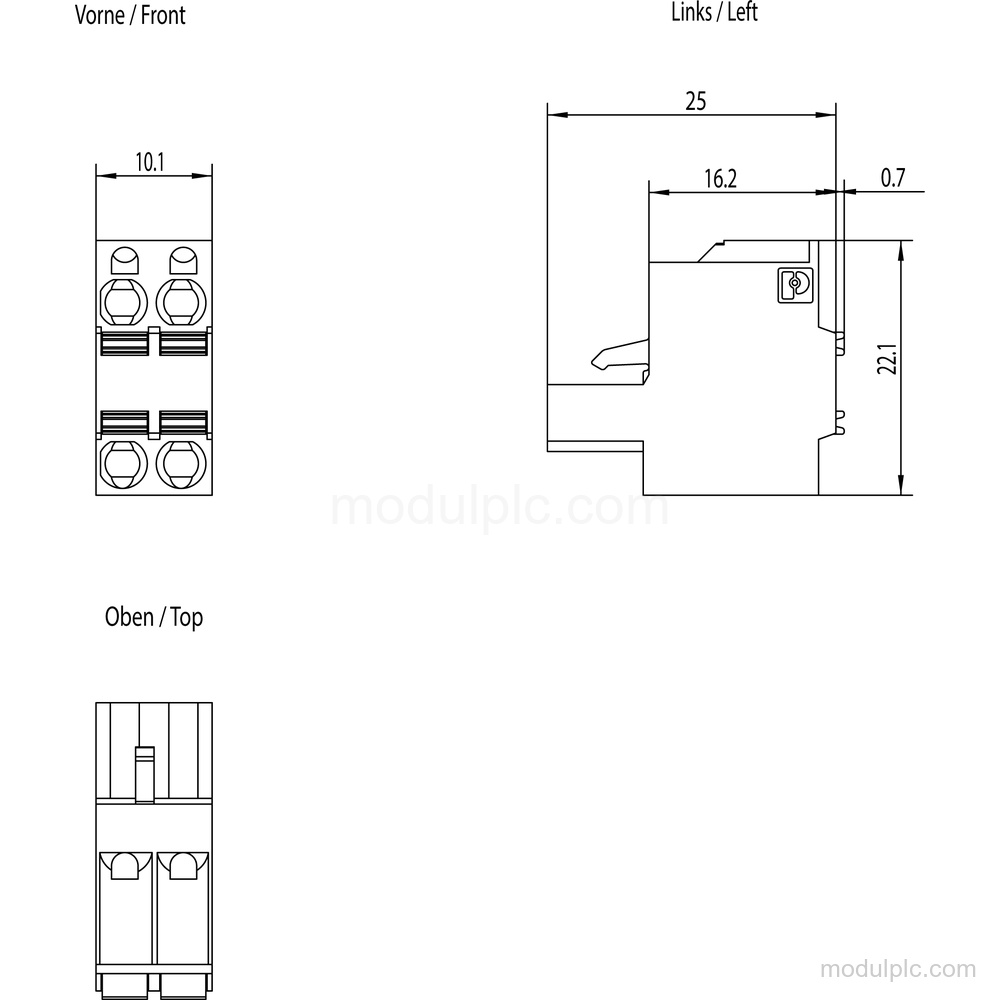

Product Overview
Technical Summary
| Parameter | Value |
|---|---|

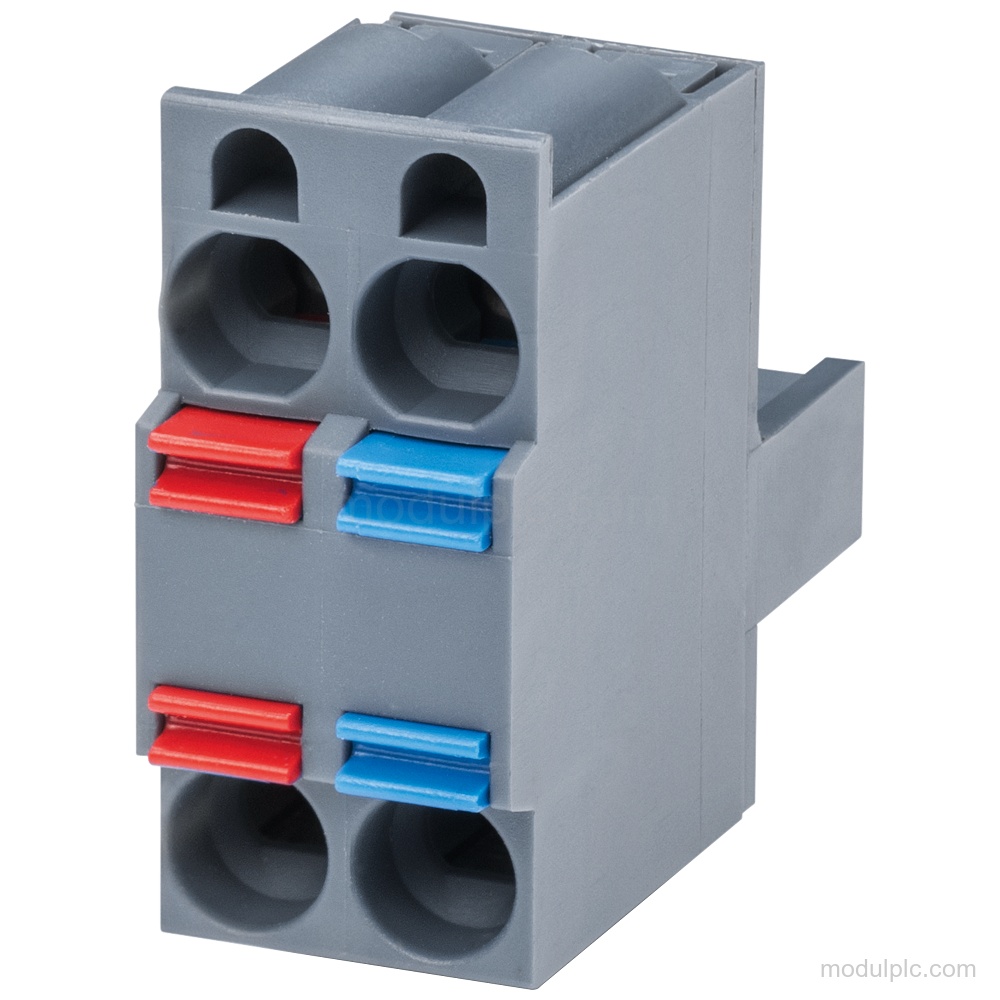

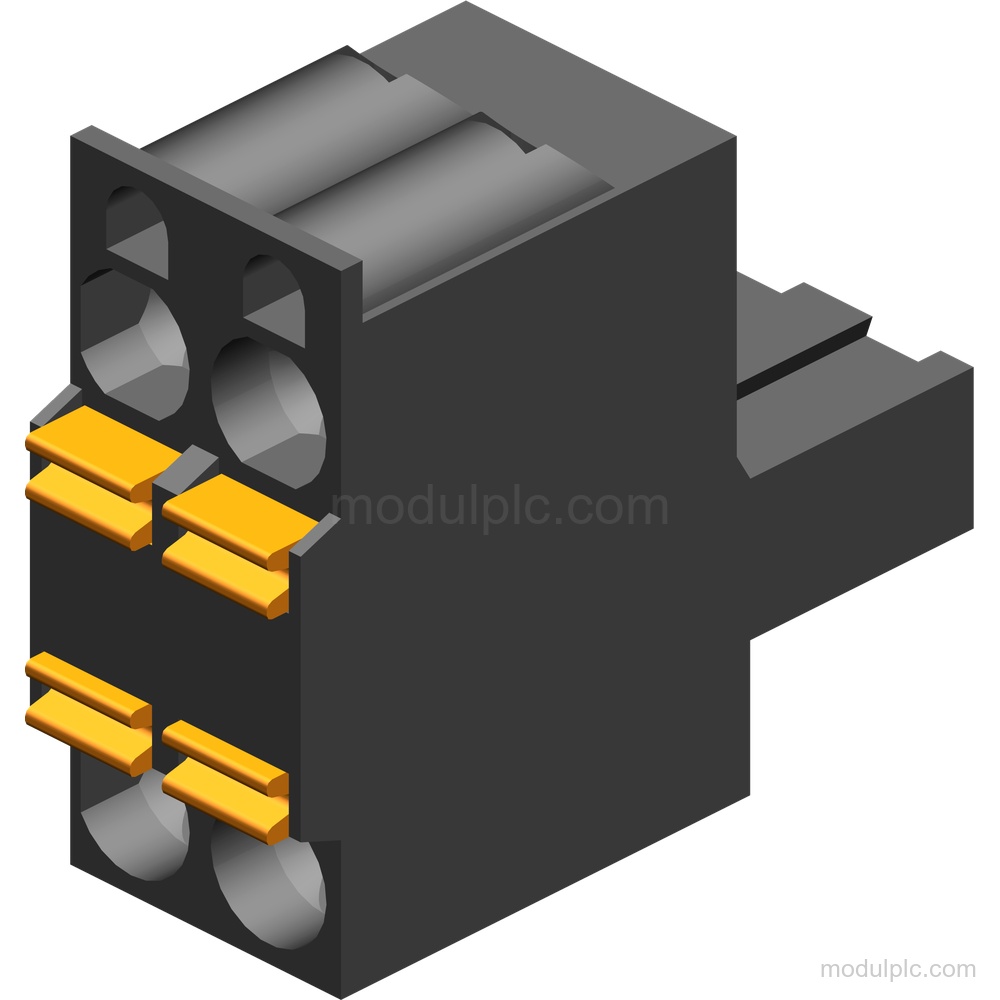

| Product type | Connector, female, 2×2-pin |
| HMI-side pins | 2; outgoing side jumpered internally, color-coded |
| Device-side pins | 4; female, spring-loaded terminals 0.75 mm2 |
| Supply voltage type | DC |
| Rated supply voltage | 24 V |
| Mounting | Wall mounting/direct mounting |
| HMI device connection | Can be plugged into SIMATIC HMI device |
| Scope of supply | 10 plugs |
Applications
- SIMATIC HMI device connection: Can be plugged into a SIMATIC HMI device.
Key Features
- Connector type: Female connector, 2×2-pin.
- HMI-side interface: 2 pins; the outgoing side is jumpered internally and color-coded.
- Device-side interface: 4 female, spring-loaded terminals for 0.75 mm2 conductors.
- Supply voltage: DC, rated value 24 V.
- Mounting: Wall mounting/direct mounting; can be plugged into a SIMATIC HMI device.
- Scope of supply: 10 plugs.
Frequently Asked Questions
1. What type of connector is Siemens 6ES7193-4JB00-0AA0?
It is a female connector, 2×2-pin.
2. How many pins and terminals does it have?
The HMI-side interface has 2 pins, with the outgoing side jumpered internally and color-coded. The device-side interface has 4 female, spring-loaded terminals for 0.75 mm2 conductors.
3. What supply voltage does it use?
The supply voltage type is DC, with a rated value of 24 V.
4. What is included in the configuration?
It is supplied as 10 plugs.
