Product Overview
Technical Summary
| Parameter | Value |
|---|---|

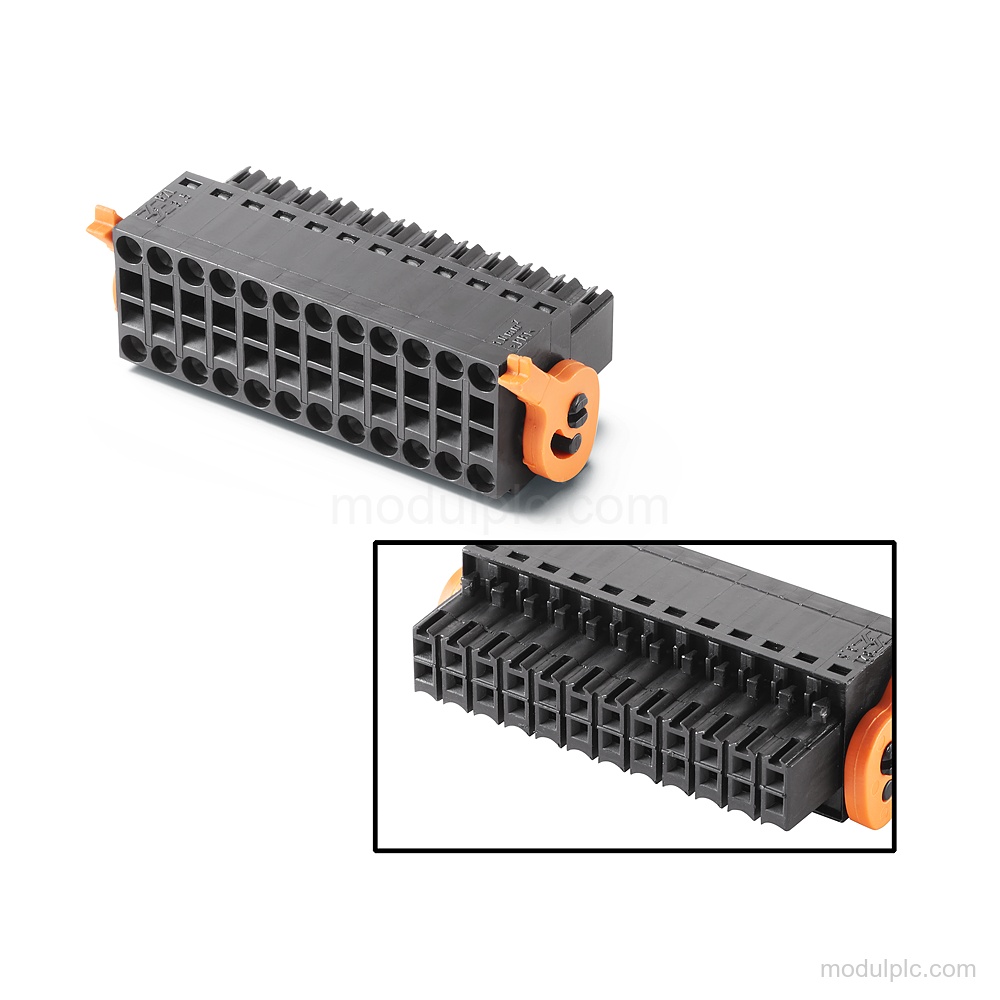

| Product type | Connector, female, 24-pin |
| HMI-side interface | 24 pins; Female |
| Device-side interface | 24 pins; Female, spring-loaded terminals 0.75 mm2 |
| Mounting | Wall mounting/direct mounting; can be plugged into SIMATIC HMI device |
| Rated value (DC) | 24 V |
| Scope of supply | 4 plugs |
Applications
- SIMATIC HMI device connection: Can be plugged into a SIMATIC HMI device for connection.
Key Features
- Connector type: Female, 24-pin connector.
- HMI-side interface: 24 pins; female.
- Device-side interface: 24 pins; female, with spring-loaded terminals for 0.75 mm2.
- Mounting: Wall mounting/direct mounting; can be plugged into a SIMATIC HMI device.
- Supply and scope: Rated value: 24 V DC. Scope of supply: 4 plugs.
Frequently Asked Questions
1. What type of connector is Siemens 6AV6671-3XY58-4AX0?
It is a female, 24-pin connector.
2. How many pins are on the HMI side?
The HMI side has 24 pins and is female.
3. What is provided on the device side?
The device side has 24 female pins with spring-loaded terminals for 0.75 mm2.
4. Can this connector be mounted directly?
Yes. It supports wall mounting/direct mounting and can be plugged into a SIMATIC HMI device.
5. How many plugs are supplied?
The scope of supply is 4 plugs.
