Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CompactFlash card |
| Memory size | 512 Mbyte |
| Memory type | CompactFlash memory CF type I |
| Supply voltage | DC |
| Rated supply value | 3.3 V |
| Selectable power supply | 3.3 V ±10% or 5.0 V ±10% |
| Current consumption | 75 mA, typical maximum value |
| Mounting position | Any, dependent on target device |

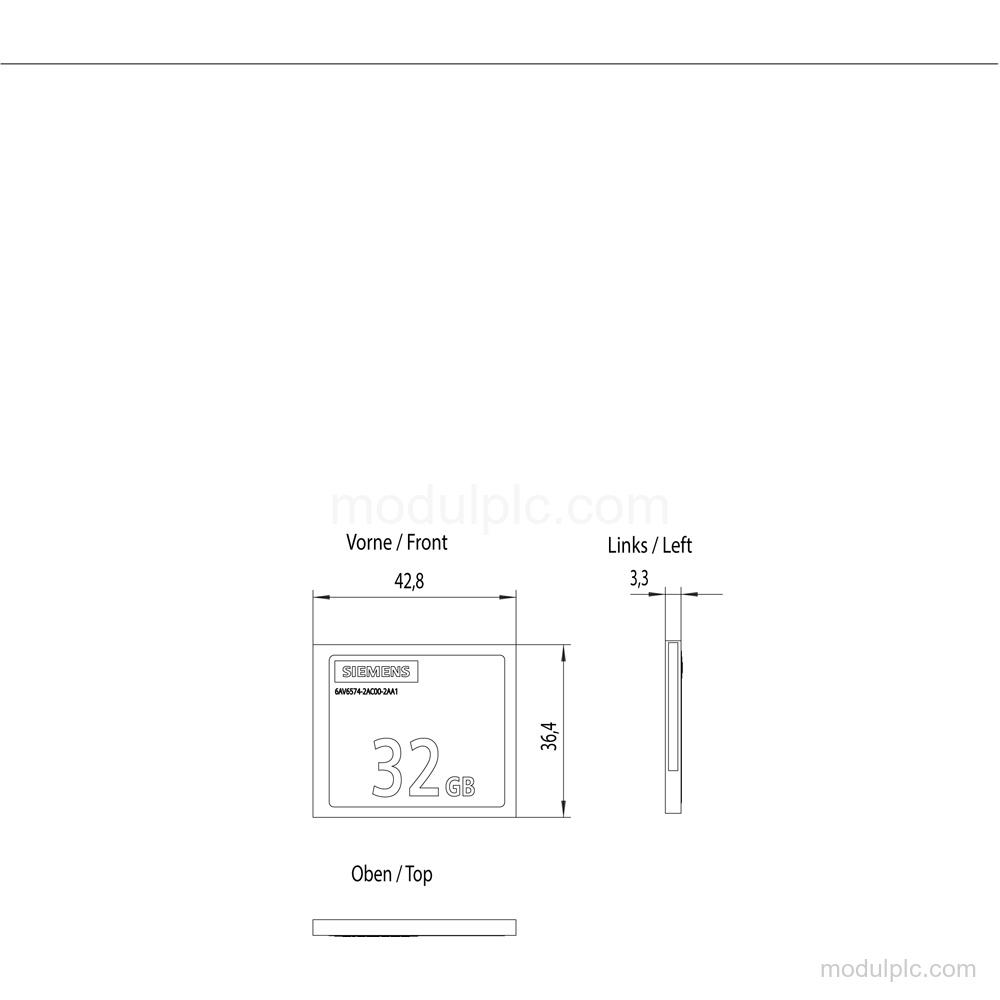

| Memory card design | Flat, standard |
| SLC flash write cycles | 2 million, consumer quality |
Key Features
- CompactFlash memory: Product type: CompactFlash card with CompactFlash memory CF type I and CompactFlash design.
- Memory capacity: Memory size: 512 Mbyte.
- DC supply: Rated value: 3.3 V; selectable power supply: 3.3 V ±10% or 5.0 V ±10%.
- Current consumption: Current consumption: 75 mA, typical maximum value.
- Mounting flexibility: Mounting position is any, dependent on the target device; portrait and landscape mounting are possible.
- Scope of supply: Scope of supply: 1 memory card. Write protection switch: No.
Frequently Asked Questions
1. What is the Siemens 6AV6574-2AC00-2AA1?
It is a SIMATIC HMI CompactFlash memory card for HMI devices and IPCs with a corresponding slot.
2. How much memory does the 6AV6574-2AC00-2AA1 provide?
The memory size is 512 Mbyte.
3. What supply voltage does this memory card use?
The rated value is 3.3 V. The selectable power supply is 3.3 V ±10% or 5.0 V ±10%.
4. How can the card be mounted?
The mounting position is any, dependent on the target device. Mounting in portrait and landscape format is possible.
5. What is included in the configuration?
The scope of supply is 1 memory card.
