Product Overview
Technical Summary
| Parameter | Value |
|---|---|

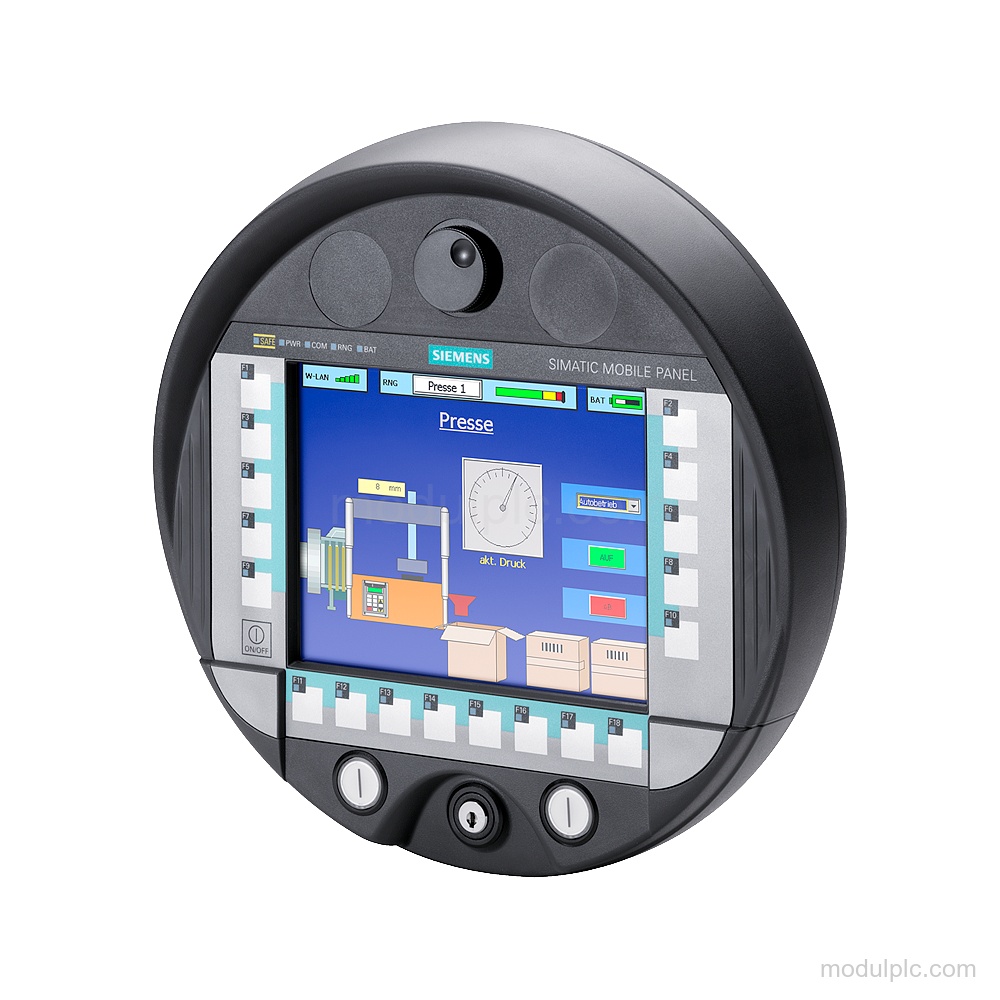

| Product type | Mobile Panel 277 IWLAN V2 |
| Display | 7.5 in TFT color display, 65 536 colors |
| Display resolution | 640 pixel × 480 pixel |
| Function keys | 18, all with LEDs |

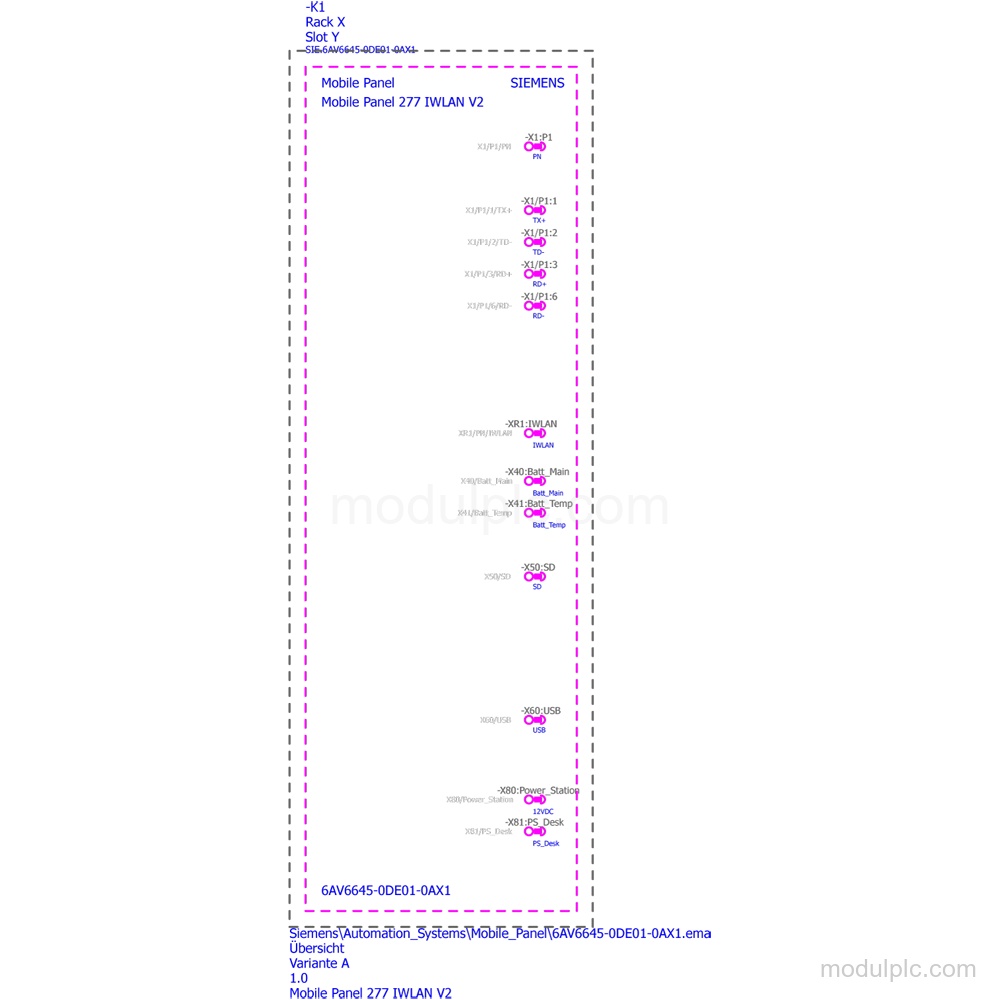

| Interfaces | 1x Ethernet (RJ45), 1 USB, 1 wireless interface |
| Protocols | PROFINET IO, TCP/IP, MODBUS TCP/IP, Allen-Bradley E/IP C.Logix |
| Power supply | Via charging station or table power supply; DC |
| Main rechargeable battery | 7.2 V, 5 100 mA·h |
| Touch operation | Analog, resistive |
| Wireless LAN | Supports rapid roaming |
| Product status | Product cancellation |
Key Features
- Display and controls: 7.5 in TFT color display with 65 536 colors and 640 pixel × 480 pixel resolution; control elements include keys and analog, resistive touch operation.
- Function keys: 18 function keys with LEDs, plus numeric and alphanumeric keyboards and multi-key operation for 2 operations.
- Operator controls: Has a handwheel, key-operated switch and illuminated pushbutton; stop button and acknowledgement button are not included.
- Interfaces and wireless communication: 1x Ethernet (RJ45), 1 USB interface and 1 wireless interface; WLAN supports rapid roaming.
- Protocols: Supports PROFINET IO, TCP/IP, MODBUS TCP/IP and Allen-Bradley E/IP C.Logix; PROFIsafe and PROFIBUS are not supported.
- Power and battery: Power supply is via charging station or table power supply, with DC supply voltage; main rechargeable battery is 7.2 V and 5 100 mA·h.
Frequently Asked Questions
1. What display does the Siemens 6AV6645-0DE01-0AX1 have?
It has a 7.5 in TFT color display with 65 536 colors and 640 pixel × 480 pixel resolution.
2. How many function keys are included?
It has 18 function keys, and all 18 have LEDs.
3. Which interfaces and protocols does this Mobile Panel support?
It has 1x Ethernet (RJ45), 1 USB interface and 1 wireless interface. It supports PROFINET IO, TCP/IP, MODBUS TCP/IP and Allen-Bradley E/IP C.Logix.
4. What is included in the power configuration?
It includes 1 main battery. The charging station and table power supply must be ordered separately.
