Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | Mobile Panel 277 IWLAN V2 |
| Display | 7.5 in TFT color display |
| Resolution | 640 pixel × 480 pixel |
| Control elements | Keys and analog, resistive touch |
| Ethernet interface | 1x Ethernet (RJ45) |
| Wireless interface | 1 |
| Supported protocols | PROFINET IO, TCP/IP, MODBUS TCP/IP |
| Main rechargeable battery | 7.2 V, 5 100 mA·h |
Key Features

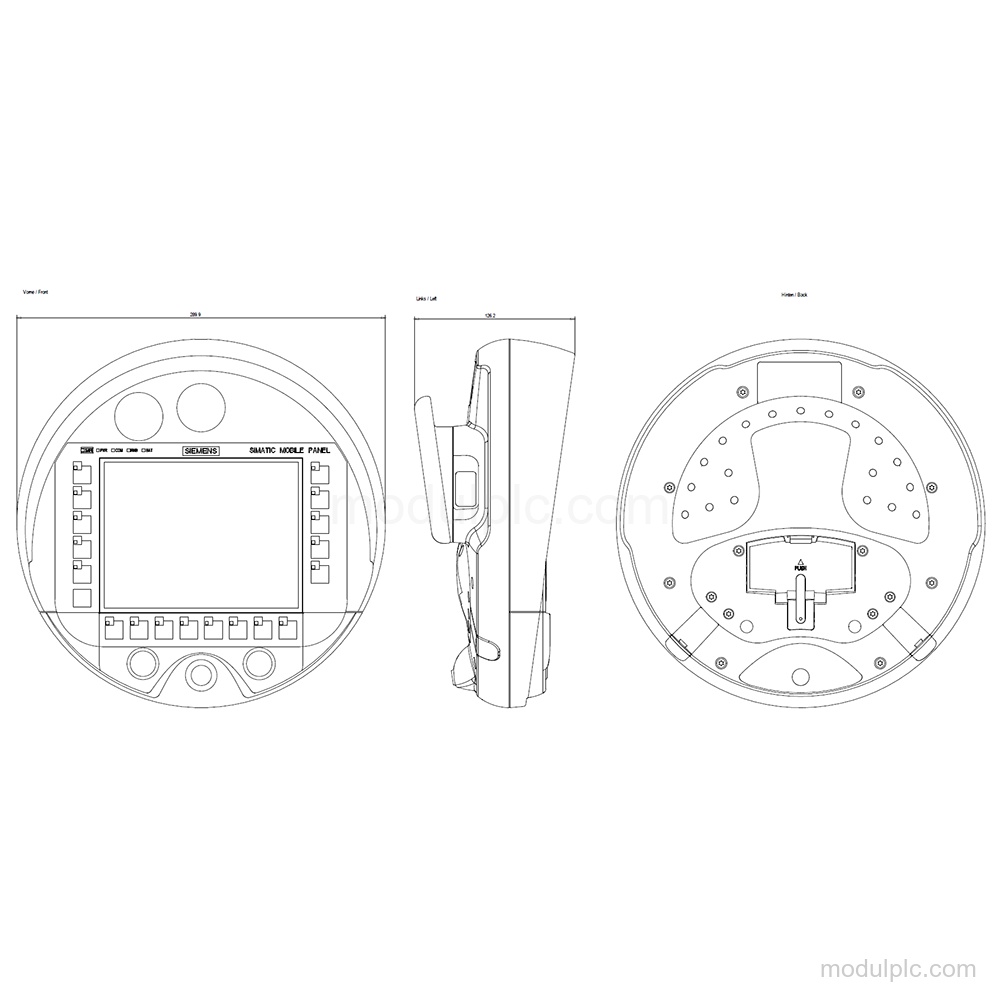

- Display and touch: 7.5 in TFT color display with 65 536 colors and 640 pixel × 480 pixel resolution; analog, resistive touch screen.
- Operator controls: Keys and touch, 18 function keys with LEDs, numeric and alphanumeric keyboard, and multi-key operation with 2 operations.

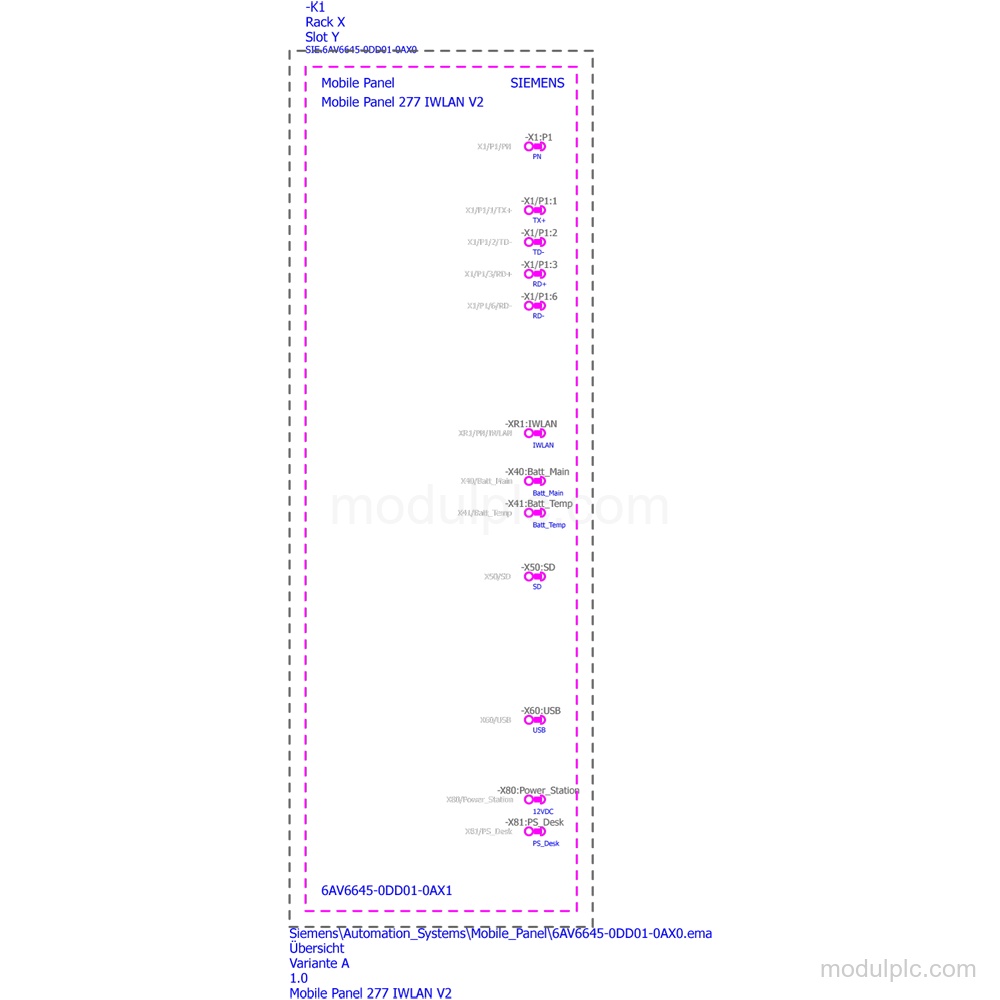

- Interfaces: 1x Ethernet (RJ45), 1 USB interface, 1 wireless interface and 1 MMC/SD card slot.
- Wireless and protocols: Wireless LAN with rapid roaming; supports PROFINET IO, TCP/IP and MODBUS TCP/IP.
- Power supply: DC supply via charging station or table power supply; 7.2 V rated main rechargeable battery with 5 100 mA·h capacity.
- Configuration and lifecycle: Customer-specific configuration; spare part and product cancellation. The charging station and table power supply are ordered separately.
Frequently Asked Questions
1. What display does the 6AV6645-0DD01-0AX1 have?
It has a 7.5 in TFT color display with 65 536 colors and 640 pixel × 480 pixel resolution, plus analog, resistive touch operation.
2. Which interfaces are available on this Mobile Panel?
It has 1x Ethernet (RJ45), 1 USB interface, 1 wireless interface and 1 MMC/SD card slot.
3. Which protocols does the 6AV6645-0DD01-0AX1 support?
It supports PROFINET IO, TCP/IP and MODBUS TCP/IP. PROFIsafe and PROFIBUS are not supported.
4. How is the Mobile Panel supplied with power?
The DC power supply is provided via a charging station or table power supply. The main rechargeable battery is rated at 7.2 V with 5 100 mA·h capacity.
5. What is included in the selected configuration?
It includes 1 main battery. The charging station and table power supply are not included and must be ordered separately.
