Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | Mobile Panel 277 |
| Display | 7.5 in TFT color display |
| Display resolution | 640 pixel × 480 pixel |
| Control elements | Keys and analog resistive touch |
| Function keys | 18, with LEDs |
| Interfaces | 1x RS 422, 1x RS 485, 1x Ethernet (RJ45), 1 USB |
| Ethernet speed | Maximum 12 Mbit/s |
| Protocols | PROFINET IO, PROFIBUS, EtherNet/IP, TCP/IP and MODBUS |
| Supply | DC via connection box |
| User data memory | 6 Mbyte |
| Main memory | 128 Mbyte maximum |
Key Features
- Display and touch: The panel has a 7.5 in TFT color display with 65 536 colors and 640 pixel × 480 pixel resolution. Its analog resistive touch screen supports touch operation.
- Control elements: Control elements include keys and touch, 18 function keys with LEDs, numeric, alphanumeric and hexadecimal keyboards, multi-key operation, a handwheel, keyswitch and stop button.
- Operator controls: The panel has an integrated acknowledgement button and two illuminated pushbuttons.

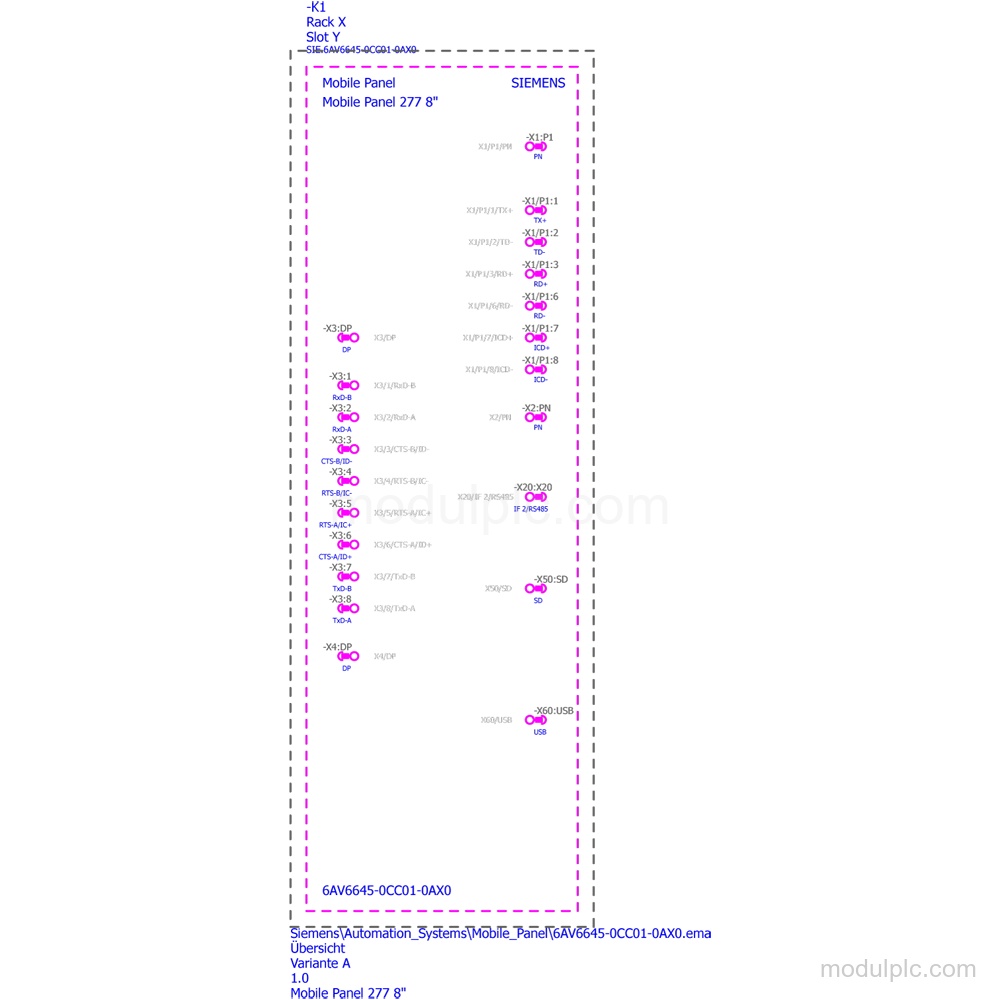

- Interfaces: Interfaces include 1x RS 422, 1x RS 485, 1x Ethernet (RJ45) with a maximum of 12 Mbit/s, 1 USB interface and 1 MMC/SD card slot.
- Protocols: Supported protocols include PROFINET IO, PROFIBUS, EtherNet/IP, TCP/IP and MODBUS.
- Supply and memory: The DC power supply is provided via a connection box. Memory is Flash / RAM, with 6 Mbyte available for user data and 128 Mbyte maximum main memory.
Frequently Asked Questions
1. What display does the Siemens 6AV6645-0CC01-0AX0 have?
It has a 7.5 in TFT color display with 65 536 colors and 640 pixel × 480 pixel resolution.
2. How many function keys does the Mobile Panel 277 have?
It has 18 function keys, and all 18 have LEDs.
3. Which interfaces are available on this model?
It has 1x RS 422, 1x RS 485, 1x Ethernet (RJ45) with a maximum of 12 Mbit/s, and 1 USB interface.
4. Which protocols does the panel support?
It supports PROFINET IO, PROFIBUS, EtherNet/IP, TCP/IP and MODBUS.
5. What is included in the operator control configuration?
The panel has a handwheel, keyswitch, stop button, acknowledgement button and two illuminated pushbuttons.
