Product Overview
Technical Summary

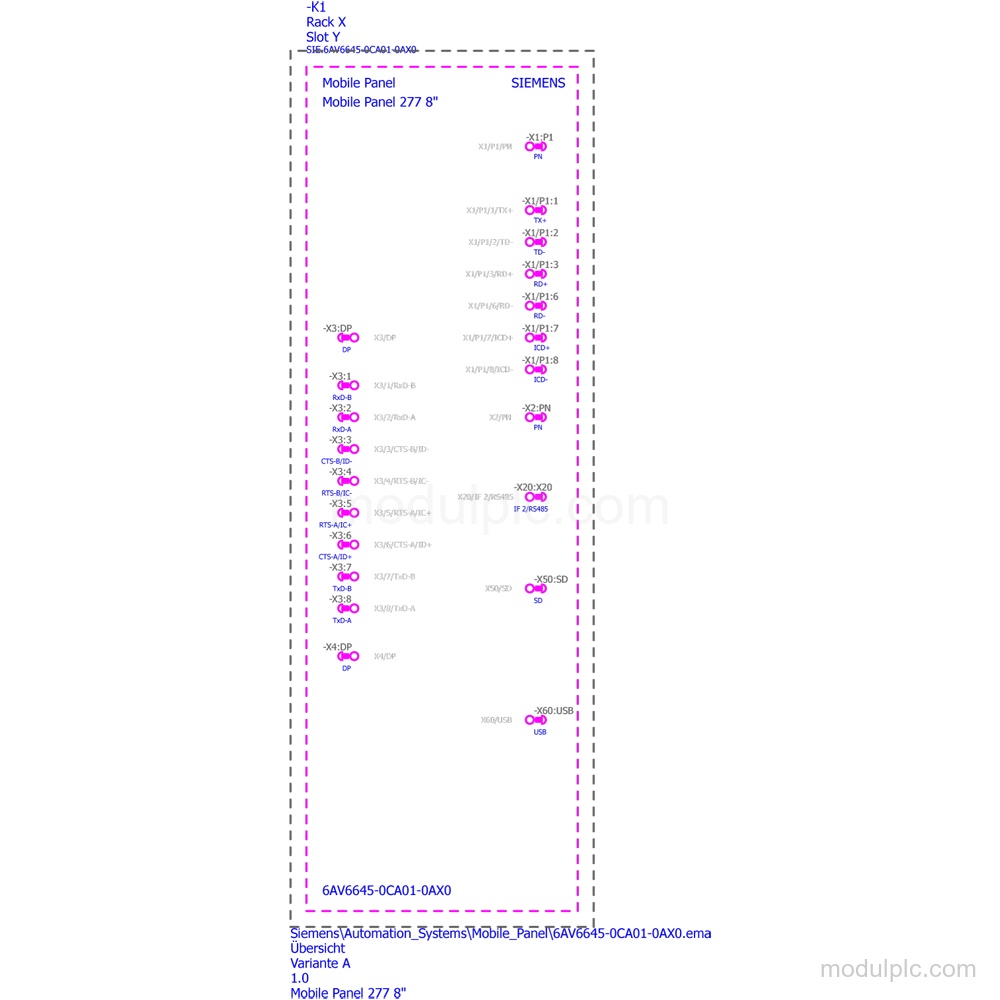

| Parameter | Value |
|---|---|
| Product type | Mobile Panel 277 |
| Display | 7.5 in TFT color display, 65 536 colors |
| Display resolution | 640 pixel × 480 pixel |
| Function keys | 18, with LEDs |
| Touch screen | Analog, resistive |
| Interfaces | 1 USB, 1 RS 422, 1 RS 485, 1 Ethernet (RJ45), max. 12 Mbit/s |
| Protocols | PROFINET IO, PROFIBUS, EtherNet/IP, TCP/IP and MODBUS |
| Power supply | DC via connection box |
| Processor | ARM, 520 MHz |
| User data memory | 6 Mbyte |
| Main memory capacity, max. | 128 Mbyte |
Key Features
- Display and touch operation: 7.5 in TFT color display with 65 536 colors and 640 pixel × 480 pixel resolution; analog resistive touch screen.
- Operator controls: Keys and touch, 18 function keys with LEDs, numeric, alphanumeric and hexadecimal keyboards, and 2 multi-key operations.
- Interfaces and protocols: 1 USB interface, 1 RS 422 interface, 1 RS 485 interface and 1 Ethernet interface with RJ45; Ethernet is max. 12 Mbit/s. Supports PROFINET IO, PROFIBUS, EtherNet/IP, TCP/IP and MODBUS.
- Power supply and processor: DC power supplied via connection box; ARM processor at 520 MHz.
- Memory and card slot: Flash / RAM memory, 6 Mbyte available for user data, 128 Mbyte maximum main memory capacity, and 1 MMC/SD card slot.
- Configuration and lifecycle: Customer-specific configuration; configurable with WinCC flexible Standard Version 2005 SP1 or higher or TIA Portal V11 to V14. Product cancellation.
Frequently Asked Questions
1. What display and touch functions does the 6AV6645-0CA01-0AX0 have?
It has a 7.5 in TFT color display with 65 536 colors and 640 pixel × 480 pixel resolution, plus an analog resistive touch screen.
2. How many function keys and interfaces does this Mobile Panel 277 have?
It has 18 function keys with LEDs, 1 USB interface, 1 RS 422 interface, 1 RS 485 interface and 1 Ethernet interface with RJ45.
3. Which protocols does the 6AV6645-0CA01-0AX0 support?
It supports PROFINET IO, PROFIBUS, EtherNet/IP, TCP/IP and MODBUS.
4. How is the Mobile Panel 277 supplied with power?
The power supply is DC via a connection box.
