Product Overview
Technical Summary
| Parameter | Value |
|---|---|

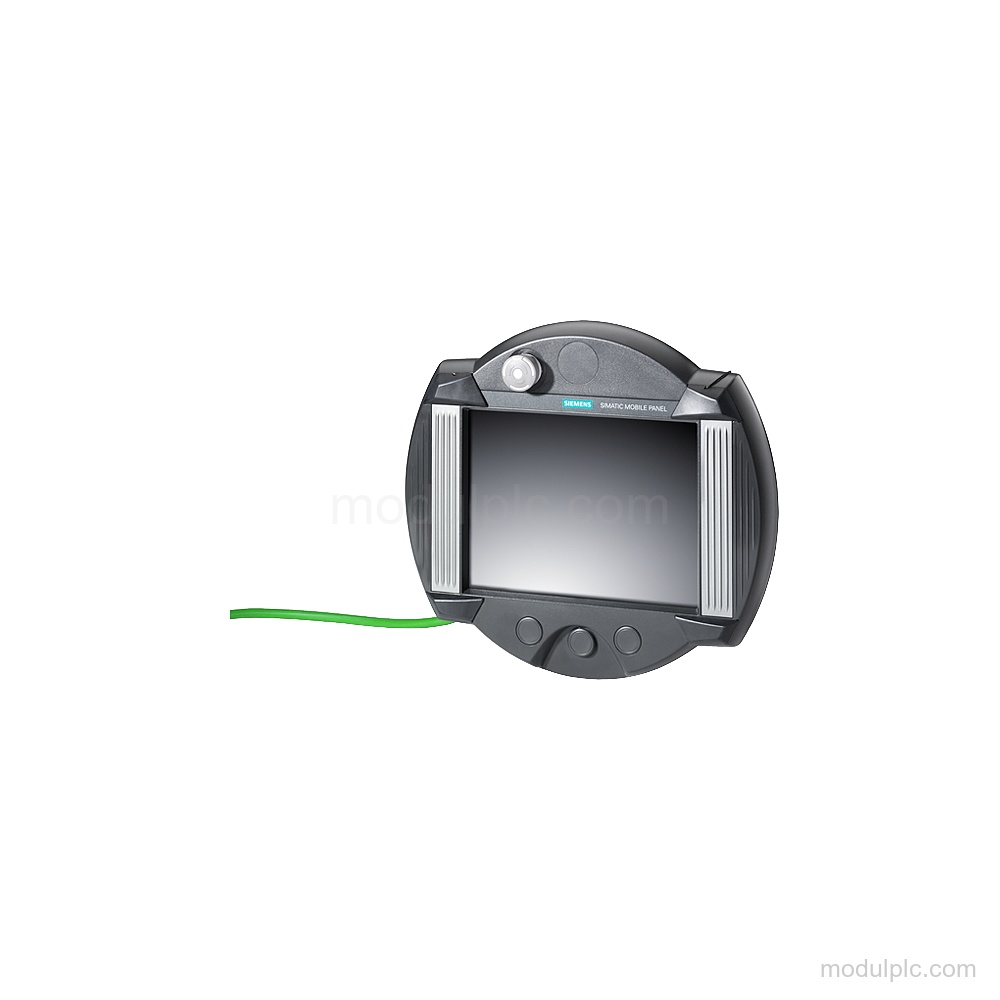

| Product type | Mobile Panel 277 |
| Display | 10.4 in TFT color display, 65 536 colors |
| Touch operation | Analog, resistive touch screen |
| Resolution | 800 pixel × 600 pixel |

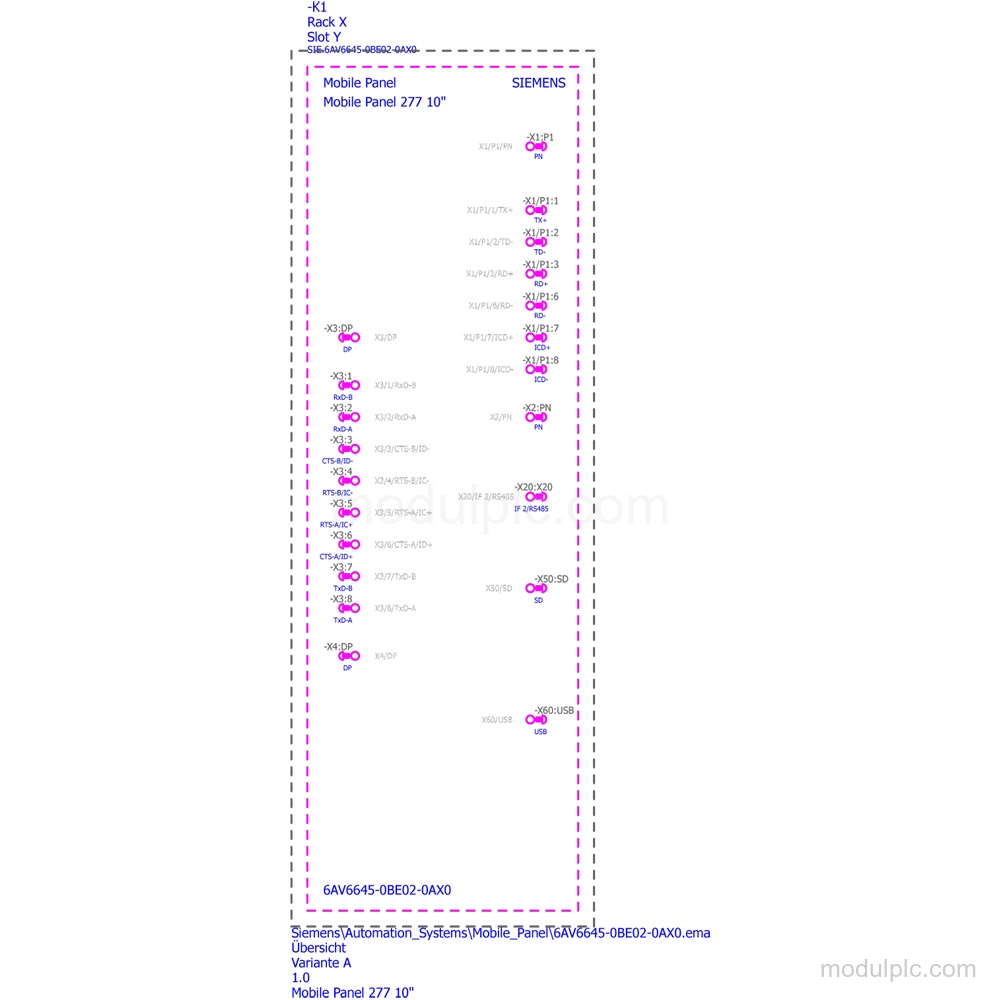

| Interfaces | 1x RS 422, 1x RS 485, 1x Ethernet (RJ45) (max. 12 Mbit/s), 1 USB |
| Supported protocols | PROFINET IO, PROFIBUS, EtherNet/IP, MPI, TCP/IP, MODBUS |
| Power supply | Via connection box; DC |
| Operator controls | Acknowledgement button and stop button |
Key Features
- 10.4 in touch display: TFT color display with 65 536 colors, 800 pixel horizontal resolution, 600 pixel vertical resolution, and analog resistive touch operation.
- Integrated operator controls: Has an acknowledgement button, stop button, numeric keyboard, alphanumeric keyboard, and hexadecimal keyboard.
- Communication interfaces: Has 1x RS 422, 1x RS 485, and 1x Ethernet (RJ45) with a maximum of 12 Mbit/s, plus 1 USB interface.
- Supported protocols: Supports PROFINET IO, PROFIBUS, EtherNet/IP, MPI, TCP/IP, MODBUS, and other bus systems.
- Connection and supply: Power supply is via connection box; supply voltage type is DC. Mouse, keyboard, and barcode reader connections are USB / USB / USB.
- Configuration software: Configurable with WinCC flexible Standard Version 2008 or higher or TIA Portal V11 to V14.
Frequently Asked Questions
1. What display does the 6AV6645-0BE02-0AX0 have?
It has a 10.4 in TFT color display with 65 536 colors, 800 pixel × 600 pixel resolution, and analog resistive touch operation.
2. Which interfaces are available on this Mobile Panel 277?
It has 1x RS 422, 1x RS 485, 1x Ethernet (RJ45) (max. 12 Mbit/s), and 1 USB interface.
3. Which protocols does the 6AV6645-0BE02-0AX0 support?
It supports PROFINET IO, PROFIBUS, EtherNet/IP, MPI, TCP/IP, MODBUS, and other bus systems.
4. Which operator controls are integrated?
It has an acknowledgement button and a stop button, along with numeric, alphanumeric, and hexadecimal keyboards.
5. Which software can configure this Mobile Panel 277?
It is configurable with WinCC flexible Standard Version 2008 or higher or TIA Portal V11 to V14.
