Product Overview
Technical Summary
| Parameter | Value |
|---|---|

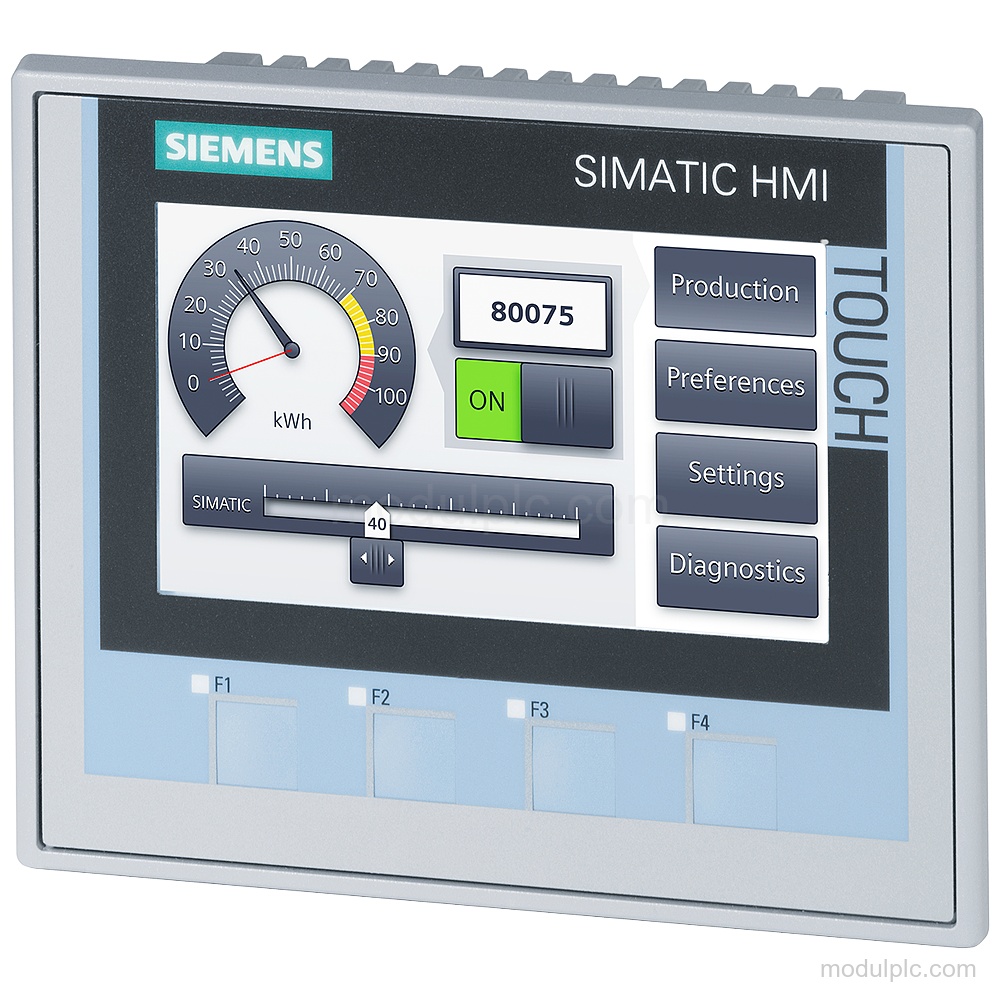

| Product type | KTP400 Comfort |
| Display | 4.3 in TFT, 480 pixel × 272 pixel |
| Operation | Key/touch operation; analog-resistive touch screen |
| Ethernet interface | 1 industrial Ethernet interface |
| Protocols | PROFINET, PROFIBUS, EtherNet/IP, MPI, MODBUS |
| Supply | 24 V DC; 19.2 V to 28.8 V permissible range |
| Configuration memory | 4 MB |

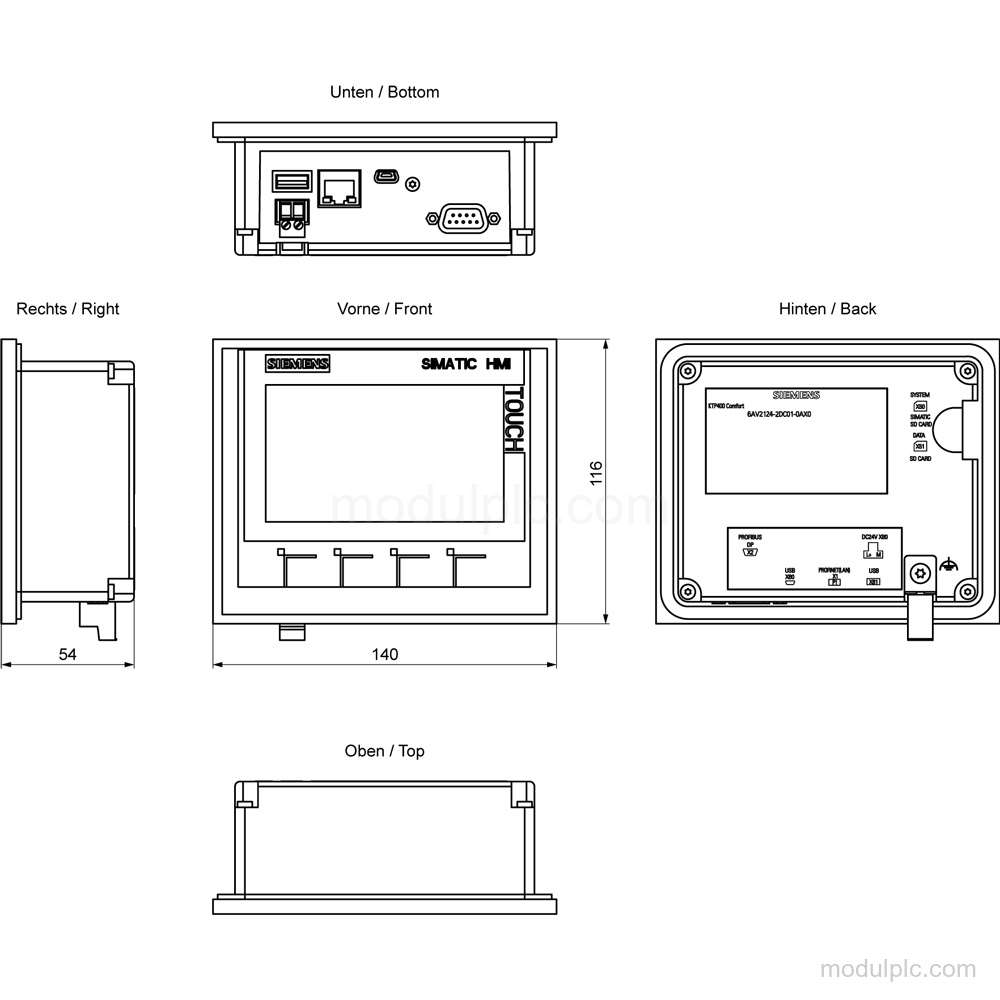

| Mounting | Vertical; portrait and landscape possible |
| Front protection | IP65 |
| Rear protection | IP20 |
Key Features
- Display and operation: 4.3 in TFT display with 480 pixel × 272 pixel resolution, 16 777 216 colors, key/touch operation, and analog-resistive touch screen.

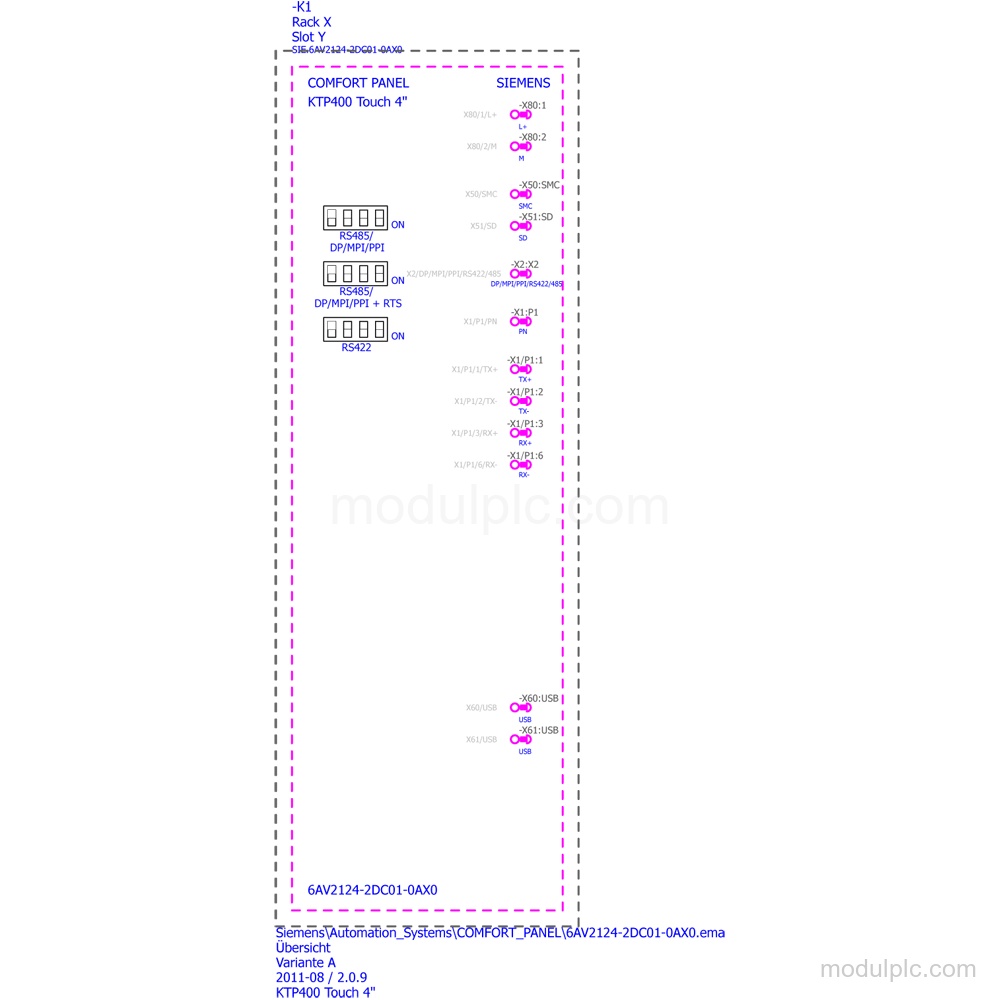

- Communication interfaces: 1 industrial Ethernet interface, 1 combined RS 422 / 485 interface, 1 USB 2.0 interface with 5-pole USB Mini B, and 2 SD card slots.
- Supported protocols: PROFINET, PROFINET IO, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, LLDP, HTTP, MODBUS, and JavaScript.
- Supply and consumption: DC supply with a rated value of 24 V, permissible range from 19.2 V to 28.8 V, rated current consumption of 0.13 A, and typical active power input of 3.1 W.
- Mounting and protection: Vertical mounting; portrait and landscape mounting are possible. Maximum permissible angle of inclination without external ventilation: 35°. Protection is IP65 at the front and IP20 at the rear.
- Product lifecycle: Announcement of product phase-out.
Frequently Asked Questions
1. What display and operation does 6AV2124-2DC01-0AX0 have?
It has a 4.3 in TFT display with 480 pixel × 272 pixel resolution, 16 777 216 colors, 4 function keys with LEDs, and an analog-resistive touch screen.
2. Which communication interfaces and protocols are supported?
It has 1 industrial Ethernet interface, 1 combined RS 422 / 485 interface, 1 USB 2.0 interface, PROFINET, PROFINET IO, PROFIBUS, EtherNet/IP, MPI, and MODBUS.
3. What supply and mounting details should be verified?
The supply is DC, rated at 24 V, with a permissible range from 19.2 V to 28.8 V. Mounting is vertical, with portrait and landscape formats possible; the maximum permissible angle of inclination without external ventilation is 35°.
