Product Overview
Technical Summary
| Parameter | Value |
|---|---|

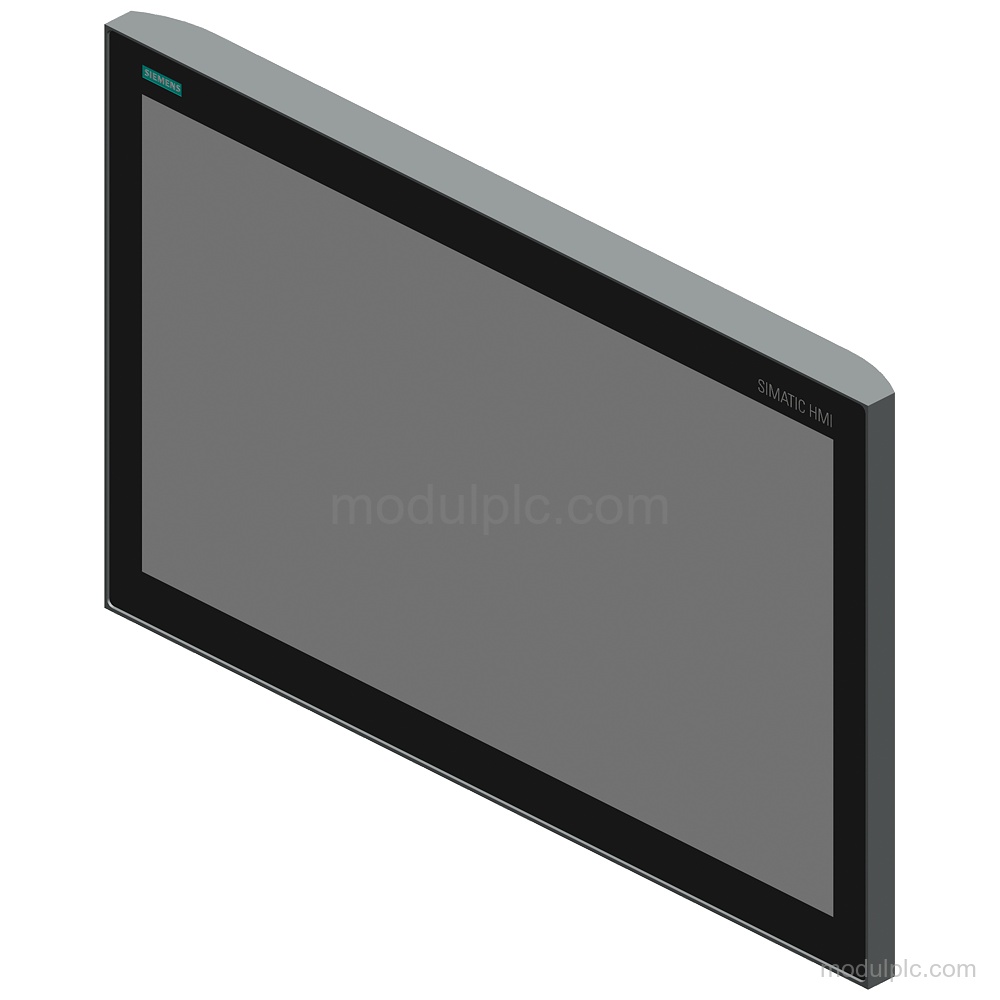

| Display | 21.5 in widescreen TFT |
| Touch operation | Yes; Projective-capacitive |
| Resolution | 1 920 x 1 080 pixel |

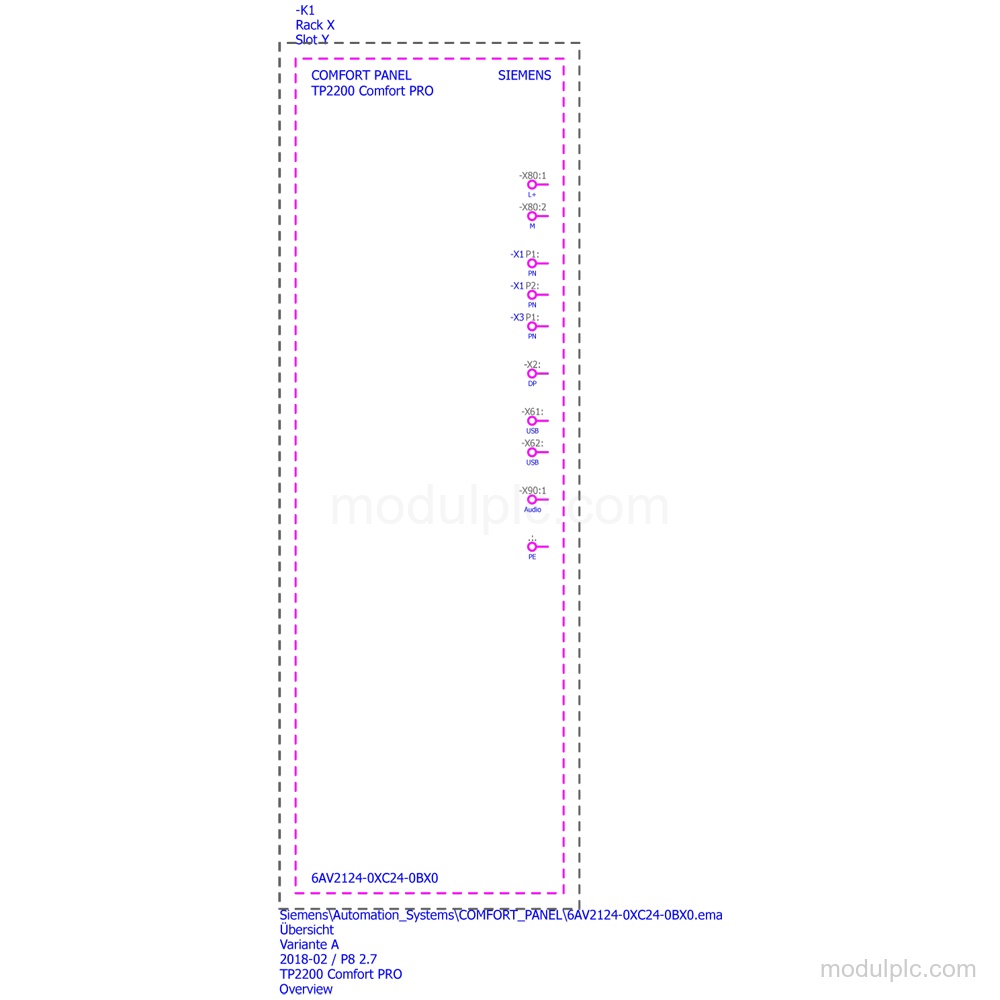

| Industrial Ethernet interfaces | 2; 2 ports (switch) + independent port |
| RS 422 / 485 interface | 1; RS 422 / 485 combined |
| Protocols | PROFINET, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, LLDP, MRP, MODBUS |
| Supply | 24 V DC; permissible range 19.2 V to 28.8 V |
| Active power input, typ. | 44 W |
| User data memory | 24 Mbyte |

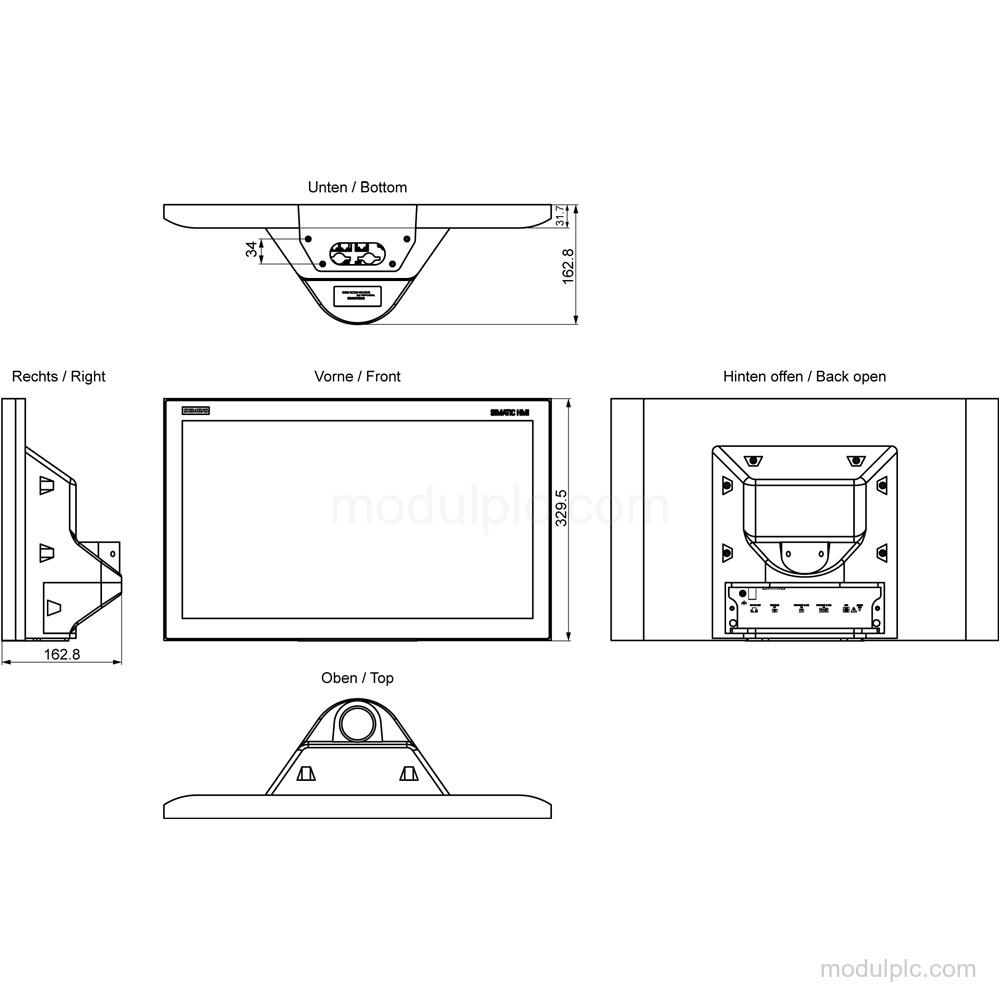

| Mounting | Support arm; vertical |
| Protection | IP65 at the front and rear |
Applications
- Touch operator control: Touch operation and 40 direct keys, implemented as S7 input I/O, provide operator control of the process.
- Network communication: The panel supports communication through PROFINET, PROFIBUS, EtherNet/IP, MPI, TCP/IP, and MODBUS.
Key Features
- Touch display: 21.5 in widescreen TFT display with 1 920 x 1 080 pixel resolution, 16 777 216 colors, and projective-capacitive touch operation.
- Network interfaces: 2 industrial Ethernet interfaces with 2 switched ports and 1 independent port, plus 1 combined RS 422 / 485 interface.
- Supported protocols: Supports PROFINET, PROFINET IO, IRT, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, LLDP, HTTP, HTTPS, HTML, XML, CSS, Active X, MRP, and MODBUS.
- Power supply: DC supply with a rated value of 24 V and a permissible range from 19.2 V to 28.8 V; typical active power input is 44 W.
- Support-arm mounting: Support-arm mounting in vertical position; landscape format is possible, portrait format is not, and the maximum permissible inclination without external ventilation is 35°.
- Front and rear protection: IP65 protection at the front and rear; the front has NEMA Enclosure Type 4 and Enclosure Type 4x.
Frequently Asked Questions
1. What display and touch technology does the 6AV2124-0XC24-0BX0 use?
It has a 21.5 in widescreen TFT display with 1 920 x 1 080 pixel resolution, 16 777 216 colors, and projective-capacitive touch operation.
2. Which network interfaces and protocols are supported?
It has 2 industrial Ethernet interfaces with 2 switched ports and 1 independent port, 1 combined RS 422 / 485 interface, and supports PROFINET, PROFIBUS, EtherNet/IP, MPI, TCP/IP, and MODBUS.
3. How is this HMI panel mounted?
It uses support-arm mounting in a vertical position. Landscape mounting is possible, portrait mounting is not, and the maximum permissible inclination without external ventilation is 35°.
4. What supply voltage does the panel require?
The DC supply has a rated value of 24 V, with a permissible range from 19.2 V to 28.8 V.
