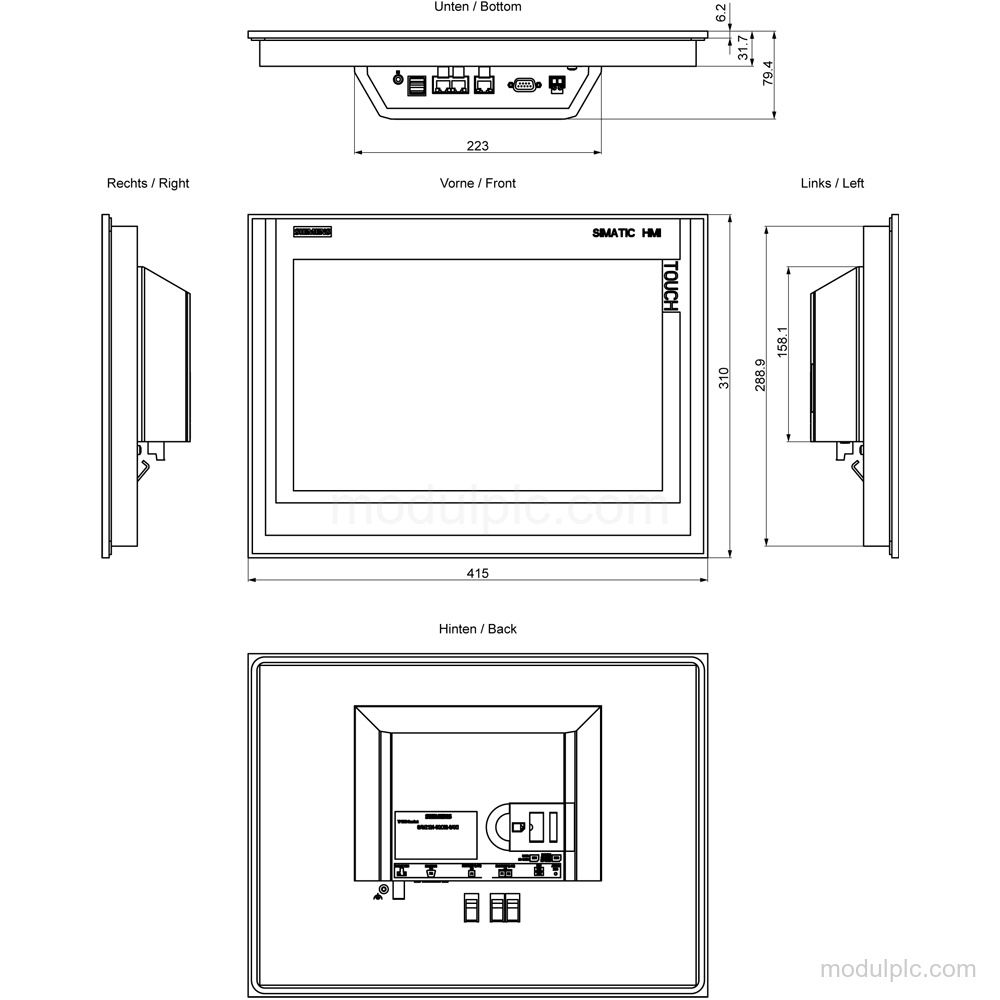

Product Overview
Technical Summary
| Parameter | Value |
|---|---|

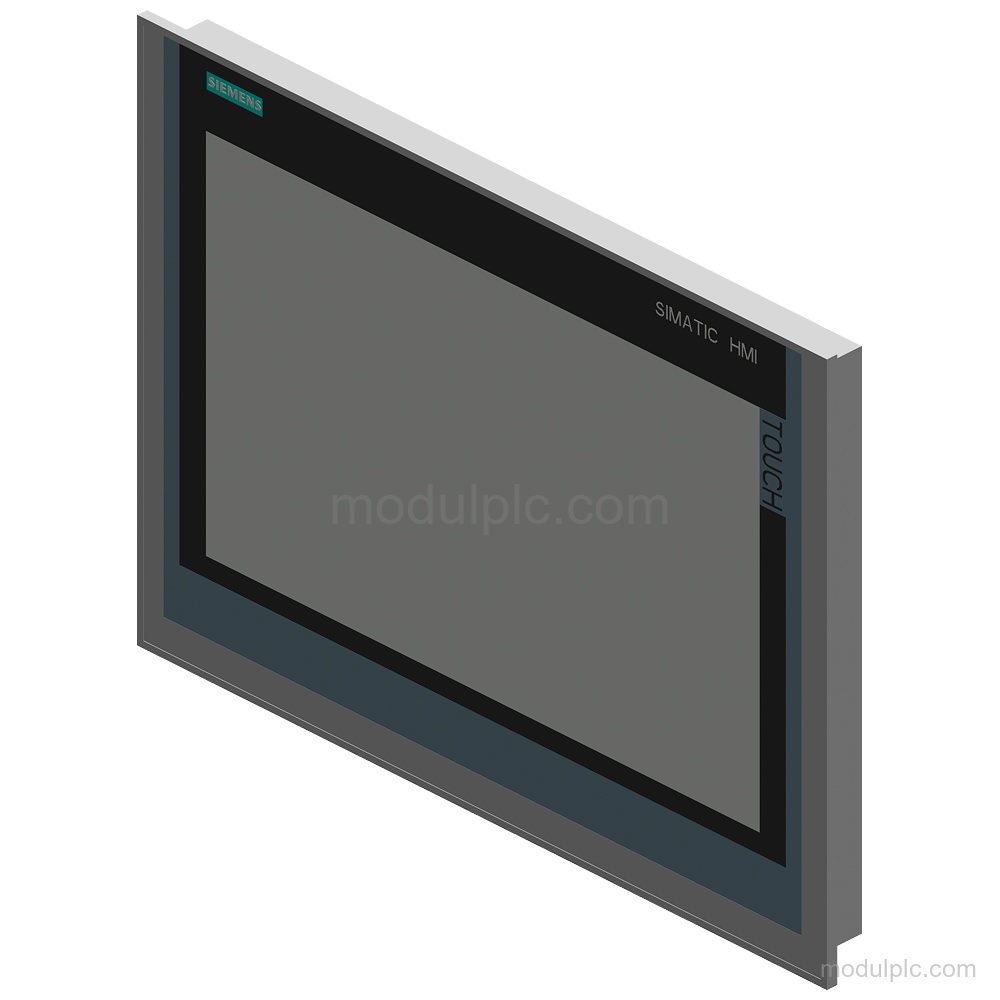

| Product type | TP1500 Comfort |
| Display | 15.4 in widescreen TFT, 16 777 216 colors |
| Touch screen | Analog-resistive |
| Resolution | 1 280 pixel x 800 pixel |
| Direct keys | 40 |
| Industrial Ethernet | 2 interfaces; 2 ports (switch) + independent port |
| RS 422 / 485 | 1 combined interface |
| Protocols | PROFINET, PROFIBUS, EtherNet/IP, MPI, MODBUS |
| Configuration memory | 24 MB |
| Supply | 24 V DC; 19.2 V to 28.8 V |
| Front protection | IP65 |
Applications
- Operator control of the process: 40 direct keys provide touch buttons as S7 input I/O for operator control of the process.
- Network communication and diagnostics: PROFINET, PROFIBUS, EtherNet/IP, MPI, and MODBUS support communication, while diagnostic information is readable from an S7 controller.
Key Features
- Touch display: 15.4 in widescreen TFT display with 1 280 pixel horizontal resolution, 800 pixel vertical resolution, and 16 777 216 colors.
- Touch operation: Analog-resistive touch screen with 40 direct keys as S7 input I/O; numeric and alphanumeric keyboards are available as onscreen keyboards.

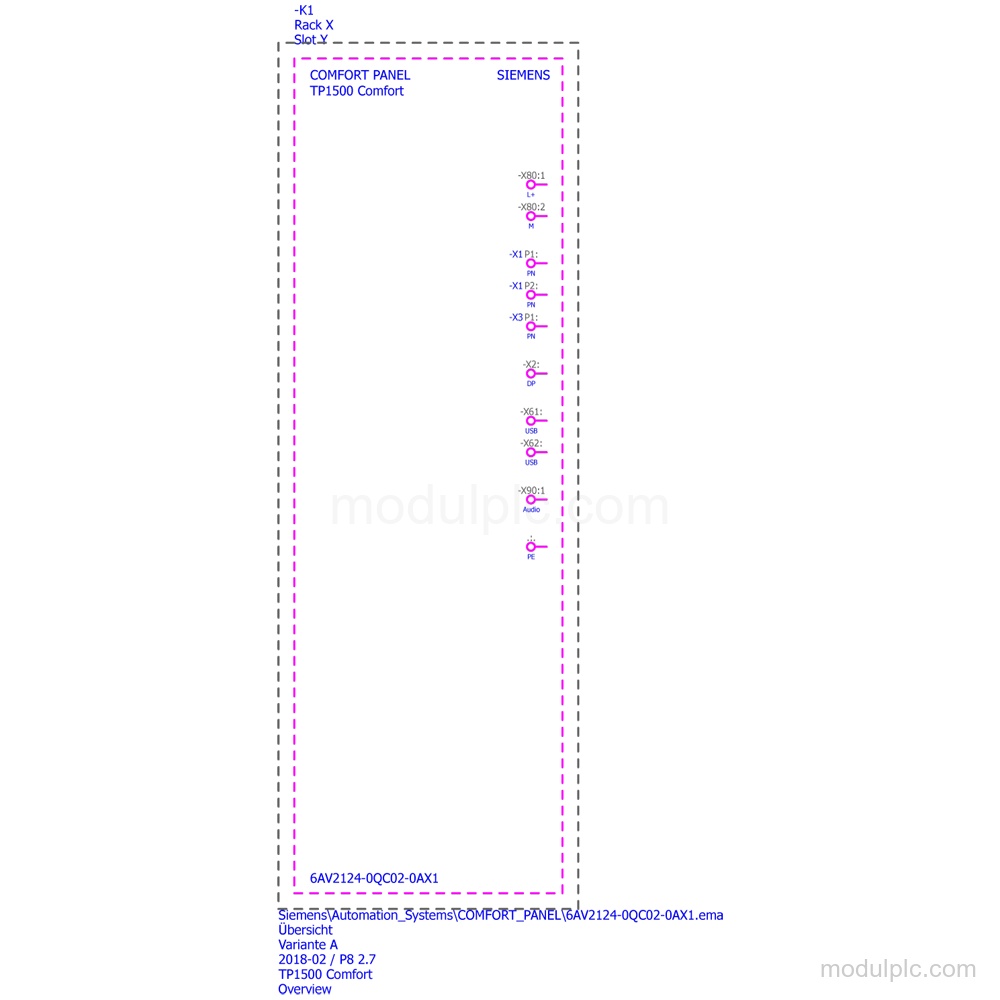

- Network interfaces: 2 industrial Ethernet interfaces with 2 ports on an integrated switch plus an independent port, and 1 combined RS 422 / 485 interface.
- Protocols: Supports PROFINET, PROFINET IO, IRT, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, LLDP, HTTP, HTTPS, HTML, XML, CSS, Active X, JavaScript, MRP, and MODBUS.
- Supply and installation: 24 V DC rated supply with a permissible range from 19.2 V to 28.8 V; vertical mounting is supported, with portrait and landscape installation possible.
Frequently Asked Questions
1. What display does the Siemens 6AV2124-0QC02-0AX1 have?
It has a 15.4 in widescreen TFT display with 16 777 216 colors and 1 280 pixel x 800 pixel resolution.
2. How many direct keys and interfaces does the TP1500 Comfort have?
It has 40 direct keys, 2 industrial Ethernet interfaces, 1 combined RS 422 / 485 interface, 2 USB 2.0 interfaces, and 2 SD card slots.
3. Which network protocols are supported?
It supports PROFINET, PROFINET IO, IRT, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, LLDP, MRP, and MODBUS.
4. What supply voltage is required?
The rated supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V.
