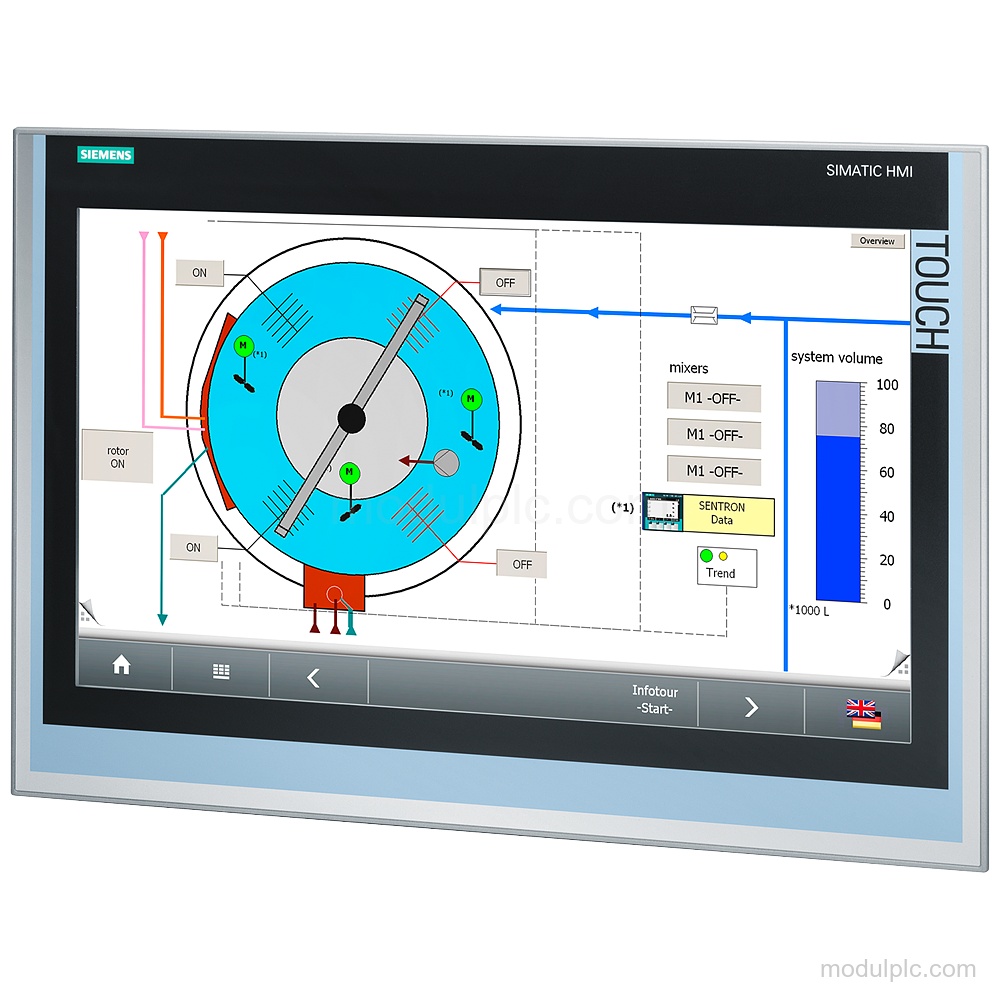

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | IFP2200 V2 |
| Display | 22" TFT multi-touch |
| Screen diagonal | 21.5 in; 56 cm |
| Image resolution | 1 920 x 1 080 pixels |
| Viewing angle | 178° x 178° |
| Supply | 24 V DC; 19.2 V to 28.8 V |
| Current consumption | 1 A rated; 1.3 A maximum |
| Power loss | 24 W typical |
| Interfaces | DisplayPort V1.2; Ethernet; 2x onboard USB on the rear |
| Mounting | Built-in unit; front mounting; portrait or landscape |
| Front protection | IP65; Enclosure Type 4 |
Applications
- Image display: Displays images through the Ethernet monitor and DisplayPort interfaces.
- Touch operation: Provides multi-touch screen operation through the projective-capacitive touch screen.
- Mouse control: Provides integrated mouse cursor control, also externally via USB.
Key Features
- Multi-touch display: 22" TFT multi-touch display with projective-capacitive touch operation.
- Image resolution: Resolution: 1 920 x 1 080 pixels.
- Interfaces: DisplayPort V1.2, Ethernet and 2x onboard USB on the rear.
- Supply: DC supply with rated value: 24 V; permissible range: 19.2 V to 28.8 V.
- Installation: Built-in unit with front mounting; portrait and landscape mounting are possible.
- Front protection: Front protection: IP65; Enclosure Type 4 at the front.
Frequently Asked Questions
1. What display does Siemens 6AV7863-4MA20-2AA0 use?
It has a 22" TFT multi-touch display with a 21.5 in screen diagonal and 1 920 x 1 080 pixel resolution.
2. What supply voltage does the display require?
Supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V.
3. Which interfaces are available?
It has DisplayPort V1.2, Ethernet, and 2x onboard USB on the rear. The connection for a keyboard or mouse is USB.
4. How is the display mounted?
It is a built-in unit with front mounting. Portrait and landscape mounting are possible; VESA mounting is not available.
5. What should be verified before requesting a quote?
Verify the required DisplayPort, Ethernet, USB, 24 V DC supply, built-in installation, and front IP65 protection.
