Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Display resolution | 1 920 x 1 080 pixel |
| Touch screen | Projective-capacitive multi-touch |
| Industrial Ethernet interfaces | 1; Ethernet, 1 port, RJ45 |
| Video interface | DisplayPort V1.1 |
| Rated supply | 24 V; PELV / SELV floating |
| Permissible supply range | 19.2 V to 28.8 V |
| Power loss, typ. | 25 W |
| Power loss, max. | 30 W |
| Protection | IP65 at the front and rear |

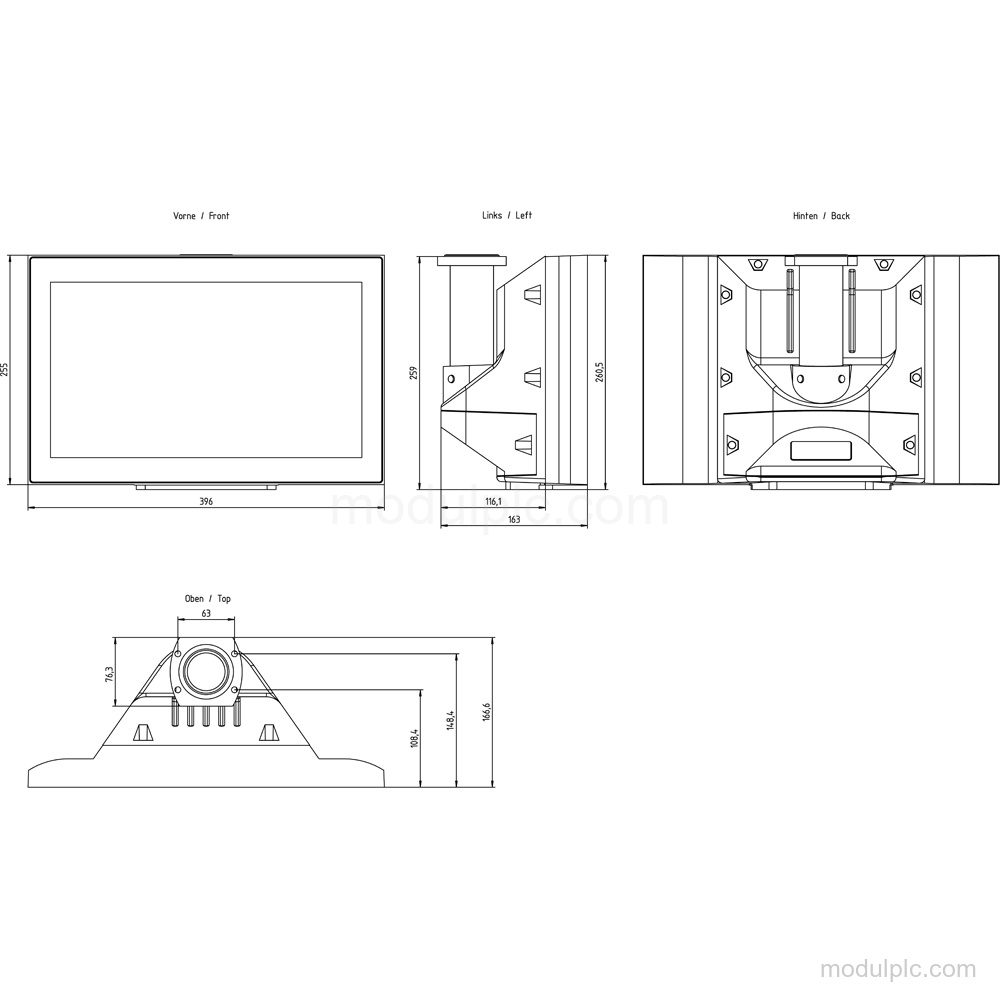

| Mounting | Support arm mounting; VESA mounting with VESA adapter set |
Key Features
- Full HD multi-touch display: TFT widescreen LED display with 1 920 x 1 080 pixel resolution and projective-capacitive multi-touch.
- Ethernet interface: 1 industrial Ethernet interface with 1 port and RJ45 connection.
- Video interface: DisplayPort V1.1 is available; DVI-D is not available.
- 24 V DC supply: Rated supply is 24 V; permissible range is 19.2 V to 28.8 V.
- IP65 enclosure: IP65 protection is provided at the front and rear; the unit is fully enclosed.

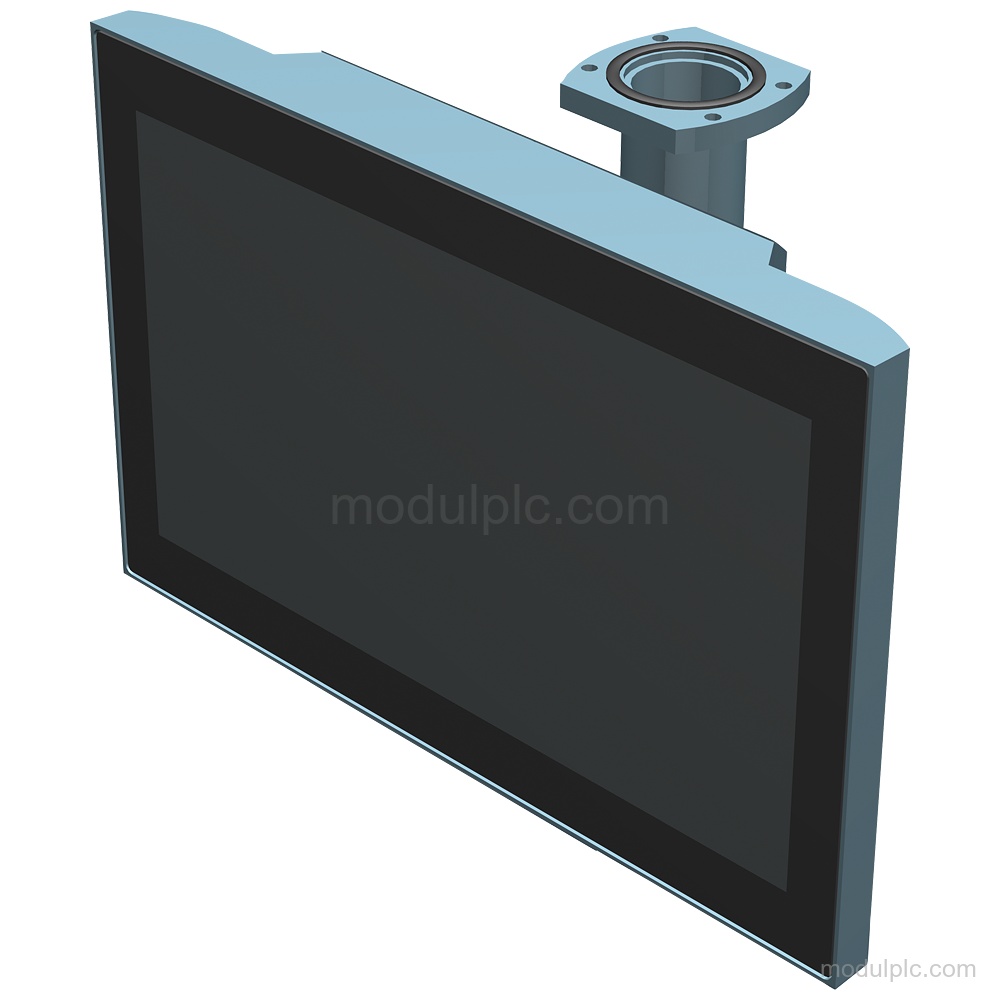

- Support arm mounting: Support arm mounting is supported and suitable for support arm and extension components; VESA mounting is available with a VESA adapter set.
Frequently Asked Questions
1. What display resolution does the Siemens 6AV7466-5MA02-0AA0 have?
It has 1 920 x 1 080 pixel resolution.
2. Which interfaces are available on this monitor?
It has 1 industrial Ethernet interface with 1 RJ45 port, DisplayPort V1.1, and 2 USB ports on the rear.
3. What supply voltage does the monitor require?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V.
4. Which mounting options are supported?
It supports support arm mounting and VESA mounting with a VESA adapter set. It does not support front mounting or stand mounting.
