Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | ITC2200 V3 PRO |

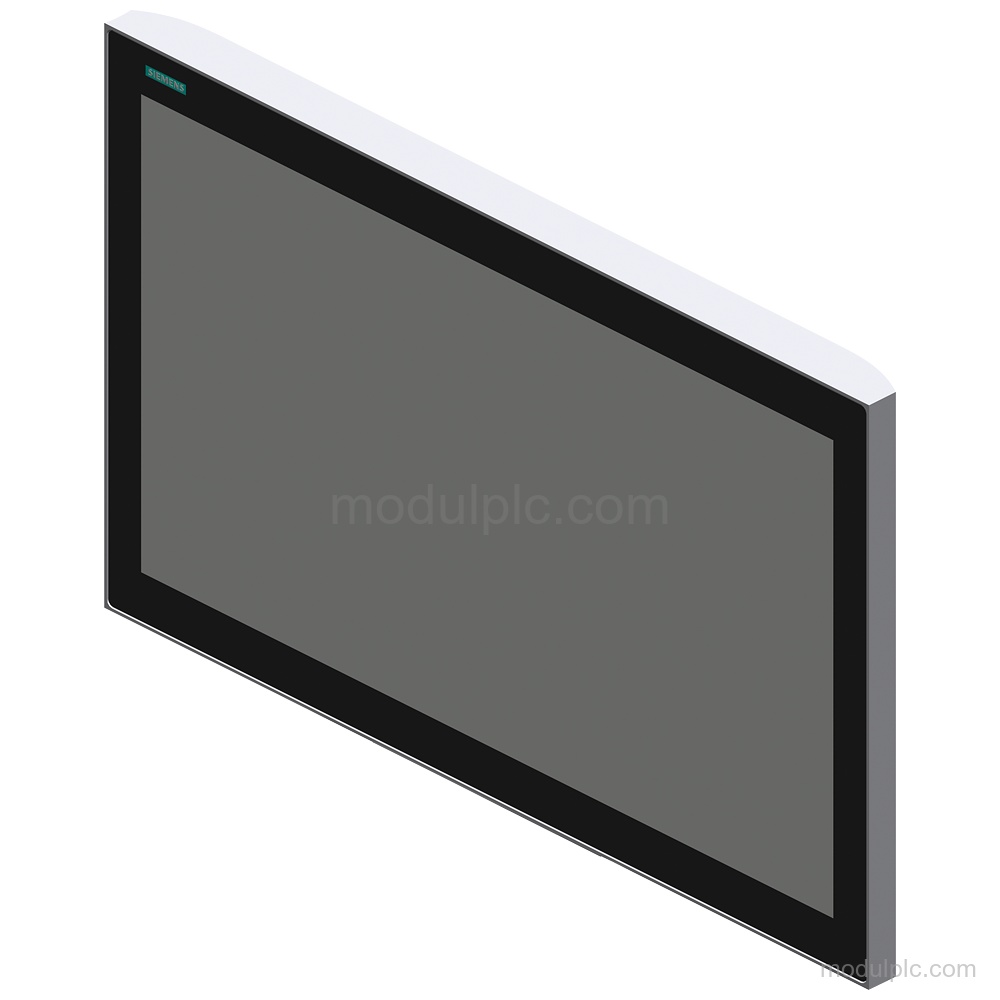

| Display | TFT widescreen display, LED backlighting |
| Screen diagonal | 21.5 in; 22" |
| Image resolution | 1 920 x 1 080 |
| Touch screen | Projective-capacitive multi-touch screen |
| Industrial Ethernet interfaces | 2; 2 ports (switch) |
| USB interfaces | 4; on rear |
| Transmission rate, max. | 1 000 Mbit/s |
| Terminal link protocols | Sm@rtServer, RDP, VNC viewer, Citrix, SINUMERIK |
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V to 28.8 V |

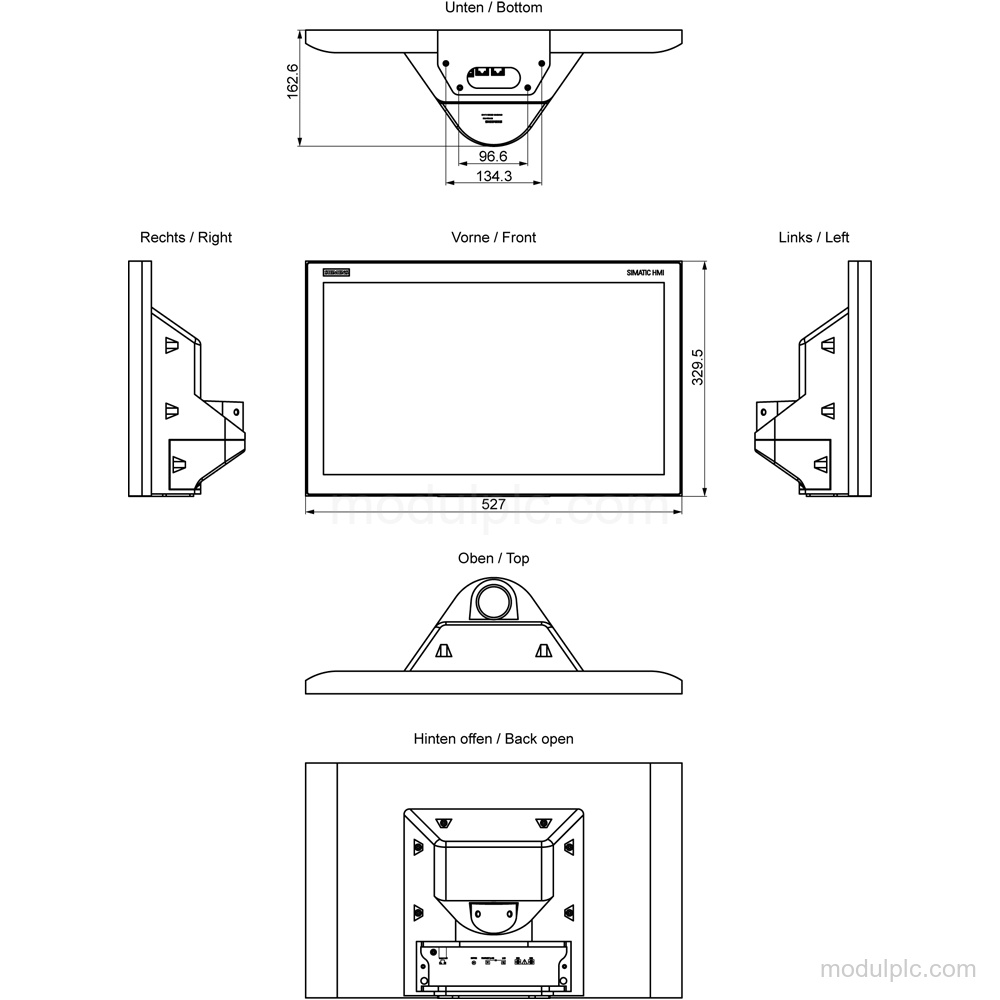

| Mounting | Support arm mounting |
Key Features
- 22" TFT widescreen display: TFT widescreen display with LED backlighting, 1 920 x 1 080 resolution, and 16 777 216 colors.
- Capacitive multi-touch screen: Projective-capacitive multi-touch screen with non-reflective, tempered mineral glass.
- Industrial Ethernet interfaces: 2 industrial Ethernet interfaces with switch function and a maximum transmission rate of 1 000 Mbit/s.
- USB interfaces: 4 USB interfaces are provided on the rear; 2 are onboard.
- 24 V DC supply: Rated supply value: 24 V DC; permissible range: 19.2 V to 28.8 V.
- Support arm mounting: Support arm mounting is supported with suitable support arm and extension components; refer to the manual.
Frequently Asked Questions
1. What display does 6AV6646-1BD22-1AA0 have?
It has a 21.5 in; 22" TFT widescreen display with 1 920 x 1 080 image resolution and a projective-capacitive multi-touch screen.
2. How many Ethernet and USB interfaces are available?
It has 2 industrial Ethernet interfaces with switch function and 4 USB interfaces on the rear.
3. Which supply voltage is required?
The rated supply value is 24 V DC, with a permissible range from 19.2 V to 28.8 V.
4. Which mounting method is supported?
Support arm mounting is supported with suitable support arm and extension components; refer to the manual. Front, stand, and built-in mounting are not supported.
