Product Overview
Technical Summary
| Parameter | Value |
|---|---|

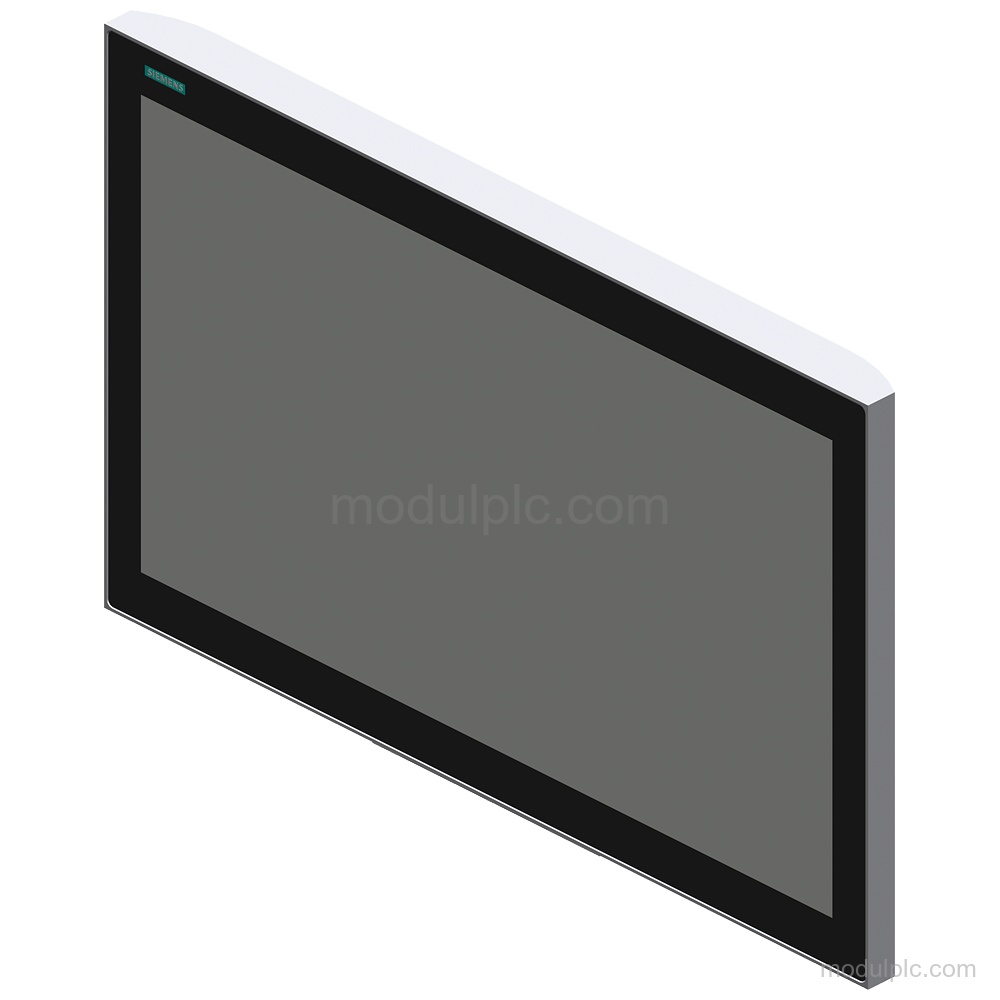

| Display | TFT widescreen display, LED backlighting |
| Screen diagonal | 21.5 in; 22" |
| Image resolution | 1 920 x 1 080 |
| Touch screen | Projective-capacitive multi-touch screen |
| Industrial Ethernet interfaces | 2; 2 ports (switch) |
| Transmission rate, max. | 1 000 Mbit/s |
| Terminal-link protocols | Sm@rtServer, RDP, VNC viewer, Citrix, SINUMERIK |
| Supply voltage | 24 V DC; permissible range from 19.2 V to 28.8 V |
| Current consumption, rated | 1.7 A |
| Active power input, typ. | 41 W |

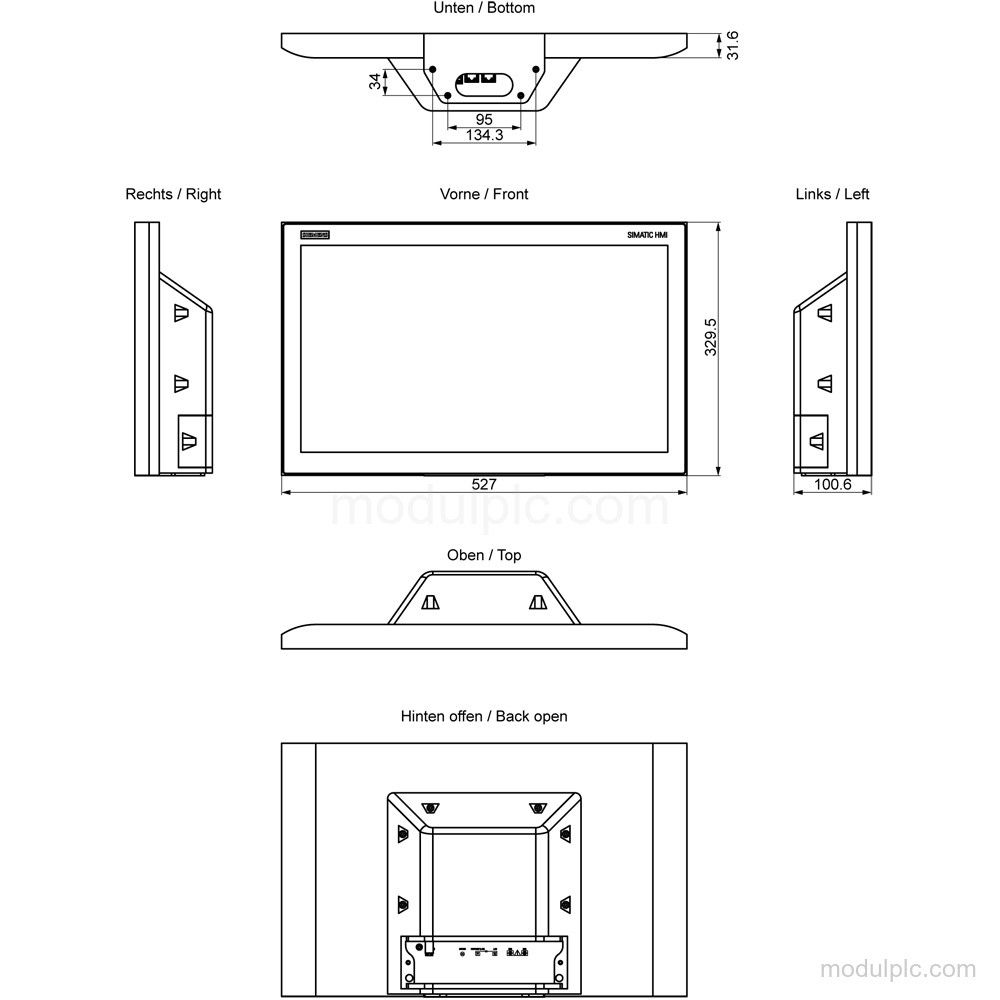

| Mounting and protection | Pedestal mounting; IP65 front and rear |
Key Features
- Display and touch: TFT widescreen display with LED backlighting, 1 920 x 1 080 resolution, 16 777 216 colors and projective-capacitive multi-touch.
- Industrial Ethernet: 2 industrial Ethernet interfaces with 2 switch ports and a maximum transmission rate of 1 000 Mbit/s.
- Terminal-link protocols: Sm@rtServer, RDP, VNC viewer, Citrix and SINUMERIK are supported.
- Supply and power: 24 V DC rated supply, permissible DC range from 19.2 V to 28.8 V, 1.7 A rated current consumption and 41 W typical active power input.

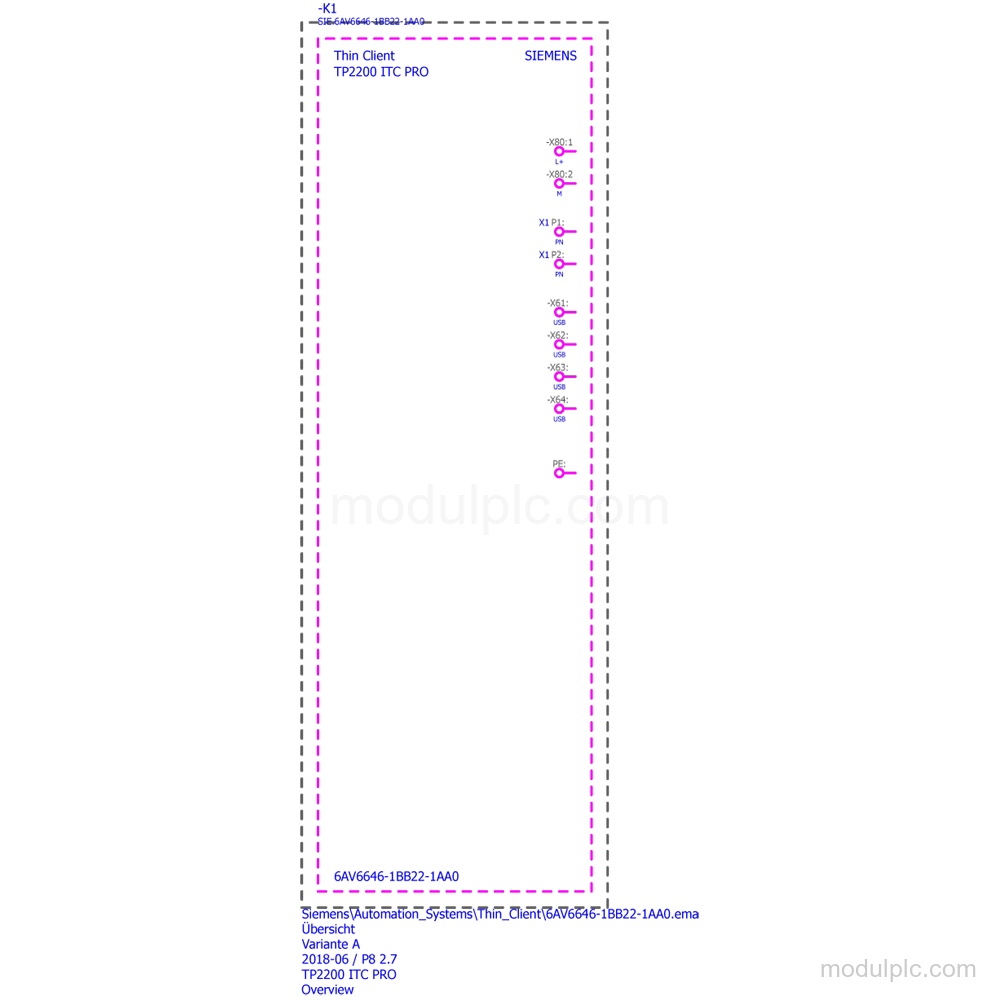

- USB interfaces: 4 USB interfaces are provided on the rear, including 2 onboard USB interfaces; keyboard and mouse connection is USB.
- Mounting and protection: Pedestal mounting is provided. Stand mounting is prepared for pedestal and extension components; front and rear protection are IP65.
Frequently Asked Questions
1. What display does the Siemens 6AV6646-1BB22-1AA0 have?
It has a TFT widescreen display with a 21.5 in; 22" screen diagonal, 1 920 x 1 080 image resolution and projective-capacitive multi-touch.
2. How many industrial Ethernet and USB interfaces are included?
It has 2 industrial Ethernet interfaces with 2 switch ports and 4 USB interfaces on the rear.
3. Which terminal-link protocols are supported?
Sm@rtServer, RDP, VNC viewer, Citrix and SINUMERIK are supported.
4. What supply voltage does this thin client require?
The rated supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V.
5. How is the unit mounted and protected?
It has pedestal mounting, is prepared for pedestal and extension components, and has IP65 protection at the front and rear.
