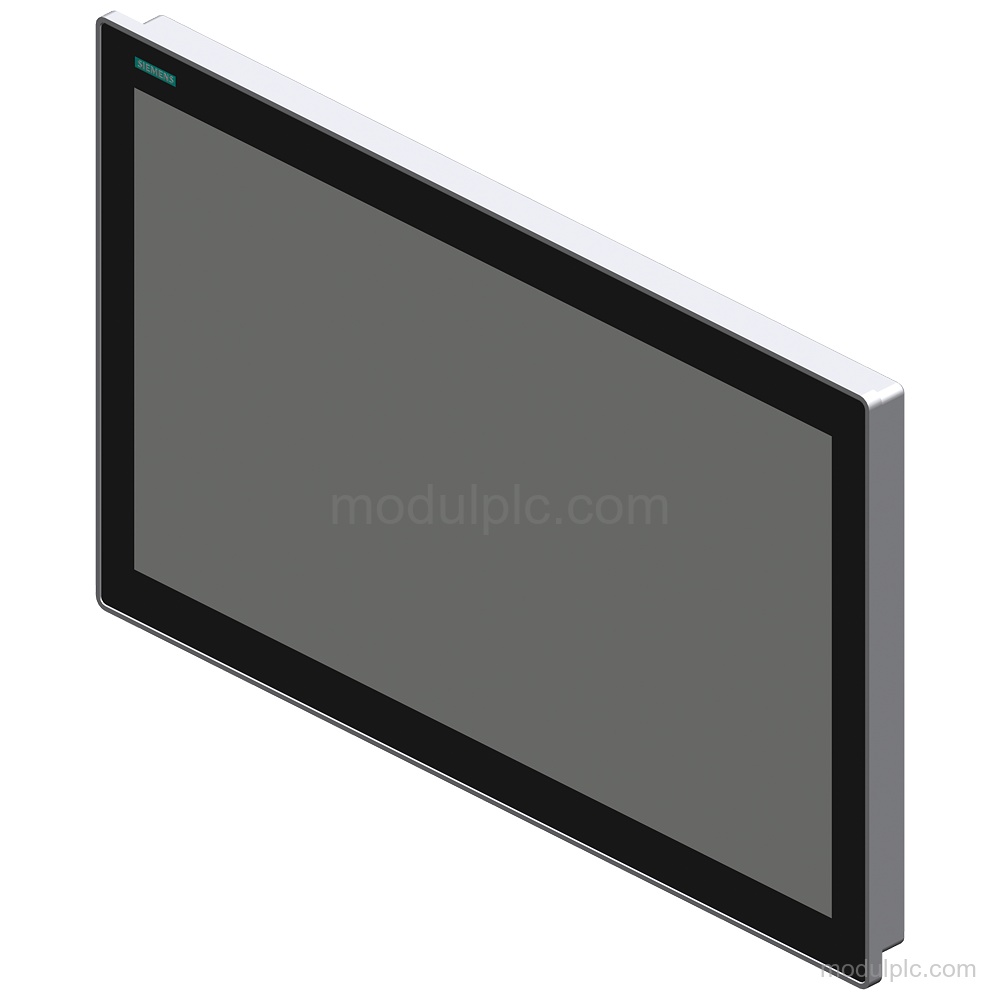

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Display size | 21.5 in; 22" |
| Display resolution | 1 920 x 1 080 |
| Touch screen | Projective-capacitive multi-touch |
| Industrial Ethernet interfaces | 2; 2 ports (switch) |
| Industrial Ethernet transmission rate, max. | 1 000 Mbit/s |
| Terminal-link protocols | Sm@rtServer, RDP, VNC viewer |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage range | 19.2 V to 28.8 V |
| Current consumption, rated value | 1.7 A |
| Active power input, typ. | 41 W |
| Front protection | IP65 |
| Installation type | Built-in unit |
Key Features

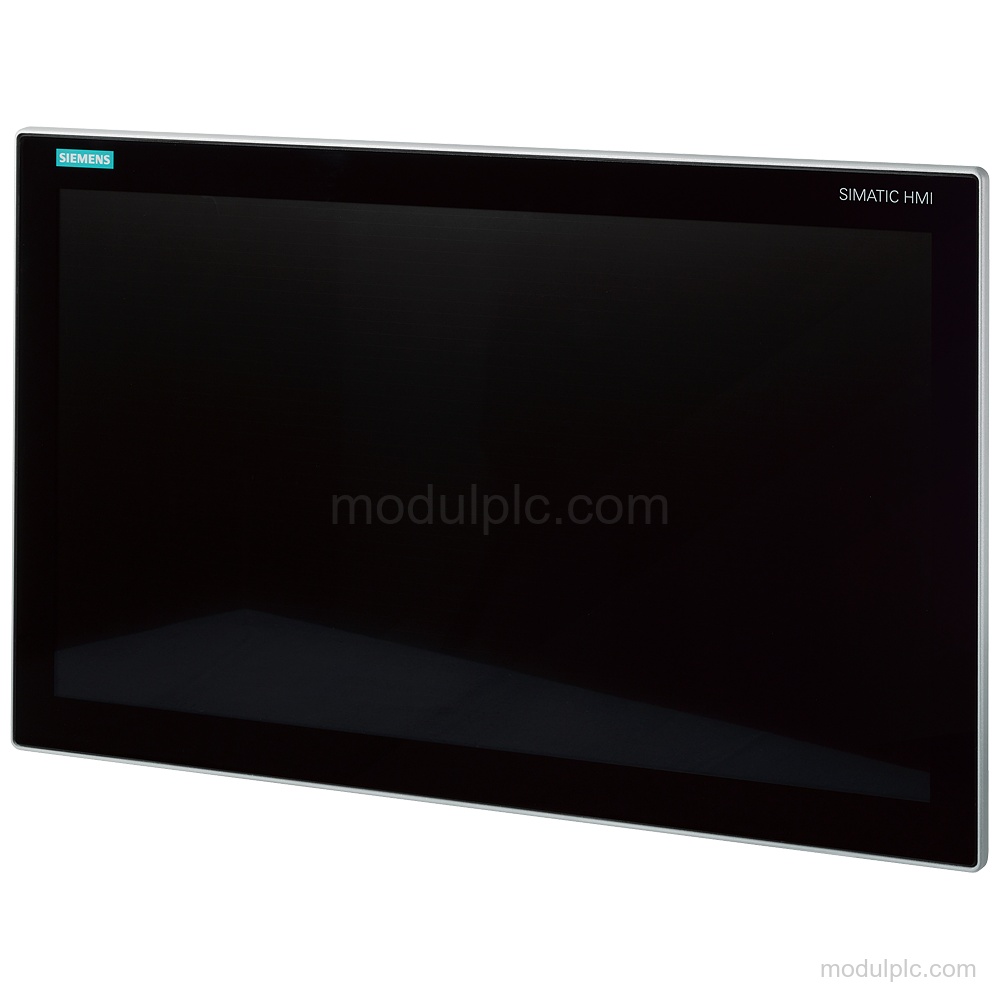

- TFT widescreen display: 22" display with LED backlighting, 1 920 x 1 080 image resolution and 16 777 216 colors.
- Capacitive multi-touch: Projective-capacitive multi-touch screen with a non-reflective, tempered mineral glass screen.

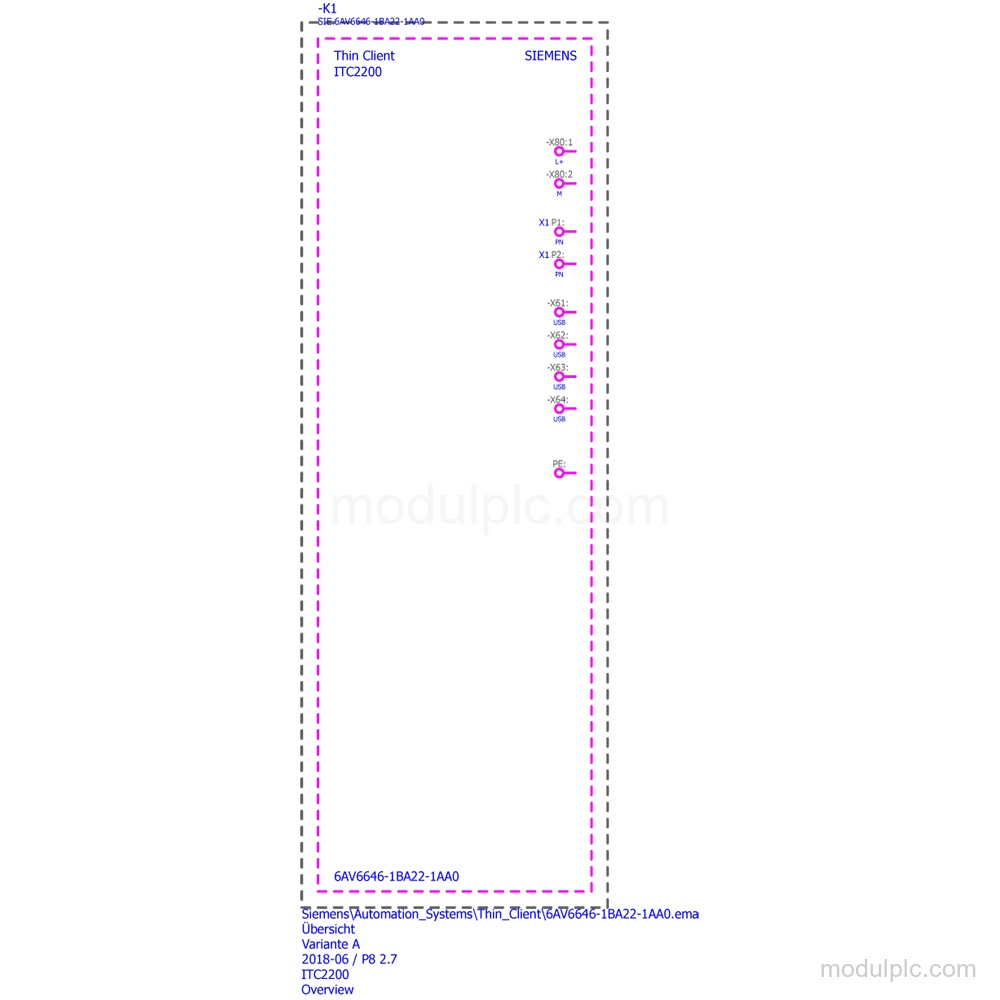

- Industrial Ethernet interfaces: 2 industrial Ethernet interfaces with 2 ports (switch) and a maximum transmission rate of 1 000 Mbit/s.
- Terminal-link protocols: Supports Sm@rtServer, RDP and VNC viewer; Citrix and SINUMERIK are not supported.
- DC supply: Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V.

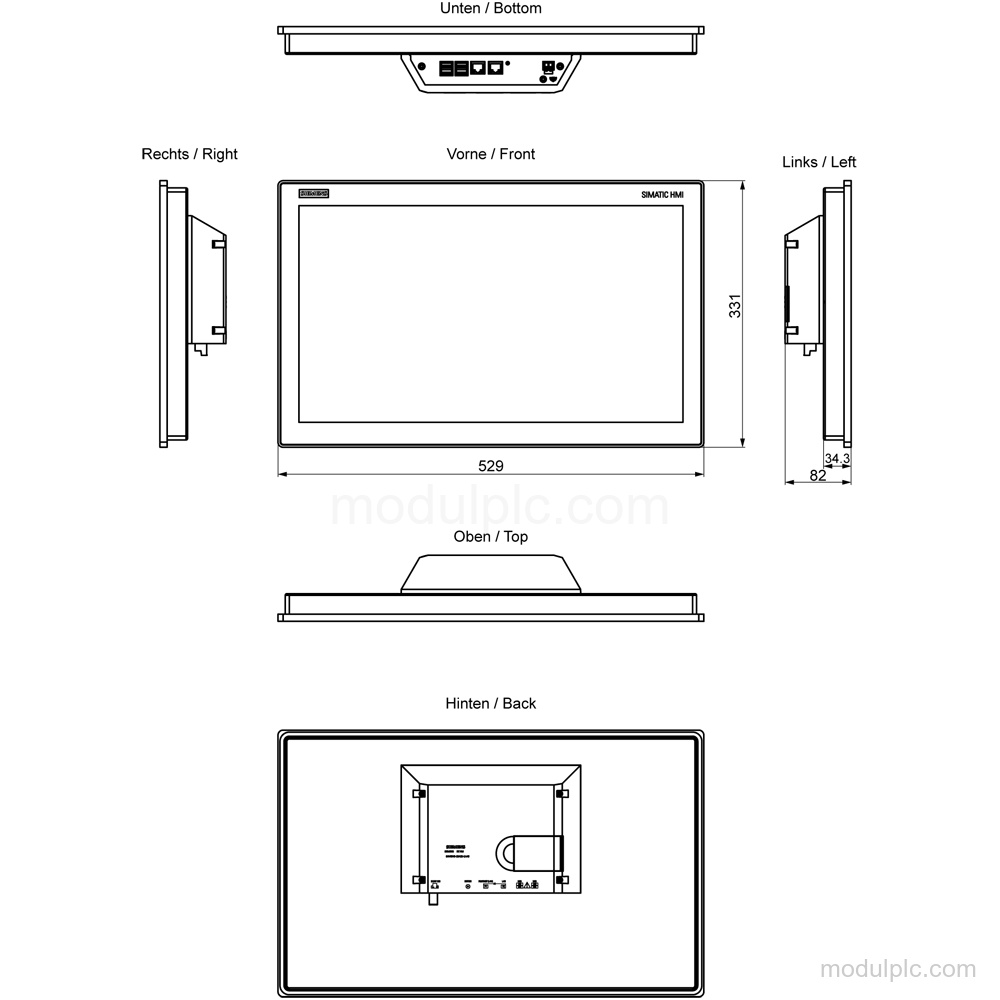

- Built-in installation: Built-in unit with front mounting; support arm mounting and stand mounting are not supported. The maximum permitted forward and backward tilt angle from vertical is 35°.
Frequently Asked Questions
1. What display does the 6AV6646-1BA22-1AA0 have?
It has a 22" TFT widescreen display with LED backlighting, 1 920 x 1 080 resolution and capacitive multi-touch.
2. How many industrial Ethernet interfaces are available?
It has 2 industrial Ethernet interfaces with 2 ports (switch). The maximum transmission rate is 1 000 Mbit/s.
3. What supply voltage does this model require?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V.
4. Which terminal-link protocols are supported?
Sm@rtServer, RDP and VNC viewer are supported. Citrix and SINUMERIK are not supported.
5. Which mounting options are included in this configuration?
It is a built-in unit with front mounting. It is without support arm mounting and stand mounting.
