Product Overview
Technical Summary
| Parameter | Value |
|---|---|

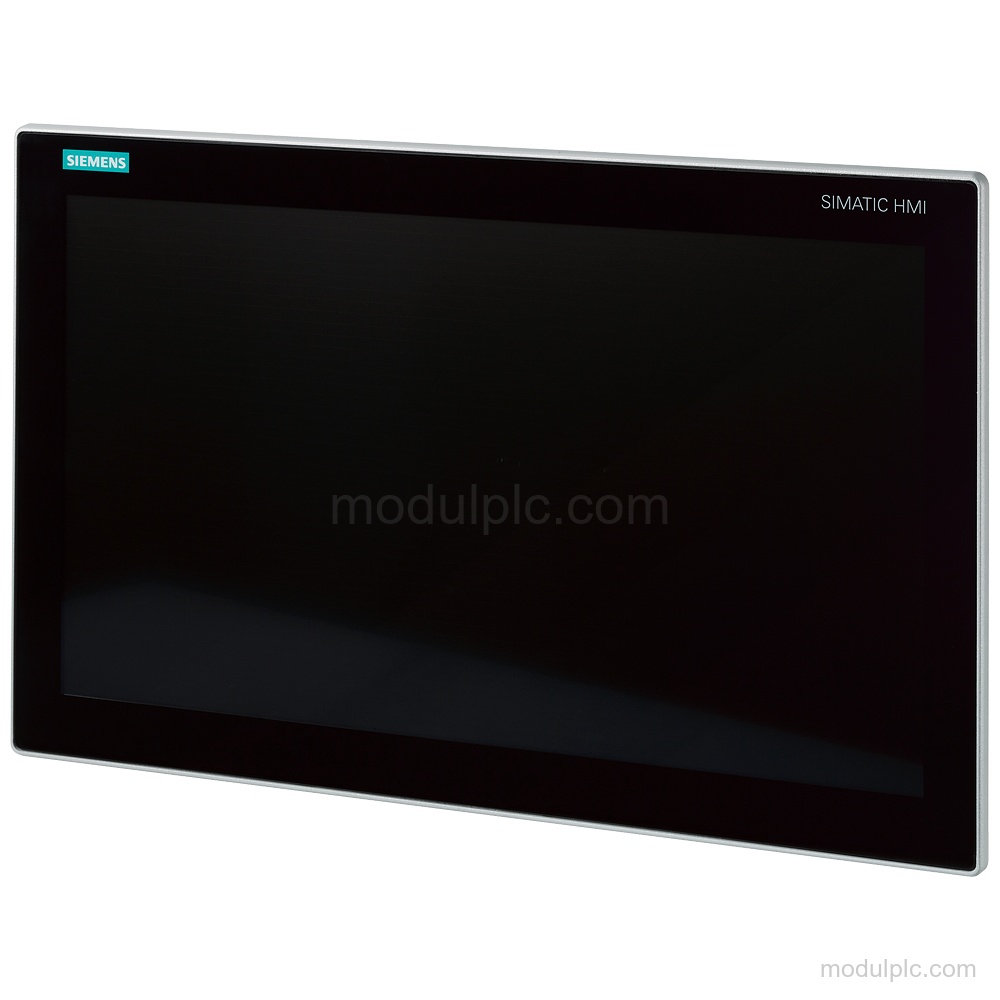

| Product type | ITC1900 V3 industrial thin client |
| Display | TFT widescreen display with LED backlighting |
| Screen diagonal | 18.5 in; 19" |
| Image resolution | 1 366 x 768 |
| Touch operation | Projective-capacitive multi-touch screen |
| Industrial Ethernet interfaces | 2; 2 ports (switch) |
| Industrial Ethernet transmission rate, max. | 1 000 Mbit/s |
| Terminal link protocols | Sm@rtServer, RDP, and VNC viewer |
| Supply voltage | DC, 24 V; permissible range from 19.2 V to 28.8 V |
| USB interfaces | 4; on rear |

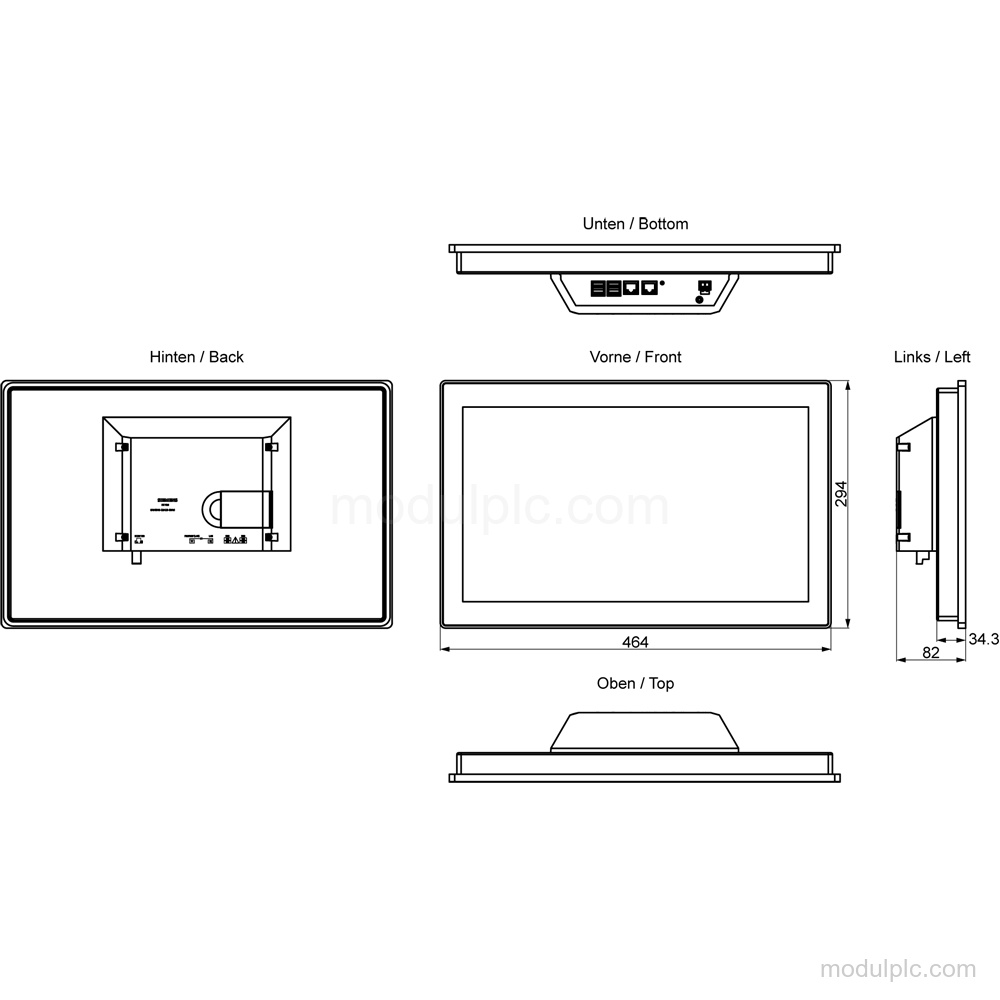

| Installation | Built-in unit; front mounting |
Key Features
- Display and touch: TFT widescreen display with LED backlighting, 1 366 x 768 resolution, and capacitive multi-touch screen.
- Industrial Ethernet: 2 industrial Ethernet interfaces with 2 ports (switch) and transmission rate up to 1 000 Mbit/s.
- Terminal protocols: Supports RDP, VNC viewer, Sm@rtServer, TCP/IP, DHCP, SNMP, DCP, and LLDP; Citrix and SINUMERIK are not supported.
- Supply voltage: DC supply with rated value 24 V and permissible range from 19.2 V to 28.8 V.
- USB interfaces: 4 USB interfaces are provided on the rear; the keyboard/mouse connection is USB.
- Installation and protection: Built-in unit for front mounting, with maximum permitted forward and backward tilt angles of 35° from vertical; protection is IP65 at the front and IP20 at the rear.
Frequently Asked Questions
1. What display does the Siemens 6AV6646-1BA18-0NA0 have?
It has a TFT widescreen display with LED backlighting, 1 366 x 768 image resolution, and an 18.5 in; 19" screen diagonal.
2. Which interfaces and terminal protocols are supported?
It has 2 industrial Ethernet interfaces with 2 ports (switch), 4 rear USB interfaces, and supports Sm@rtServer, RDP, and VNC viewer.
3. What mounting and protection details should be verified?
It is a built-in unit for front mounting. Protection is IP65 at the front and IP20 at the rear; support arm mounting and stand mounting are not supported.
