Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | ITC1900 V3 |

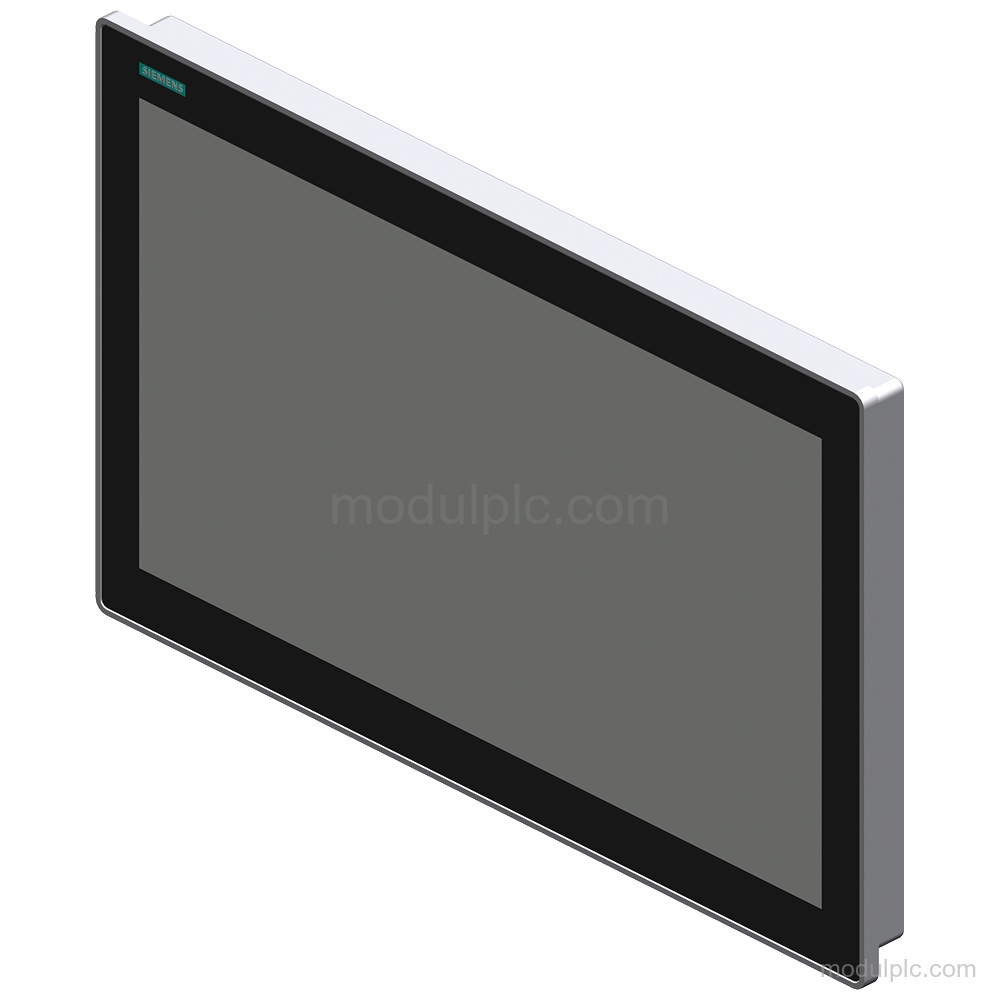

| Display | 18.5 in; 19" TFT widescreen display |
| Image resolution | 1 366 x 768 |
| Touch screen | Projective-capacitive multi-touch screen |

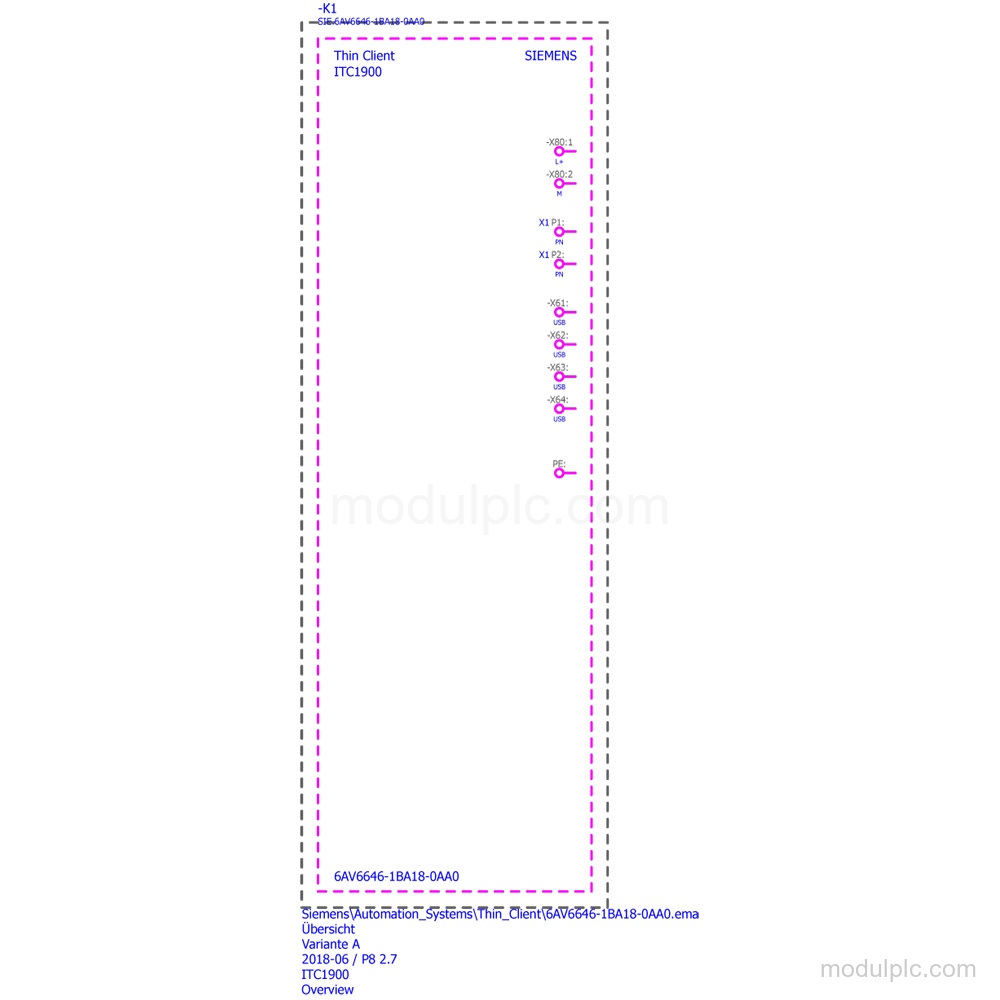

| Industrial Ethernet interfaces | 2; 2 ports (switch) |
| USB interfaces | 4; on rear |
| Terminal-link protocols | Sm@rtServer, RDP and VNC viewer |
| Supply voltage | 24 V DC; 19.2 V to 28.8 V |

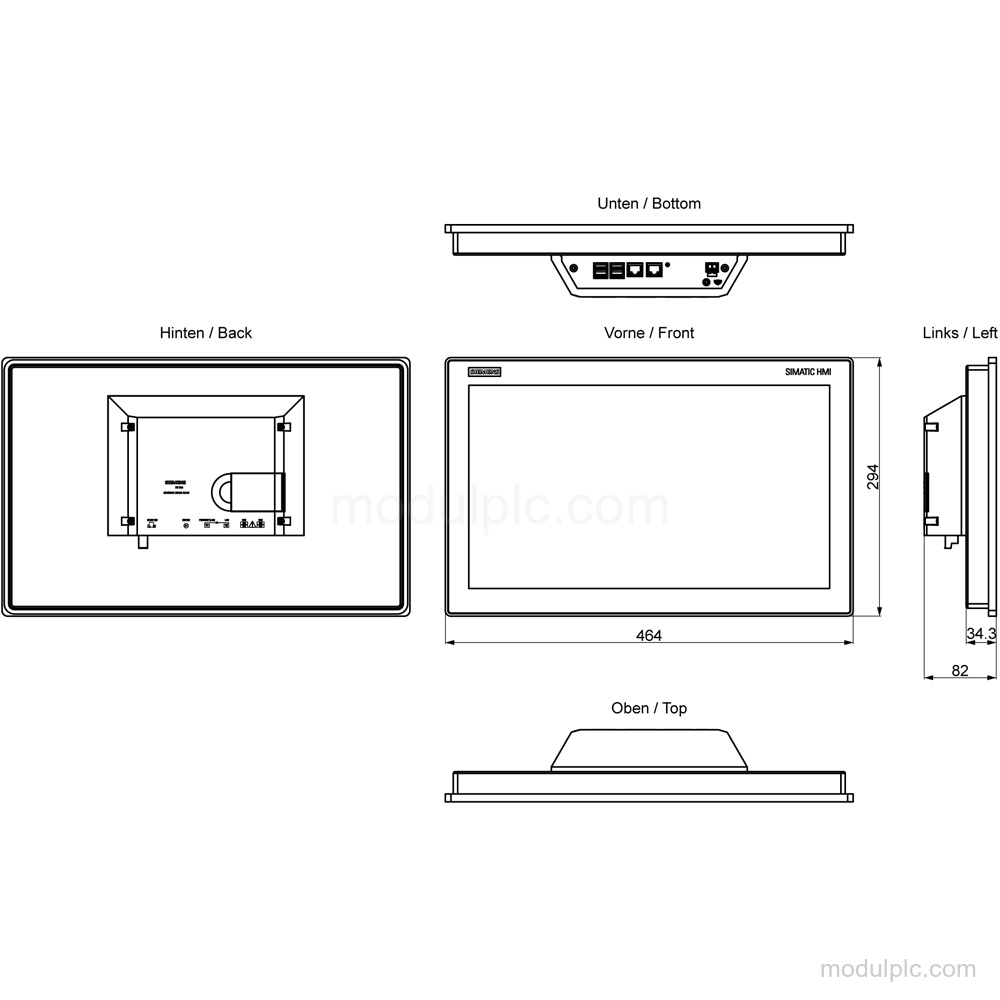

| Mounting | Built-in unit; front mounting |
| Protection | IP65 at the front; IP20 at the rear |
Key Features
- TFT widescreen display: 18.5 in; 19" TFT display with LED backlighting, 1 366 x 768 image resolution and 16 777 216 colors.
- Capacitive multi-touch: Projective-capacitive multi-touch screen with monitor keyboard.
- Industrial Ethernet: 2 industrial Ethernet interfaces with 2 ports (switch); transmission rate, max. 1 000 Mbit/s.
- Terminal-link protocols: Sm@rtServer, RDP and VNC viewer are supported; Citrix and SINUMERIK are not supported.
- DC supply: Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V.
- Built-in front mounting: Built-in unit with front mounting; IP65 at the front and IP20 at the rear.
Frequently Asked Questions
1. What display does the 6AV6646-1BA18-0AA0 have?
It has an 18.5 in; 19" TFT widescreen display with LED backlighting and 1 366 x 768 image resolution.
2. How many industrial Ethernet and USB interfaces are available?
It has 2 industrial Ethernet interfaces with 2 ports (switch) and 4 USB interfaces on the rear.
3. Which terminal-link protocols are supported?
Sm@rtServer, RDP and VNC viewer are supported. Citrix and SINUMERIK are not supported.
4. What supply voltage does this model require?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V.
5. How is the unit mounted and protected?
It is a built-in unit for front mounting, with IP65 at the front and IP20 at the rear.
