Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | ITC1500 V3 |
| Display | 15.6 in TFT widescreen display, LED backlighting |
| Touch operation | Projective-capacitive multi-touch screen |
| Image resolution | 1 366 x 768 |
| Industrial Ethernet interfaces | 2; 2 ports (switch) |
| USB interfaces | 4; on rear |
| Supported terminal protocols | Sm@rtServer, RDP, VNC viewer |
| Rated supply voltage | 24 V DC |
| Permissible supply range | 19.2 V to 28.8 V DC |
| Front protection | IP65; NEMA Enclosure Type 4, 4x and 12 |

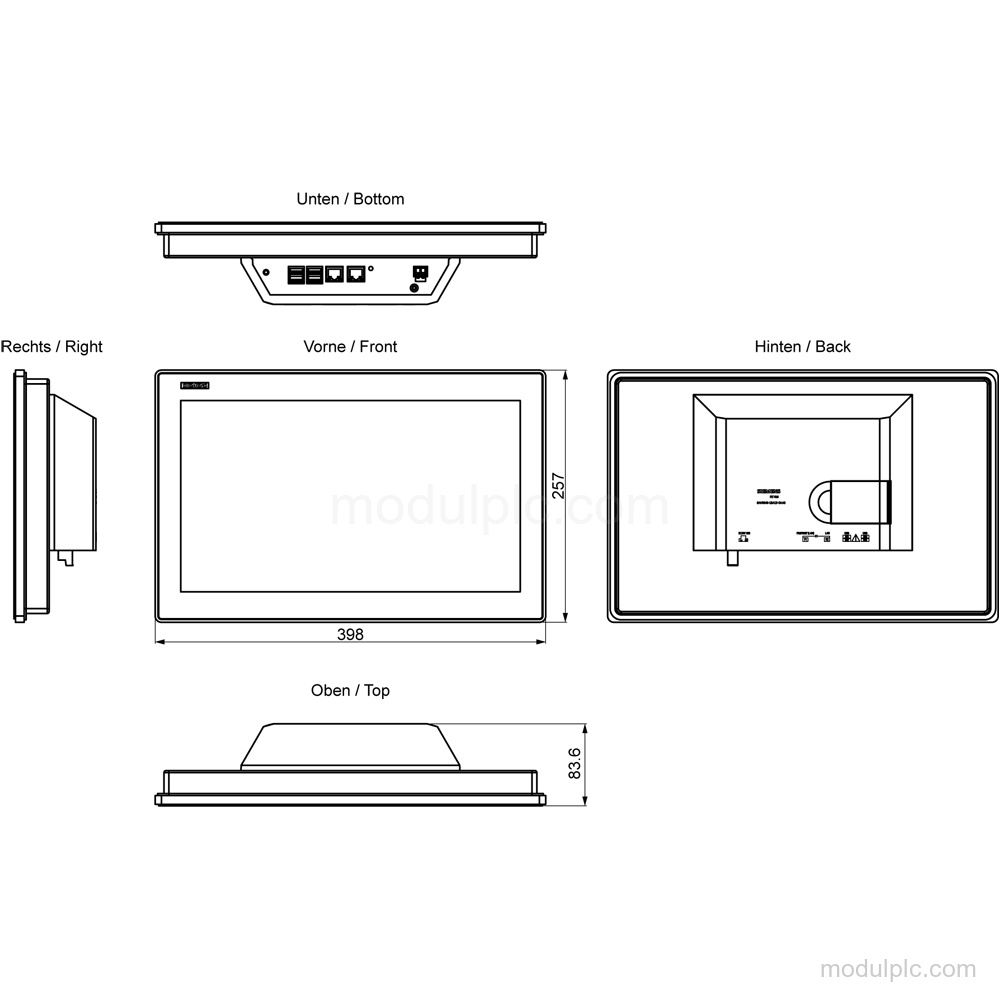

| Mounting | Built-in unit; front mounting |
Applications
- Remote desktop access: Supports remote terminal connections using RDP, VNC viewer and Sm@rtServer.
- Web-based access: Supports web characteristics including HTTP, HTML5, XML, CSS and JavaScript.
Key Features
- Industrial thin client: Product type designation: ITC1500 V3; standard built-in unit design.
- Widescreen multi-touch display: 15.6 in TFT widescreen display with LED backlighting, 1 366 x 768 resolution and projective-capacitive multi-touch.
- Ethernet and USB interfaces: 2 industrial Ethernet interfaces with switch function and 4 USB interfaces on the rear.
- Supported protocols: Supports RDP, VNC viewer, Sm@rtServer, TCP/IP, DHCP, SNMP, DCP, LLDP and HTML5.
- DC supply: Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC.
- Front protection and mounting: IP65 and NEMA Enclosure Type 4, 4x and 12 at the front; front mounting and built-in mounting supported.
Frequently Asked Questions
1. What display does Siemens 6AV6646-1BA15-0AA0 have?
It has a 15.6 in TFT widescreen display with LED backlighting, 1 366 x 768 resolution and projective-capacitive multi-touch.
2. How many Ethernet and USB interfaces are available?
It has 2 industrial Ethernet interfaces with switch function and 4 USB interfaces on the rear.
3. Which terminal protocols does the ITC1500 V3 support?
It supports Sm@rtServer, RDP and VNC viewer; Citrix and SINUMERIK are not supported.
4. What supply voltage is required?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
5. How is this unit mounted and protected?
It is a built-in unit for front mounting. Front protection is IP65, with NEMA Enclosure Type 4, 4x and 12.
