Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Display | 19 in color TFT, 65 536 colors |
| Resolution | 1 280 x 1 024 pixel |
| Touch operation | Analog, resistive touch screen |
| Interfaces | 1x RS 422, 1x RS 485, 2x Ethernet (RJ45), 2 USB |
| User data memory | 12 288 kbyte |
| Protocols | PROFINET IO, PROFIBUS, EtherNet/IP, MPI, TCP/IP, Sm@rtServer, MODBUS |
| Rated current consumption | 2.5 A |
| Typical active power input | 60 W |
| Front protection | IP65 |
| Rear protection | IP20 |
Key Features
- 19-inch color TFT display: The display is a 19 in color TFT with 65 536 colors and 1 280 x 1 024 pixel resolution.
- Analog resistive touch screen: The touch screen is analog and resistive; numeric, alphanumeric and hexadecimal keyboards are available.
- Serial, Ethernet and USB interfaces: Interfaces include 1x RS 422, 1x RS 485, 2x Ethernet (RJ45) and 2 USB interfaces; each USB interface supports up to 1 GB.
- Protocol support: The unit supports PROFINET IO, PROFIBUS, EtherNet/IP, MPI, TCP/IP, Sm@rtServer and MODBUS.
- DC supply and power input: Supply voltage type: DC. Rated current consumption: 2.5 A. Typical active power input: 60 W.
- Front and rear protection: Protection is IP65 at the front and IP20 at the rear. The front has NEMA 4 and NEMA 12 protection when installed.
Frequently Asked Questions
1. What display and touch technology does 6AV6644-0AC01-2AX1 have?
It has a 19 in color TFT display with 65 536 colors, 1 280 x 1 024 pixel resolution and an analog resistive touch screen.

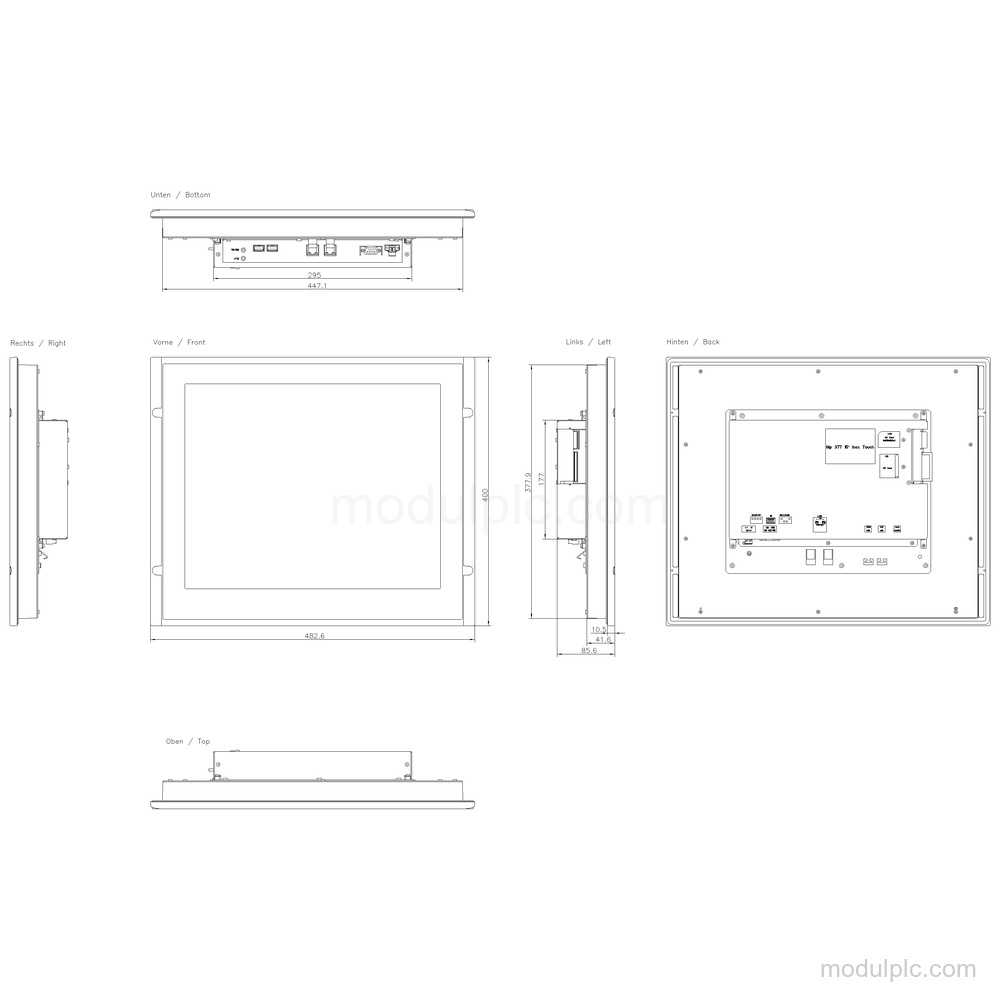

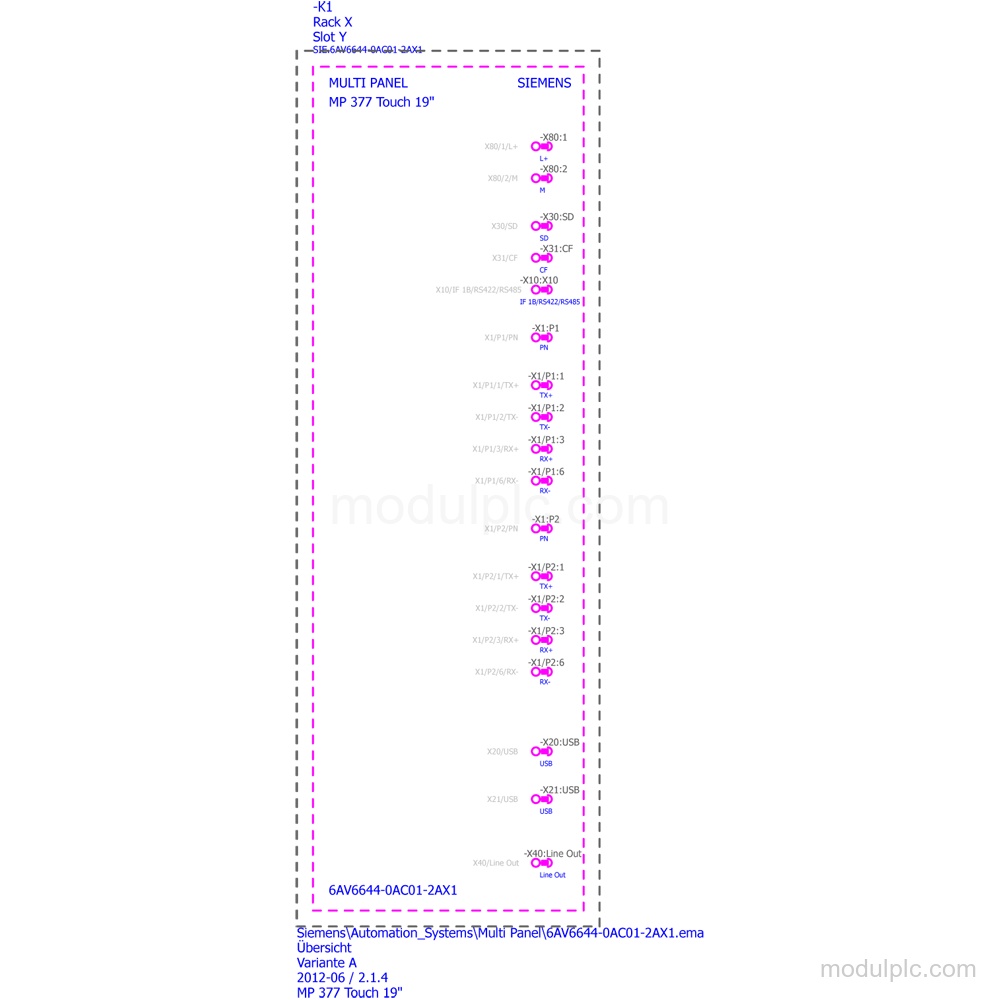

2. Which interfaces are available on 6AV6644-0AC01-2AX1?
It has 1x RS 422, 1x RS 485, 2x Ethernet (RJ45), 2 USB interfaces, 1x CF card slot and 1x Multimedia Card slot.
3. Which protocols does this MP377 support?
It supports PROFINET IO, PROFIBUS, EtherNet/IP, MPI, TCP/IP, Sm@rtServer and MODBUS. PROFIsafe is not supported.
4. What are the supply and power values?
The supply voltage type is DC, rated current consumption is 2.5 A and typical active power input is 60 W.
