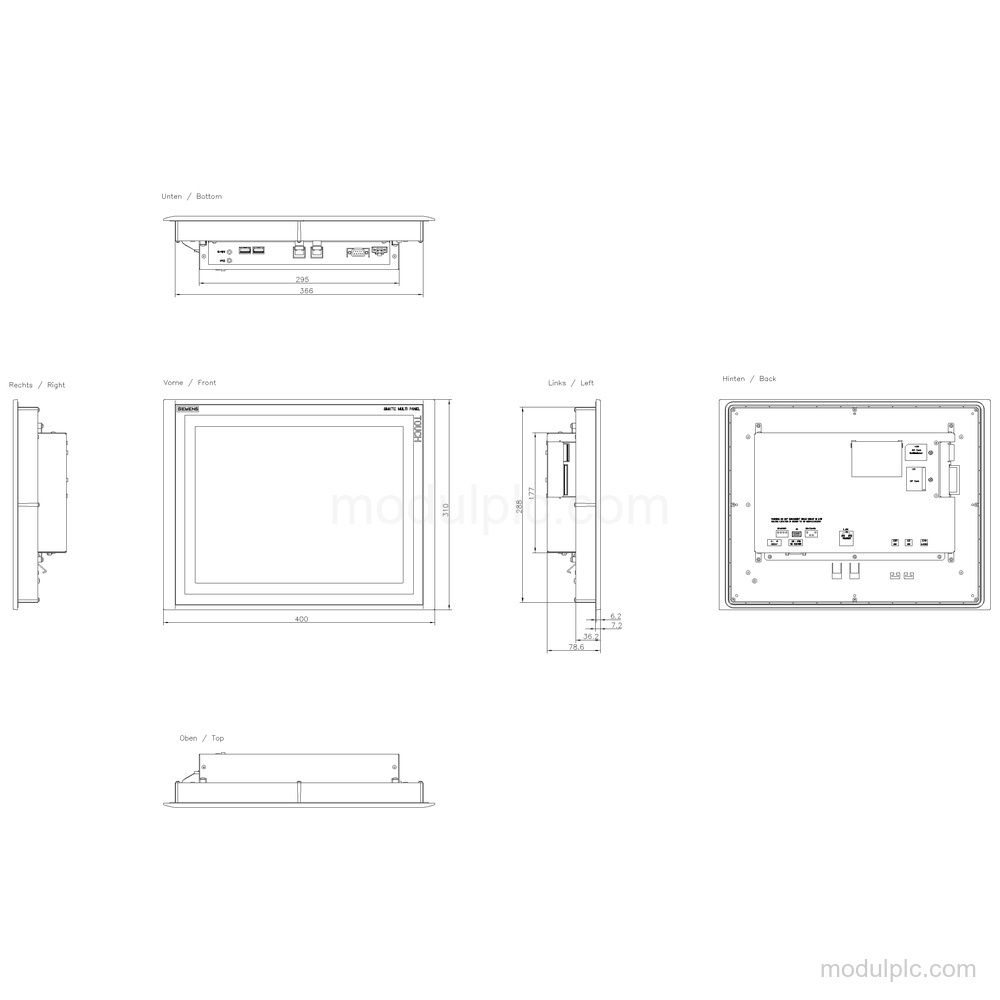

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | MP377 15" touch |
| Display | 15 in color TFT, 65 536 colors |
| Resolution | 1 024 pixel × 768 pixel |
| Touch screen | Analog, resistive |
| Interfaces | 1x RS 422, 1x RS 485, 2x Ethernet (RJ45) |
| Protocols | PROFINET IO, PROFIBUS, EtherNet/IP, MPI, TCP/IP, Sm@rtServer, MODBUS |
| Supply voltage | DC |
| Rated current consumption | 1.9 A |
| Typical active power input | 45.6 W |
| Front protection | IP65 |
| Rear protection | IP20 |
Key Features
- 15" color TFT touch display: 15 in color TFT display with 65 536 colors, 1 024 pixel horizontal resolution, and 768 pixel vertical resolution.
- Touch operation and keyboards: Analog, resistive touch screen with numeric, alphanumeric, and hexadecimal keyboards.

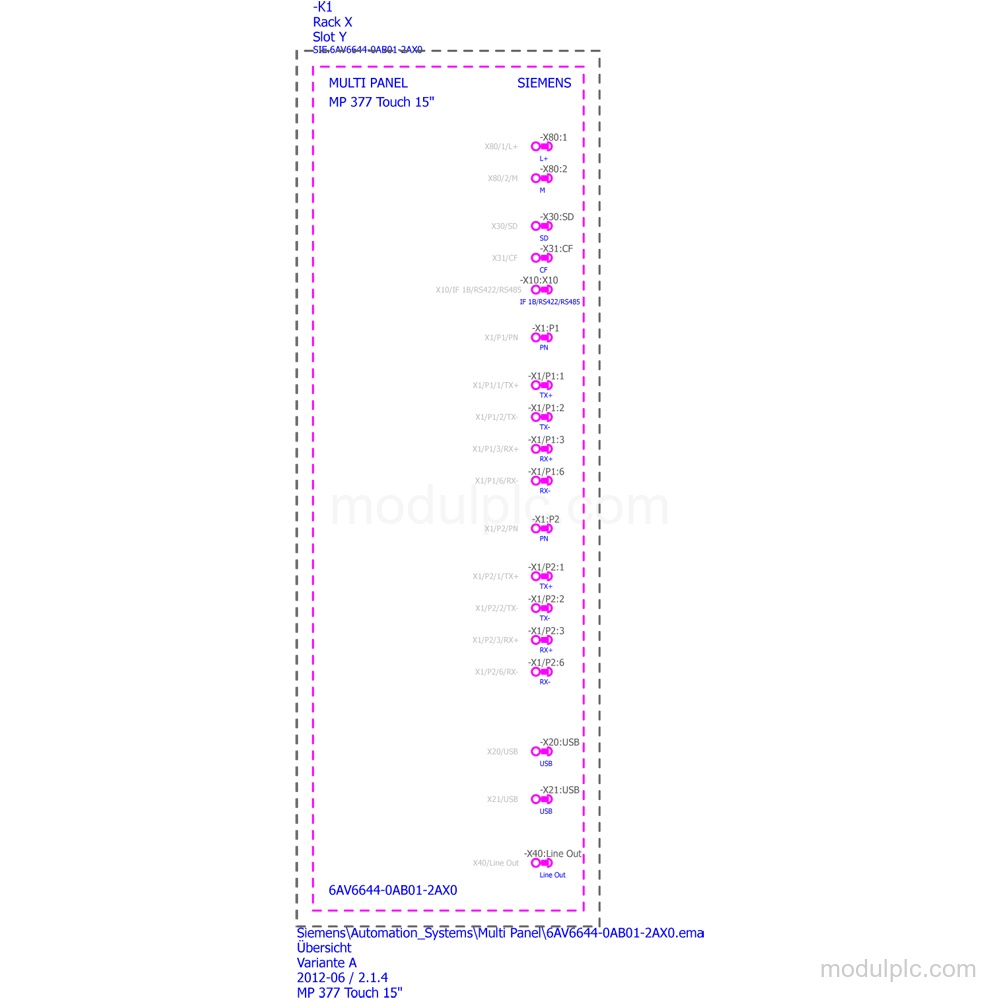

- Serial and Ethernet interfaces: 1x RS 422, 1x RS 485, and 2x Ethernet (RJ45) interfaces.
- USB and memory interfaces: 2 USB interfaces, 1x CF card slot, and 1x Multimedia Card slot up to 128 MB.
- Supported protocols: Supports PROFINET IO, PROFIBUS, EtherNet/IP, MPI, TCP/IP, Sm@rtServer, and MODBUS.
- Supply and protection: DC supply voltage, 1.9 A rated current consumption, 45.6 W typical active power input, IP65 front protection, and IP20 rear protection.
Frequently Asked Questions
1. What display does the Siemens 6AV6644-0AB01-2AX0 have?
It has a 15 in color TFT display with 65 536 colors and 1 024 pixel × 768 pixel resolution.
2. Which interfaces are available on this MP377 touch panel?
It has 1x RS 422, 1x RS 485, 2x Ethernet (RJ45), 2 USB interfaces, 1x CF card slot, and 1x Multimedia Card slot up to 128 MB.
3. Which protocols does the exact model support?
It supports PROFINET IO, PROFIBUS, EtherNet/IP, MPI, TCP/IP, Sm@rtServer, and MODBUS.
4. What are the supply and protection details?
The supply voltage type is DC, rated current consumption is 1.9 A, typical active power input is 45.6 W, front protection is IP65, and rear protection is IP20.
