Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Rated output power (LO) | 37.00 kW | 50.00 hp |
| Rated output power (HO) | 30.00 kW | 40.00 hp |
| Input supply | 3 AC, 380 … 480 V ±10 %, 47 … 63 Hz |
| Output frequency for vector control | 0 … 200 Hz |
| Output frequency for V/f control | 0 … 550 Hz |
| Integrated braking chopper | Built in |
| Protection | IP20 / UL open type |
| Frame size | FSD |
| Motor-end connection | Screw-type terminals |
Key Features
- Power ratings: Rated output power: 37.00 kW / 50.00 hp (LO) or 30.00 kW / 40.00 hp (HO).
- Input supply: Input: 3 AC, 380 … 480 V ±10 %, 47 … 63 Hz.
- Output frequency: Output frequency: 0 … 200 Hz for vector control or 0 … 550 Hz for V/f control.
- Integrated braking chopper: The Power Module has a built-in braking chopper and DC-link screw-type terminals for a braking resistor.
- Connections: Line-side and motor-end connections use screw-type terminals for 10.00 … 35.00 mm2 conductors; the DC link accepts 2.50 … 16.00 mm2.
- Installation and protection: FSD frame size, IP20 / UL open type protection, dimensions 200 mm × 472 mm × 237 mm, and net weight 17.00 kg (37.48 lb).
Frequently Asked Questions
1. What output power does 6SL3210-1PE27-5UL0 provide?
It provides 37.00 kW / 50.00 hp at low overload and 30.00 kW / 40.00 hp at high overload.
2. What supply does this Power Module use?
The input is 3 AC, 380 … 480 V ±10 %, at 47 … 63 Hz.

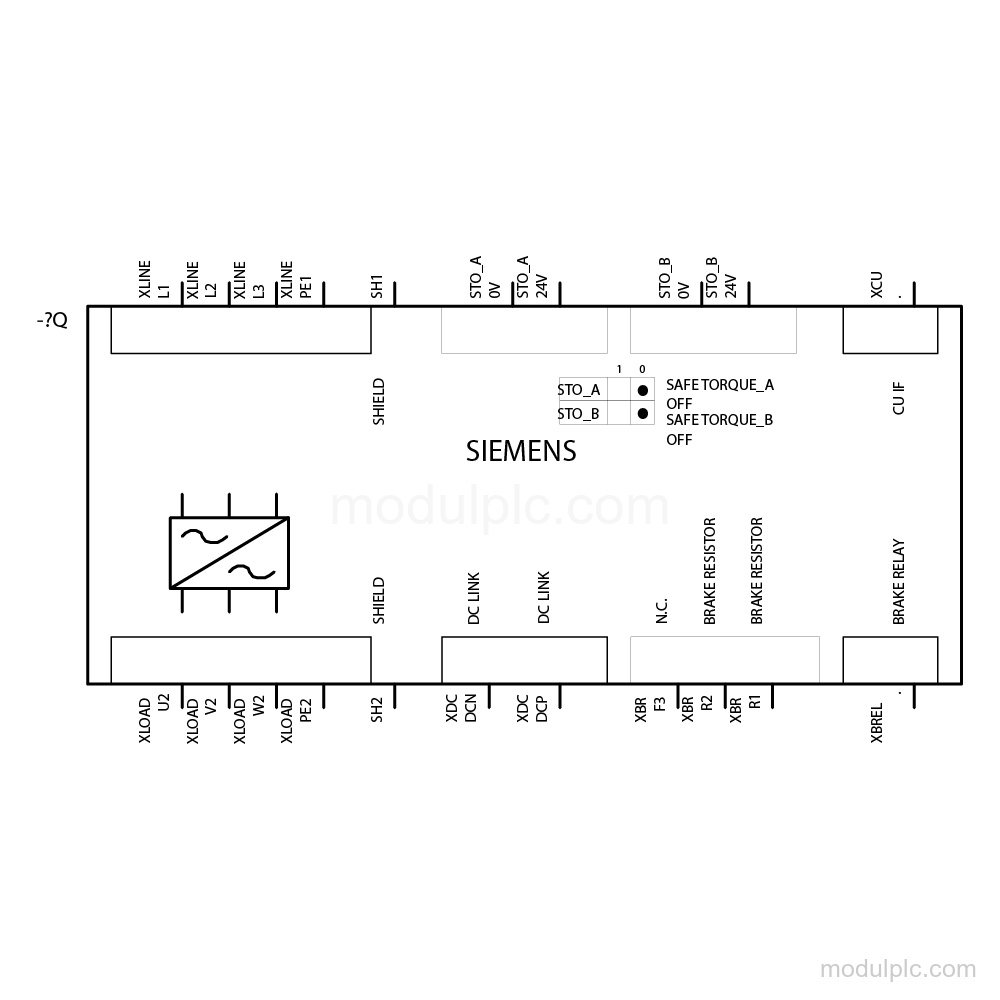

3. What connections are provided?
Line-side and motor-end connections use screw-type terminals. The DC link for a braking resistor also uses screw-type terminals.
4. What is included in this configuration?
It has a built-in braking chopper and is without a filter, control unit, and panel.
