Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Input supply | 3 AC, 380 … 480 V ±10 %, 47 … 63 Hz |
| Rated output power, LO | 30.00 kW | 40.00 hp |
| Rated output power, HO | 22.00 kW | 30.00 hp |
| Rated output current, LO | 60.00 A |
| Rated output current, HO | 45.00 A |
| Output frequency, vector control | 0 … 200 Hz |
| Output frequency, V/f control | 0 … 550 Hz |
| Integrated filter | Class A |
| Protection | IP20 / UL open type |
| Frame size | FSD |
Key Features
- Input supply: 3 AC input with line voltage 380 … 480 V ±10 % and line frequency 47 … 63 Hz.
- Output power: Rated output power is 30.00 kW | 40.00 hp for LO and 22.00 kW | 30.00 hp for HO.
- Output frequency: Output frequency is 0 … 200 Hz for vector control and 0 … 550 Hz for V/f control.
- Integrated functions: The module has a built-in Class A filter and braking chopper.

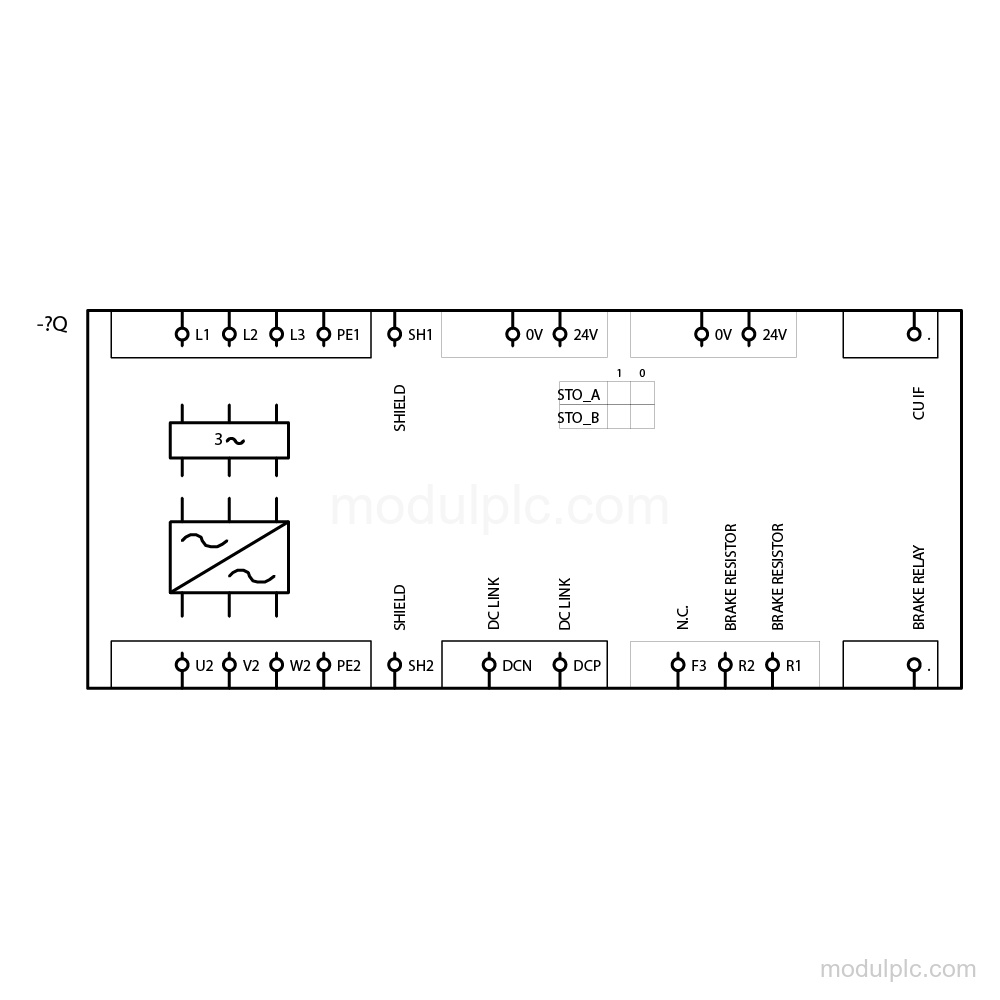

- Connections: Line-side and motor-end connections use screw-type terminals for 10.00 … 35.00 mm2 (AWG 8 … AWG 2) conductors.
- Protection and dimensions: Protection is IP20 / UL open type; frame size is FSD, with dimensions of 200 mm width, 472 mm height, and 237 mm depth.
Frequently Asked Questions
1. What is the rated output power of 6SL3210-1PE26-0AL0?
Rated output power is 30.00 kW | 40.00 hp for LO and 22.00 kW | 30.00 hp for HO.
2. Which input supply does this power module use?
It uses 3 AC input at 380 … 480 V ±10 % and 47 … 63 Hz.
3. Which connections and conductor sizes are provided?
Line-side and motor-end connections use screw-type terminals for 10.00 … 35.00 mm2 (AWG 8 … AWG 2) conductors.
