Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Input supply | 3 AC, 380 … 480 V ±10 %, 47 … 63 Hz |
| Rated output power, LO | 7.50 kW | 10.00 hp |
| Rated output power, HO | 5.50 kW | 7.50 hp |
| Rated output current, LO | 18.00 A |
| Rated output current, HO | 13.20 A |
| Maximum output current | 27.00 A |
| Output frequency, vector control | 0 … 200 Hz |
| Output frequency, V/f control | 0 … 550 Hz |
| Braking chopper | Built-in |
| Protection | IP20 / UL open type |
| Frame size | FSB |
Applications
- Motor control: Controls motor output using vector control with an output frequency of 0 … 200 Hz or V/f control with an output frequency of 0 … 550 Hz.
Key Features
- Input supply: Input: 3 AC, 380 … 480 V ±10 %, 47 … 63 Hz.
- Output ratings: Rated output power: 7.50 kW | 10.00 hp (LO) or 5.50 kW | 7.50 hp (HO). Rated output current: 18.00 A (LO) or 13.20 A (HO).
- Control frequency ranges: Output frequency: 0 … 200 Hz for vector control and 0 … 550 Hz for V/f control. Pulse frequency: 4 kHz.
- Braking and control unit: The module has a built-in braking chopper and is supplied without a control unit and panel. Approved for CU firmware version V4.6.

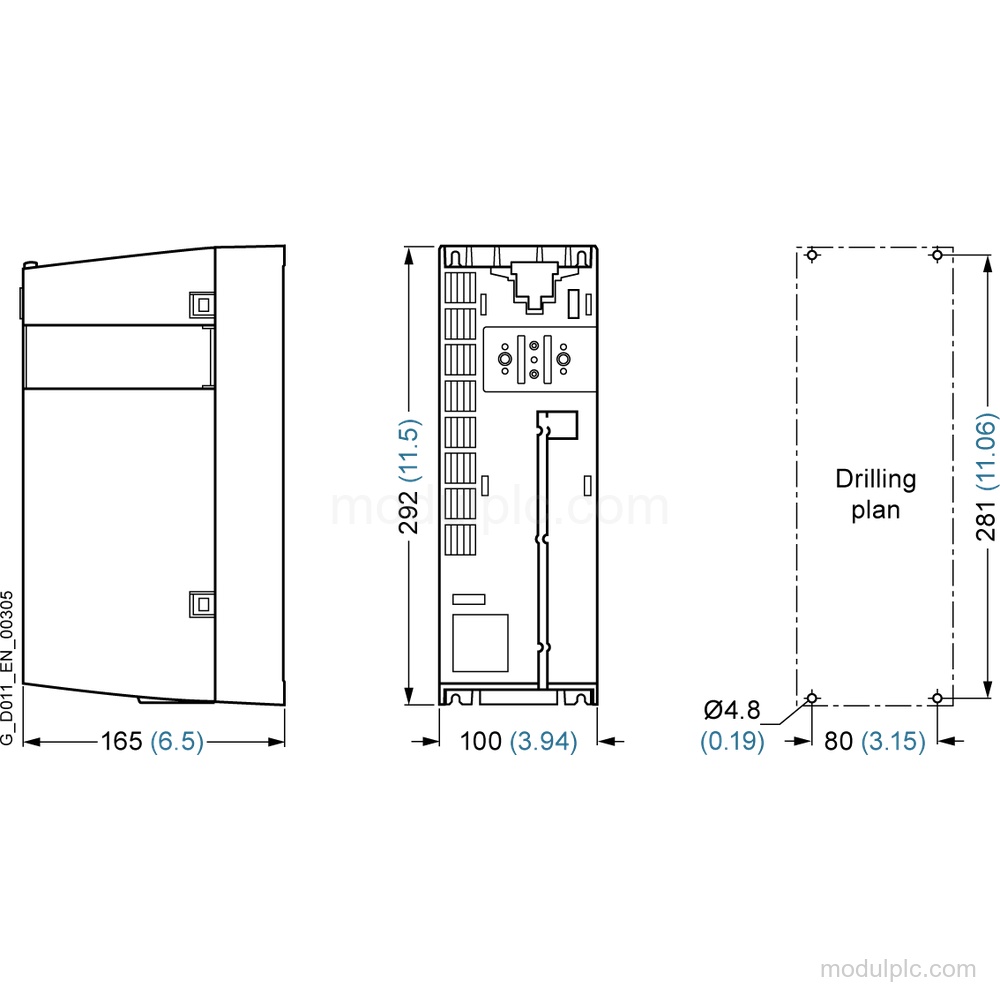

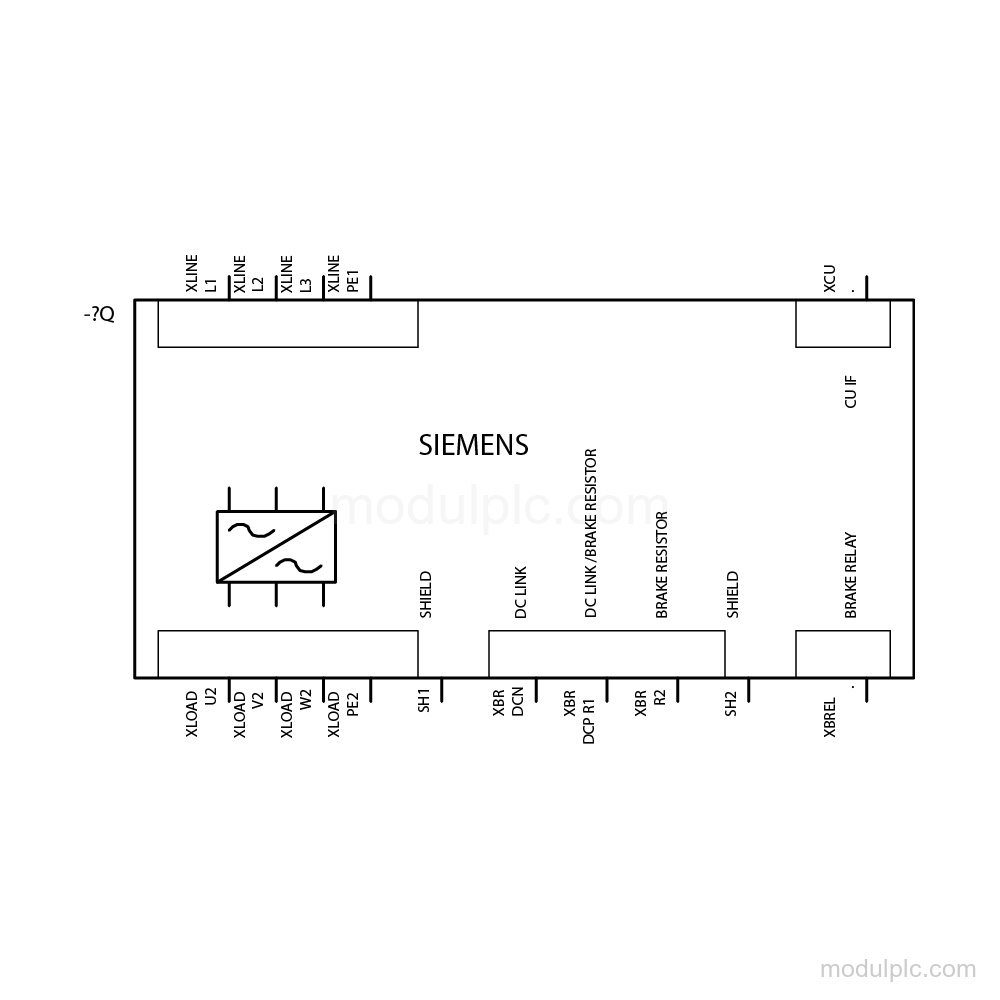

- Connections and mounting: Line-side and motor-end connections use plug-in screw terminals for 1.50 … 6.00 mm2 (AWG 16 … AWG 10) conductors. Frame size: FSB; dimensions: 100 mm × 292 mm × 165 mm.
Frequently Asked Questions
1. What input supply does the 6SL3210-1PE21-8UL0 use?
It uses 3 AC, 380 … 480 V ±10 % at 47 … 63 Hz.
2. What are the LO and HO output ratings?
LO rated output is 7.50 kW | 10.00 hp at 18.00 A. HO rated output is 5.50 kW | 7.50 hp at 13.20 A.
3. Which output frequency ranges are supported?
Vector control supports 0 … 200 Hz, while V/f control supports 0 … 550 Hz.
4. Which connections and conductor sizes are provided?
The line side and motor end use plug-in screw terminals for 1.50 … 6.00 mm2 (AWG 16 … AWG 10) conductors.
5. Does the configuration include a control unit and panel?
It is without a control unit and panel. The module has a built-in braking chopper and is approved for CU firmware version V4.6.
