Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | SINAMICS POWER MODULE PM240-2 |
| Input supply | 3 AC, 380 … 480 V ±10 %, 47 … 63 Hz |
| Rated output power, LO | 5.50 kW | 7.50 hp |
| Rated output power, HO | 4.00 kW | 5.00 hp |
| Output frequency, vector control | 0 … 200 Hz |
| Output frequency, V/f control | 0 … 550 Hz |
| Output connection | Plug-in screw terminals |
| Frame size | FSB |
| Degree of protection | IP20 / UL open type |
| Integrated functions | Class A filter and braking chopper |
| Configuration exclusion | Without control unit and panel |
Key Features
- Input supply: 3 AC input, 380 … 480 V ±10 % line voltage, and 47 … 63 Hz line frequency.
- Output power: Rated output power is 5.50 kW | 7.50 hp for LO and 4.00 kW | 5.00 hp for HO.
- Output frequency: Output frequency is 0 … 200 Hz for vector control and 0 … 550 Hz for V/f control.
- Integrated functions: Built-in Class A filter and braking chopper.

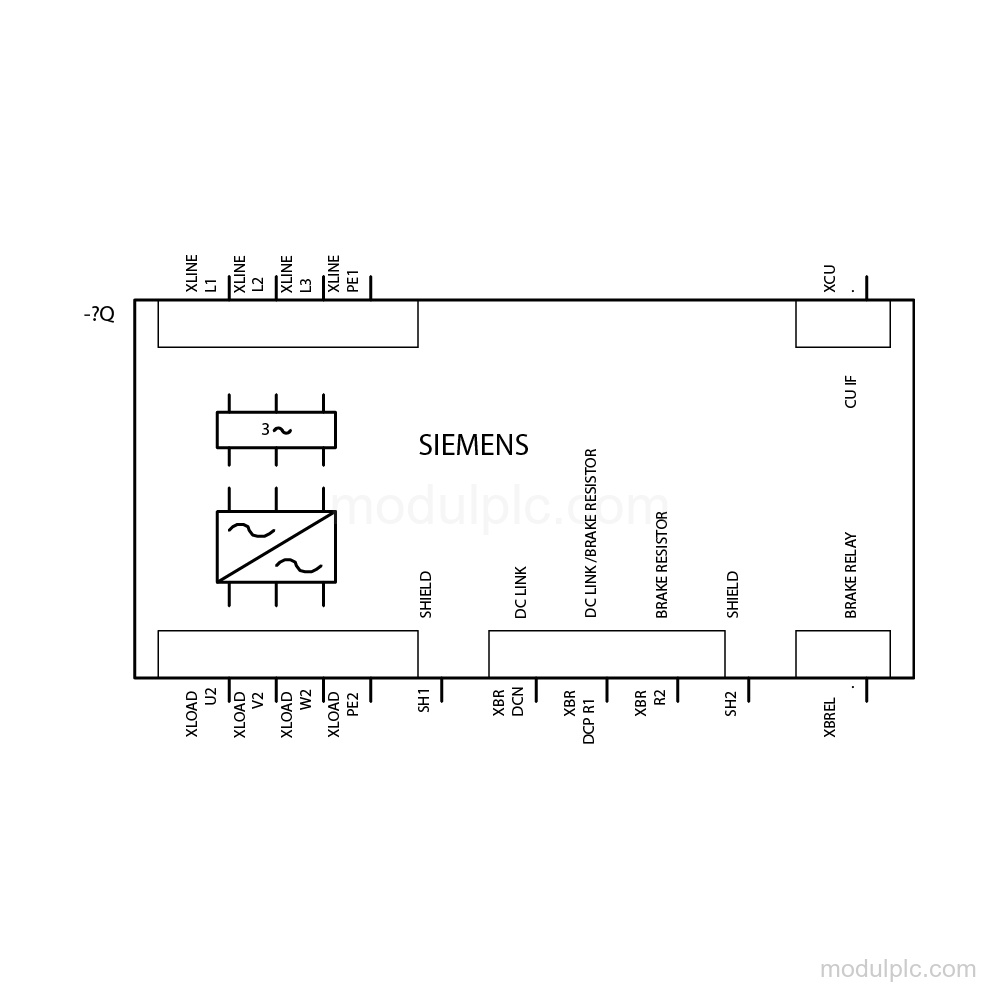

- Connections: Plug-in screw terminals are provided on the line side and motor end for 1.50 … 6.00 mm2 (AWG 16 … AWG 10) conductors.
- Installation and protection: FSB frame size, IP20 / UL open type, dimensions 100 mm (3.94 in) × 292 mm (11.50 in) × 165 mm (6.50 in), and net weight 3.10 kg (6.83 lb).
Frequently Asked Questions
1. What type of module is Siemens 6SL3210-1PE21-4AL0?
It is a SINAMICS POWER MODULE PM240-2 with a built-in Class A filter and braking chopper.
2. What are the rated output power values?
Rated output power is 5.50 kW | 7.50 hp for LO and 4.00 kW | 5.00 hp for HO.
3. What output frequency ranges are supported?
The output frequency is 0 … 200 Hz for vector control and 0 … 550 Hz for V/f control.
4. What connections does the module use?
It uses plug-in screw terminals on the line side and motor end, for 1.50 … 6.00 mm2 (AWG 16 … AWG 10) conductors.
5. What is included in this configuration?
It is without a control unit and panel.
