Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Rated power (LO) | 2.20 kW | 3.00 hp |
| Rated power (HO) | 1.50 kW | 2.00 hp |
| Input | 3 AC, 380 … 480 V ±10 %, 47 … 63 Hz |
| Output frequency for vector control | 0 … 200 Hz |
| Output frequency for V/f control | 0 … 550 Hz |
| Integrated filter | Class A |
| Maximum output current | 8.90 A |
| Line-side and motor-end connections | Plug-in screw terminals |
| Degree of protection | IP20 / UL open type |
Key Features
- Power ratings: Rated power: 2.20 kW | 3.00 hp (LO) and 1.50 kW | 2.00 hp (HO).
- Input and output: Input: 3 AC, 380 … 480 V ±10 %, 47 … 63 Hz. Output: 3 AC, 400V IEC | 480V NEC, with maximum output current of 8.90 A.
- Control frequencies: Output frequency: 0 … 200 Hz for vector control and 0 … 550 Hz for V/f control. Pulse frequency: 4 kHz.
- Integrated functions: Integrated Class A filter and braking chopper.

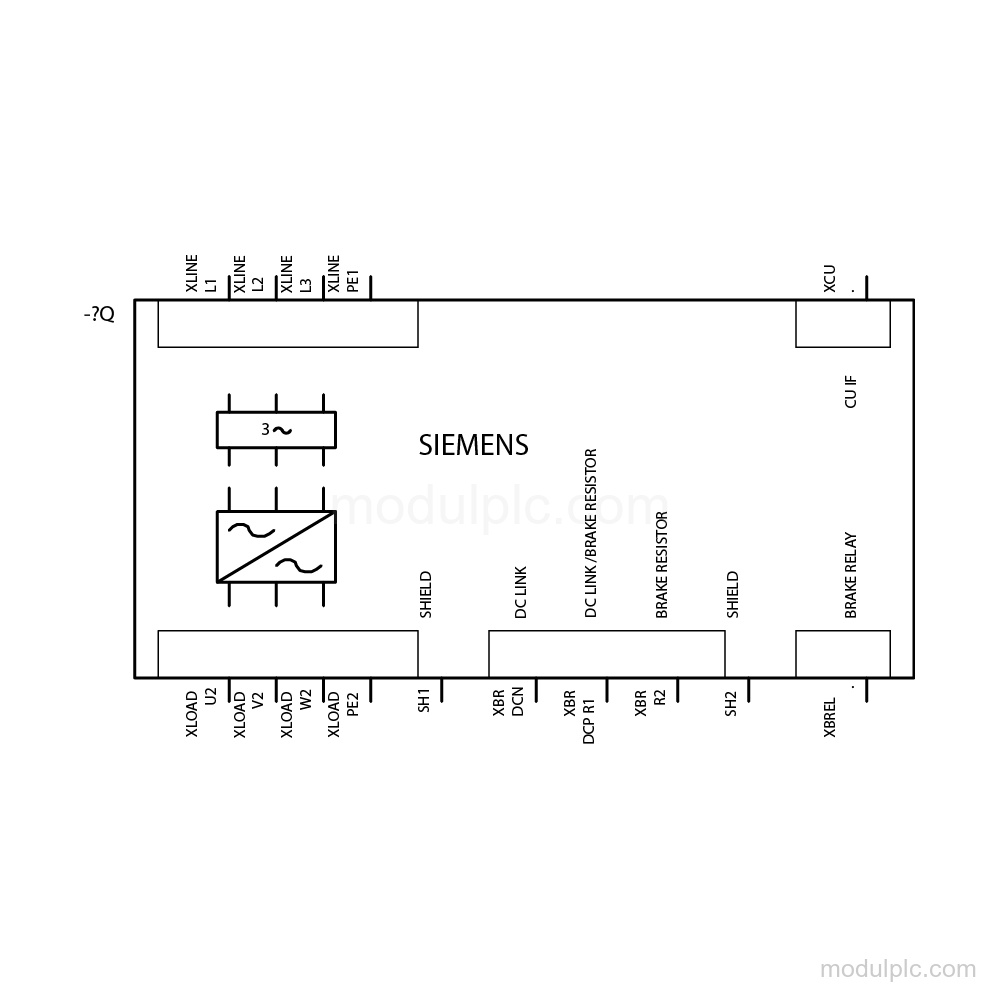

- Connections and motor cable: Line-side and motor-end connections use plug-in screw terminals for 1.50 … 2.50 mm2 (AWG 16 … AWG 14) conductors. Maximum motor cable length: 50 m (164.04 ft) shielded or 100 m (328.08 ft) unshielded.
- Mounting and protection: Frame size FSA; dimensions: 196 mm (H) x 73 mm (W) x 165 mm (D). Degree of protection: IP20 / UL open type.
Frequently Asked Questions
1. What power ratings does the 6SL3210-1PE16-1AL1 support?
Rated power is 2.20 kW | 3.00 hp (LO) or 1.50 kW | 2.00 hp (HO).
2. What are the input and output electrical data?
Input is 3 AC, 380 … 480 V ±10 % at 47 … 63 Hz. Output is 3 AC, 400V IEC | 480V NEC, with maximum output current of 8.90 A.
3. Which control frequency ranges are available?
Output frequency is 0 … 200 Hz for vector control and 0 … 550 Hz for V/f control.
4. Which connections and cable lengths are supported?
Both line-side and motor-end connections use plug-in screw terminals with 1.50 … 2.50 mm2 (AWG 16 … AWG 14) conductors. Maximum motor cable length is 50 m (164.04 ft) shielded or 100 m (328.08 ft) unshielded.
5. What is included in the configuration?
It has an integrated Class A filter and braking chopper. It is without a Control Unit and operating unit.
