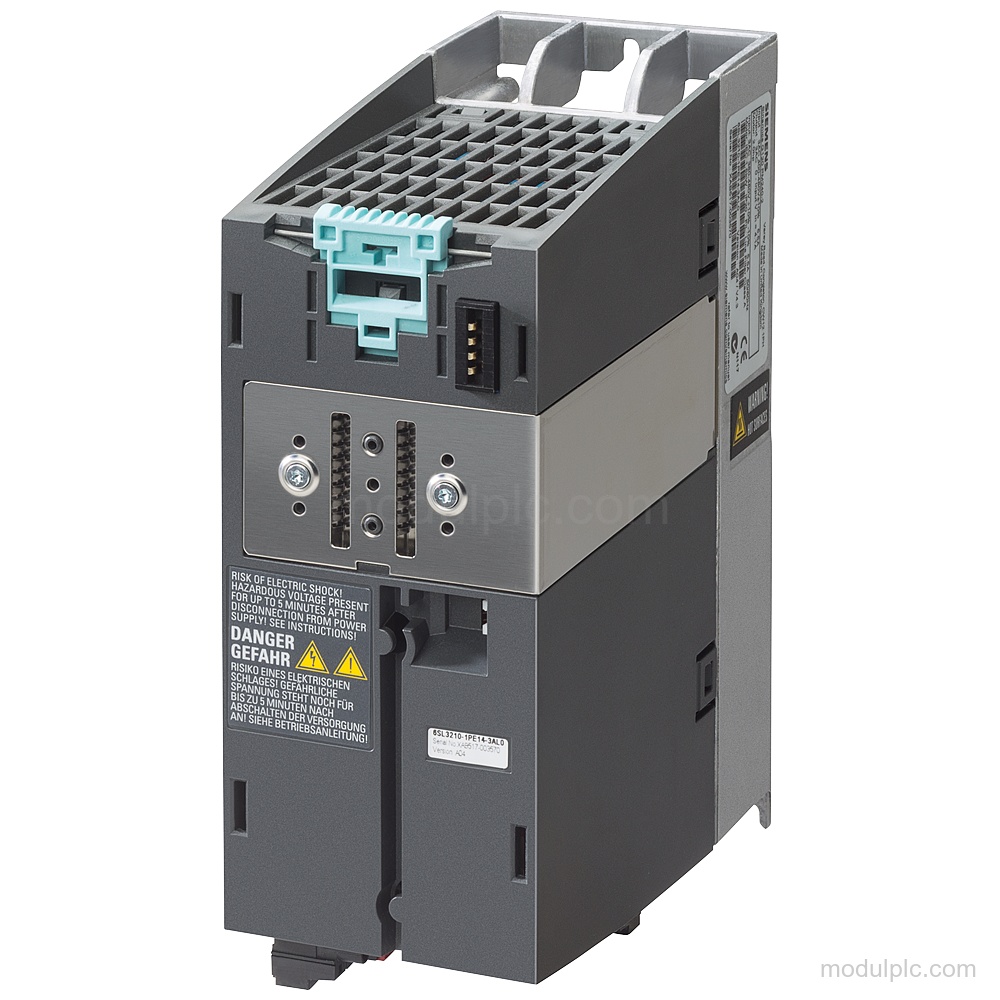

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | SINAMICS Power Module PM240-2, unfiltered, with integrated braking chopper |
| Input | 3 AC, 380 … 480 V ±10 %, 47 … 63 Hz |
| Rated power (LO) | 1.50 kW | 2.00 hp |
| Rated power (HO) | 1.10 kW | 1.50 hp |
| Output frequency for vector control | 0 … 200 Hz |
| Output frequency for V/f control | 0 … 550 Hz |
| Max. output current | 6.20 A |
| Line-side connection | Plug-in screw terminals; 1.00 … 2.50 mm2 (AWG 18 … AWG 14) |
| Motor-side connection | Plug-in screw terminals; 1.00 … 2.50 mm2 (AWG 18 … AWG 14) |
| Degree of protection | IP20 / UL open type |
Key Features
- Power module and braking chopper: SINAMICS Power Module PM240-2, unfiltered, with an integrated braking chopper.
- Input and output ratings: Input: 3 AC, 380 … 480 V ±10 %, 47 … 63 Hz. Output: 3 AC, 1.50 kW LO or 1.10 kW HO.
- Frequency and current: Output frequency: 0 … 200 Hz for vector control or 0 … 550 Hz for V/f control. Max. output current: 6.20 A.
- Connections and motor cable: Plug-in screw terminals on the line and motor sides; conductor cross-section: 1.00 … 2.50 mm2. Max. motor cable length: 50 m shielded or 100 m unshielded.
- Mounting and protection: Frame size FSA, dimensions 196 mm H x 73 mm W x 165 mm D, and degree of protection IP20 / UL open type.
Frequently Asked Questions
1. What is the function of Siemens 6SL3210-1PE14-3UL1?
It is a SINAMICS Power Module PM240-2, unfiltered, with an integrated braking chopper.
2. What are the rated output powers?
Rated power is 1.50 kW | 2.00 hp for LO and 1.10 kW | 1.50 hp for HO.
3. Which connections and motor cable lengths are supported?
It has plug-in screw terminals on the line and motor sides. The maximum motor cable length is 50 m shielded or 100 m unshielded.
