Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module | SINAMICS Power Module PM240-2, unfiltered, with integrated braking chopper |
| Input supply | 3 AC, 380 … 480 V ±10 %, 47 … 63 Hz |
| Rated output power, LO | 0.75 kW | 1.00 hp |
| Rated output power, HO | 0.55 kW | 0.75 hp |
| Output frequency, vector control | 0 … 200 Hz |
| Output frequency, V/f control | 0 … 550 Hz |
| Output connection | Plug-in screw terminals |
| Protection | IP20 / UL open type |
| Frame size | FSA |
| Firmware release | Released as of CU firmware version V4.6 |
Key Features

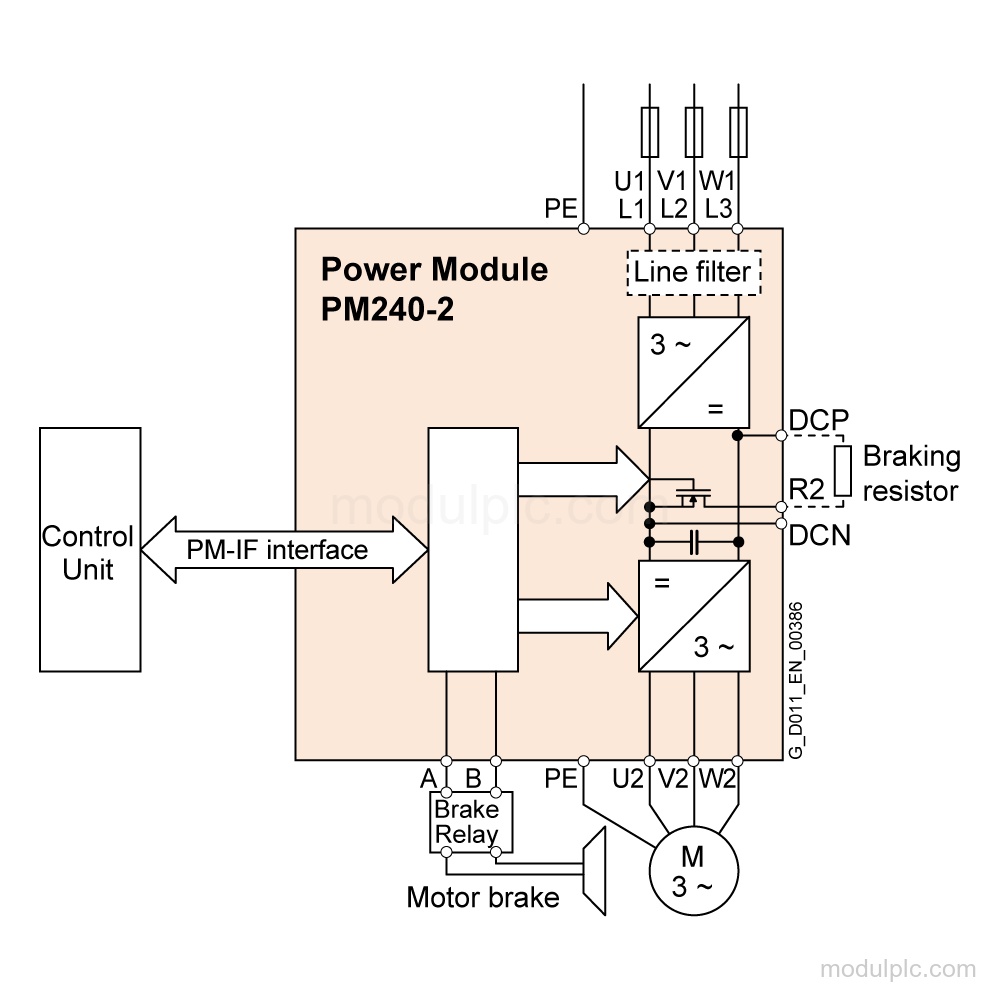

- Power module type: SINAMICS Power Module PM240-2, unfiltered, with integrated braking chopper.
- Input supply: 3 AC, 380 … 480 V ±10 %, 47 … 63 Hz.
- Rated output power: 0.75 kW | 1.00 hp at low overload (LO); 0.55 kW | 0.75 hp at high overload (HO).
- Output frequency: 0 … 200 Hz for vector control and 0 … 550 Hz for V/f control.

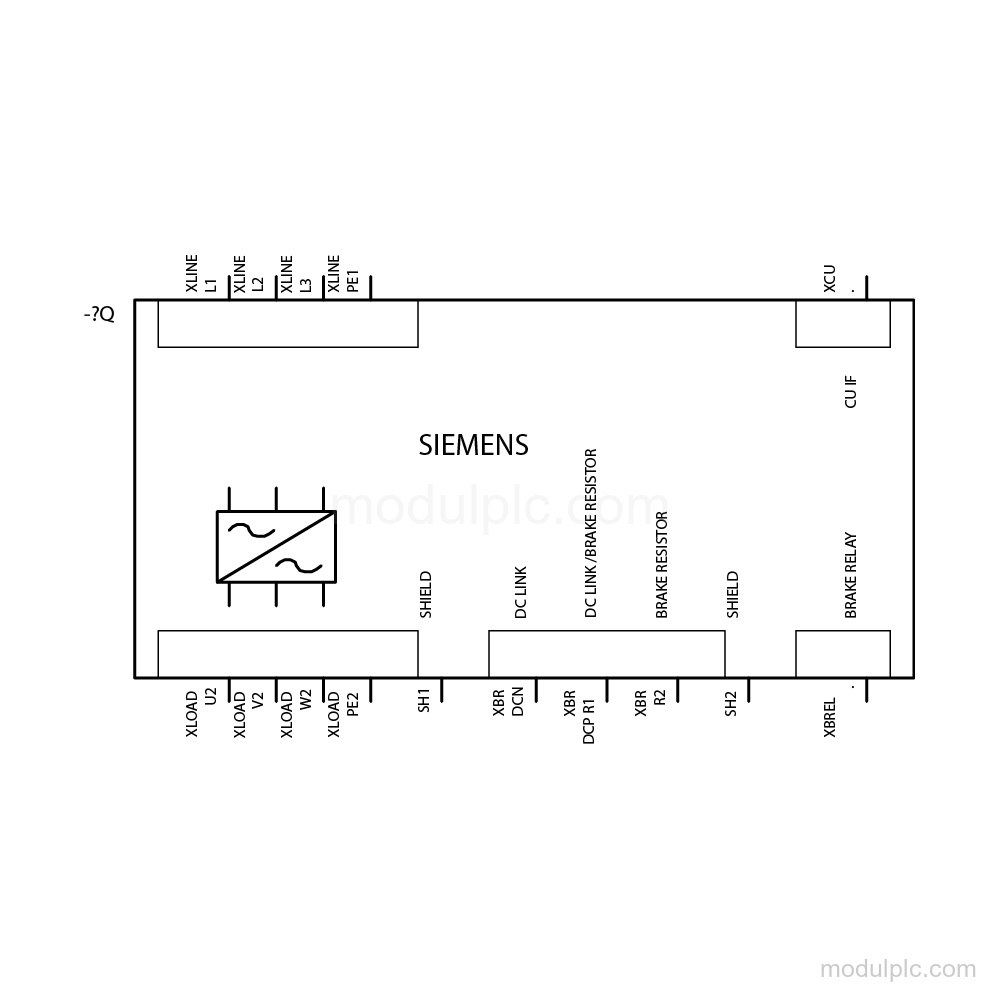

- Connections and cable length: Plug-in screw terminals for the line side and motor end; conductor cross-section 1.00 … 2.50 mm2 (AWG 18 … AWG 14). Maximum motor cable length is 50 m shielded or 100 m unshielded.
- Installation and protection: Frame size FSA, IP20 / UL open type, 73 mm wide × 196 mm high × 165 mm deep, net weight 1.40 kg (3.09 lb).
Frequently Asked Questions
1. What type of module is Siemens 6SL3210-1PE12-3UL1?
It is an unfiltered SINAMICS Power Module PM240-2 with an integrated braking chopper.
2. What input supply does 6SL3210-1PE12-3UL1 use?
The input is 3 AC, 380 … 480 V ±10 % at 47 … 63 Hz.
3. What output power is available at low and high overload?
Rated output power is 0.75 kW | 1.00 hp at low overload (LO) and 0.55 kW | 0.75 hp at high overload (HO).
4. Which terminals and motor cable lengths are supported?
The line side and motor end use plug-in screw terminals. Maximum motor cable length is 50 m for shielded cable or 100 m for unshielded cable.
5. What is included with the power module configuration?
The module is without Control Unit and operating unit.
