Product Overview
Technical Summary

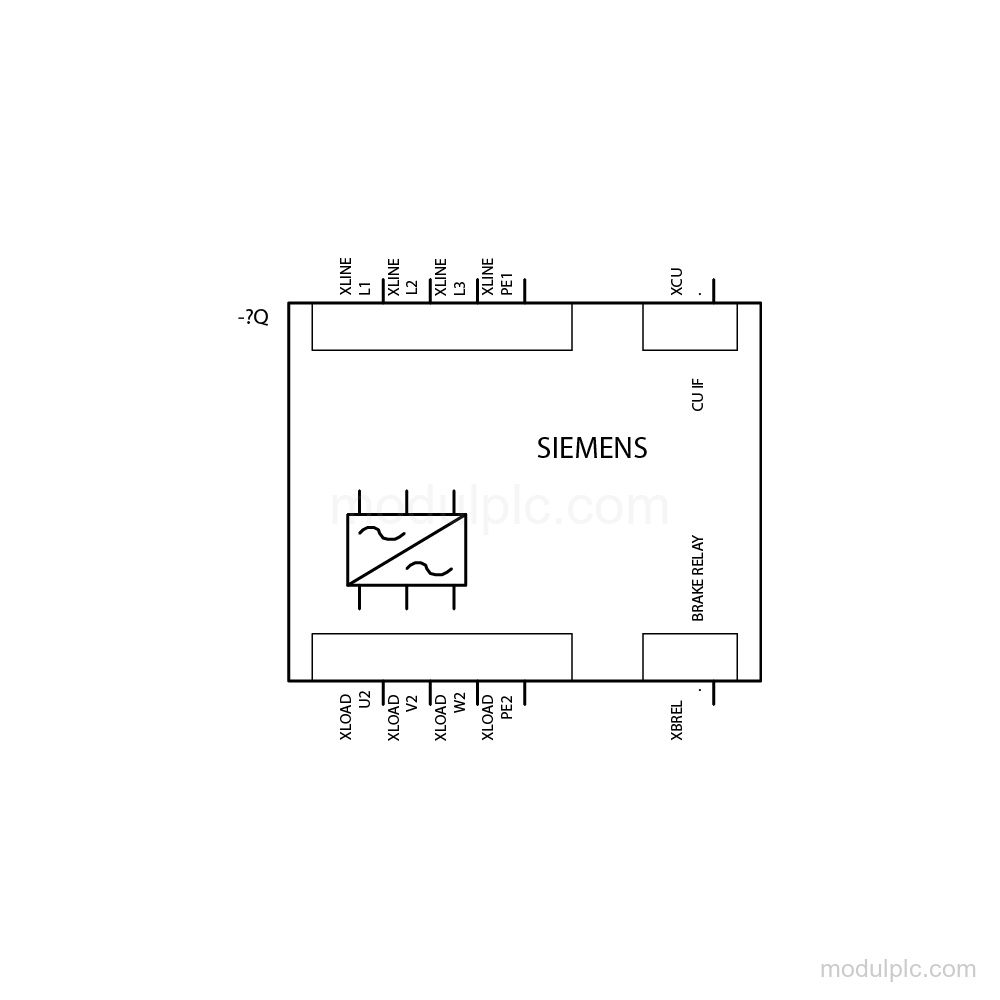

| Parameter | Value |
|---|---|
| Output power (HO) | 55.00 kW | 75.00 hp |
| Output power (LO) | 75.00 kW | 100.00 hp |
| Input voltage | 380 … 480 V ±10 % |
| Input frequency | 47 … 63 Hz |
| Maximum output current | 220.00 A |
| Vector control output frequency | 0 … 200 Hz |
| V/f control output frequency | 0 … 550 Hz |
| Line-side connection | M8 bolt |
| Motor-end connection | M8 bolt |
| Frame size | FSF |
| Degree of protection | IP20 / UL open type |
| Included exclusions | Without filter, control unit, and BOP |
Key Features
- Power and overload ratings: Rated output power: 75.00 kW | 100.00 hp (LO) and 55.00 kW | 75.00 hp (HO). High overload: 55 kW for 200% 3 s, 150% 57 s, and 100% 240 s at 0 … 50 °C; light overload: 75 kW for 150% 3 s, 110% 57 s, and 100% 240 s at 0 … 40 °C.
- Three-phase electrical data: Input: 3 AC, 380 … 480 V ±10 %, 47 … 63 Hz. Output: 3 AC, rated voltage 400V IEC | 480V NEC, maximum output current 220.00 A.
- Output control ranges: Output frequency for vector control: 0 … 200 Hz. Output frequency for V/f control: 0 … 550 Hz. Pulse frequency: 4 kHz.
- Connections and motor cable: Line-side and motor-end connections use M8 bolts with 25.00 … 120.00 mm2 (AWG 4 … AWG -3) conductor cross-section. Maximum motor cable length is 50 m (164.04 ft) shielded or 100 m (328.08 ft) unshielded.
- Installation and protection: Frame size: FSF. Degree of protection: IP20 / UL open type. Dimensions: 634 mm height, 350 mm width, and 316 mm depth; net weight: 35.00 kg (77.16 lb).
- Delivery configuration: The module is without filter, control unit, and BOP.
Frequently Asked Questions
1. What output power does the 6SL3225-0BE35-5UA0 provide?
It provides 55.00 kW | 75.00 hp for high overload and 75.00 kW | 100.00 hp for light overload.
2. What input supply does this power module use?
The input is 3 AC, 380 … 480 V ±10 % at 47 … 63 Hz.
3. What are the motor connection details?
The motor-end connection uses an M8 bolt and supports 25.00 … 120.00 mm2 (AWG 4 … AWG -3) conductor cross-section.
4. What is included in the configuration?
It is without filter, control unit, and BOP.
