Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SINAMICS G120 Power Module PM250 |
| Input supply | 3 AC, 380 … 480 V ±10 %, 47 … 63 Hz |
| Rated output power, HO | 45.00 kW | 60.00 hp |
| Rated output power, LO | 55.00 kW | 75.00 hp |
| Output current, HO | 90.00 A; maximum output current: 180.00 A |
| Output frequency | 0 … 200 Hz for vector control; 0 … 550 Hz for V/f control |
| Motor connection | M8 bolt; conductor cross-section 25.00 … 120.00 mm2 |
| Protection and frame size | IP20 / UL open type; FSF |
Applications
- Regenerative power conversion: The PM250 has a possibility of regeneration for regenerative power conversion.
- Motor output control: The module provides 3 AC output with vector-control and V/f-control frequency ranges for motor output control.
Key Features
- High-overload output: Rated power: 45.00 kW | 60.00 hp (HO); rated current: 90.00 A (HO).
- Light-overload output: Rated power: 55.00 kW | 75.00 hp (LO); rated current: 110.00 A (LO).
- Input supply: Input: 3 AC, 380 … 480 V ±10 %, 47 … 63 Hz; rated current: 84.00 A (HO) or 102.00 A (LO).
- Output control ranges: Output frequency: 0 … 200 Hz for vector control and 0 … 550 Hz for V/f control; pulse frequency: 4 kHz.

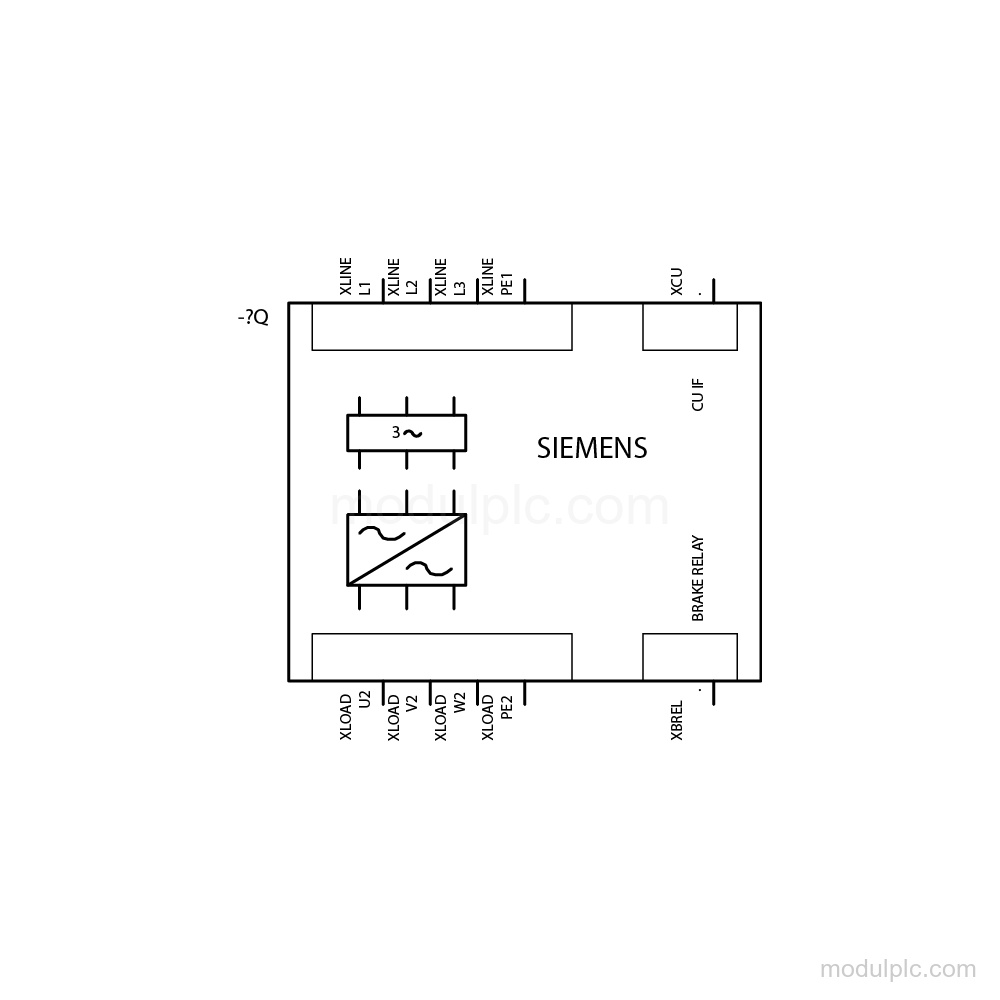

- Connections and cable length: Line-side and motor-end connections use M8 bolts with 25.00 … 120.00 mm2 conductors. Maximum motor cable length is 50 m shielded or 100 m unshielded.
- Installation and protection: Frame size: FSF; dimensions: 934 mm height × 350 mm width × 316 mm depth; protection: IP20 / UL open type. The control unit and BOP are not included.
Frequently Asked Questions
1. What is the high-overload output rating of 6SL3225-0BE34-5AA0?
The high-overload rated output is 45.00 kW | 60.00 hp, with a rated output current of 90.00 A.
2. What input supply does this Power Module use?
It uses 3 AC input at 380 … 480 V ±10 % and 47 … 63 Hz.
3. What output frequency ranges are supported?
The output frequency is 0 … 200 Hz for vector control and 0 … 550 Hz for V/f control.
4. How is the motor connection made?
The motor-end connection uses an M8 bolt with a 25.00 … 120.00 mm2 conductor cross-section. Maximum motor cable length is 50 m shielded or 100 m unshielded.
5. What is included in the configuration?
It is without the control unit and BOP.
