Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Output power (LO) | 45.00 kW | 60.00 hp |
| Output power (HO) | 37.00 kW | 50.00 hp |
| Input voltage | 380 … 480 V ±10 % |
| Input frequency | 47 … 63 Hz |
| Output frequency, vector control | 0 … 200 Hz |
| Output frequency, V/f control | 0 … 550 Hz |
| Maximum output current | 150.00 A |
| Integrated filter | Class A |
Key Features
- Power and overload ratings: Output power: 45.00 kW (60.00 hp) LO and 37.00 kW (50.00 hp) HO. Collected ratings specify high overload: 37 kW for 200% 3 s, 150% 57 s, 100% 240 s at 0 to +50 °C; light overload: 45 kW for 150% 3 s, 110% 57 s, 100% 240 s at 0 to +40 °C.
- Input electrical data: Input: 3 AC, 380 … 480 V ±10 %, 47 … 63 Hz. Rated current is 84.00 A for LO and 70.00 A for HO.
- Output electrical data: Output: 3 AC, rated voltage 400V IEC | 480V NEC. Rated current is 90.00 A for LO and 75.00 A for HO; maximum output current is 150.00 A.
- Control frequency ranges: Output frequency is 0 … 200 Hz for vector control and 0 … 550 Hz for V/f control. Pulse frequency is 4 kHz.

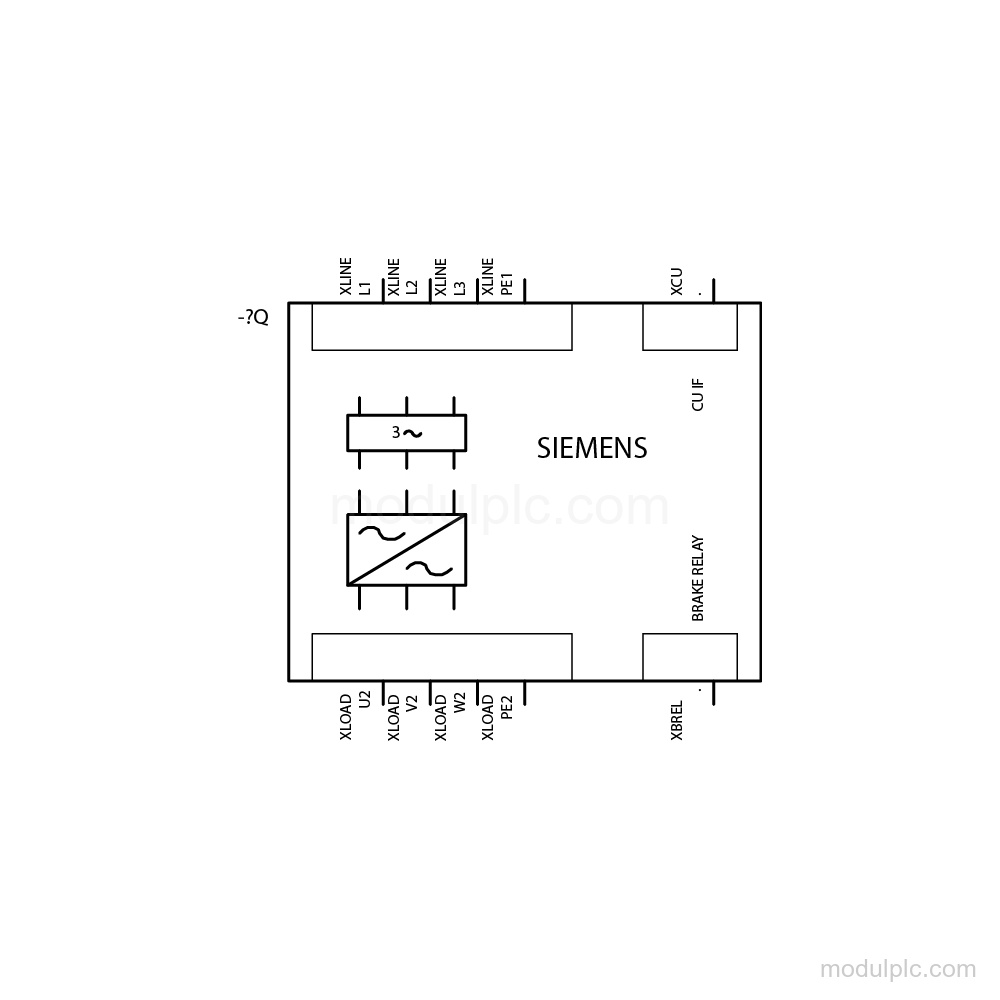

- Connections and motor cable: Line-side and motor-end connections use M6 bolts with 10.00 … 50.00 mm2 (AWG 8 … AWG 1) conductors. Maximum motor cable length is 50 m (164.04 ft) shielded or 100 m (328.08 ft) unshielded.
- Construction and protection: Frame size: FSE. Protection: IP20 / UL open type. Dimensions are 275 mm wide, 635 mm high and 204 mm deep; net weight is 21.00 kg (46.30 lb).
Frequently Asked Questions
1. What type of module is Siemens 6SL3225-0BE33-7AA0?
It is a SINAMICS G120 PM250 power module with a built-in Class A filter and regeneration possibility.
2. What are the LO and HO output ratings?
LO output is 45.00 kW (60.00 hp) with 90.00 A rated current. HO output is 37.00 kW (50.00 hp) with 75.00 A rated current.
3. What input supply does the module use?
The input is 3 AC, 380 … 480 V ±10 % at 47 … 63 Hz.
4. What connections and conductor sizes are provided?
The line side and motor end use M6 bolts and accept 10.00 … 50.00 mm2 (AWG 8 … AWG 1) conductors.
5. Is the control unit and BOP included?
It is without the control unit and BOP.
