Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Input supply | 3 AC, 380 … 480 V ±10 %, 47 … 63 Hz |
| Rated output power (LO) | 30.00 kW | 40.00 hp |
| Rated output power (HO) | 22.00 kW | 30.00 hp |
| Rated output current (LO) | 60.00 A |
| Rated output current (HO) | 45.00 A |
| Maximum output current | 90.00 A |
| Output frequency for vector control | 0 … 200 Hz |
| Output frequency for V/f control | 0 … 550 Hz |
| Line-side and motor-end connection | M6 bolt |
| Conductor cross-section | 10.00 … 35.00 mm2 (AWG 8 … AWG 2) |
| Protection | IP20 / UL open type |
| Configuration exclusions | Without filter, control unit and BOP |
Key Features
- Power module configuration: SINAMICS G120 POWER MODULE PM250 without filter, without control unit and BOP, with possibility of regeneration.
- Input supply: Input: 3 AC, 380 … 480 V ±10 %, 47 … 63 Hz.
- Output power: Rated output power: 30.00 kW | 40.00 hp (LO) and 22.00 kW | 30.00 hp (HO).
- Output frequency: Output frequency: 0 … 200 Hz for vector control and 0 … 550 Hz for V/f control.

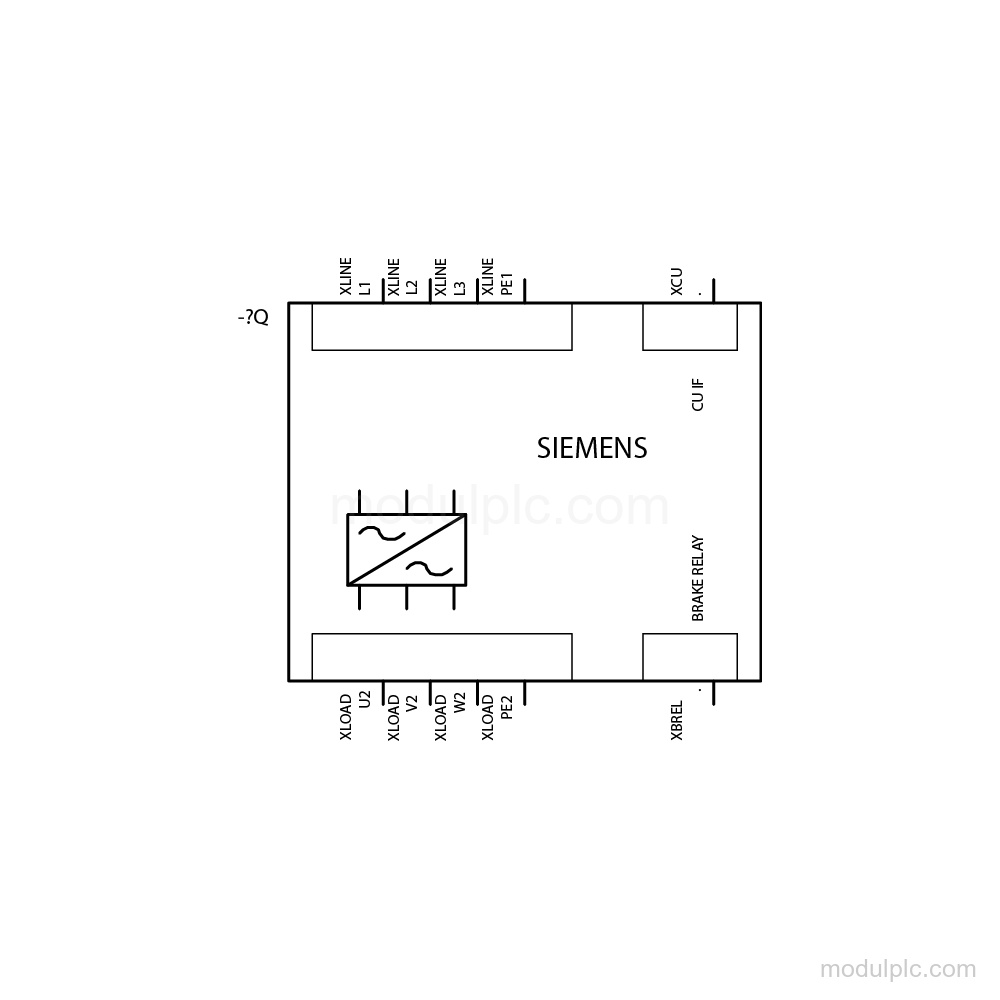

- Connections and motor cable: Line-side and motor-end connections use M6 bolts with 10.00 … 35.00 mm2 (AWG 8 … AWG 2) conductors. Maximum motor cable length is 50 m (164.04 ft) shielded or 100 m (328.08 ft) unshielded.
- Protection and dimensions: Protection: IP20 / UL open type. Frame size: FSD; dimensions: 419 mm height × 275 mm width × 204 mm depth; net weight: 13.00 kg (28.66 lb).
Frequently Asked Questions
1. What is the output power of Siemens 6SL3225-0BE32-2UA0?
Rated output power is 30.00 kW | 40.00 hp (LO) or 22.00 kW | 30.00 hp (HO).
2. What input supply does this power module use?
It uses 3 AC input at 380 … 480 V ±10 % and 47 … 63 Hz.
3. What output frequency ranges are supported?
Output frequency is 0 … 200 Hz for vector control and 0 … 550 Hz for V/f control.
4. What connections and conductor sizes are provided?
The line side and motor end use M6 bolts and 10.00 … 35.00 mm2 (AWG 8 … AWG 2) conductors.
5. What is included in this configuration?
It is without filter, control unit and BOP.
